Antitheft and Alarm Systems
Antitheft and Alarm Systems

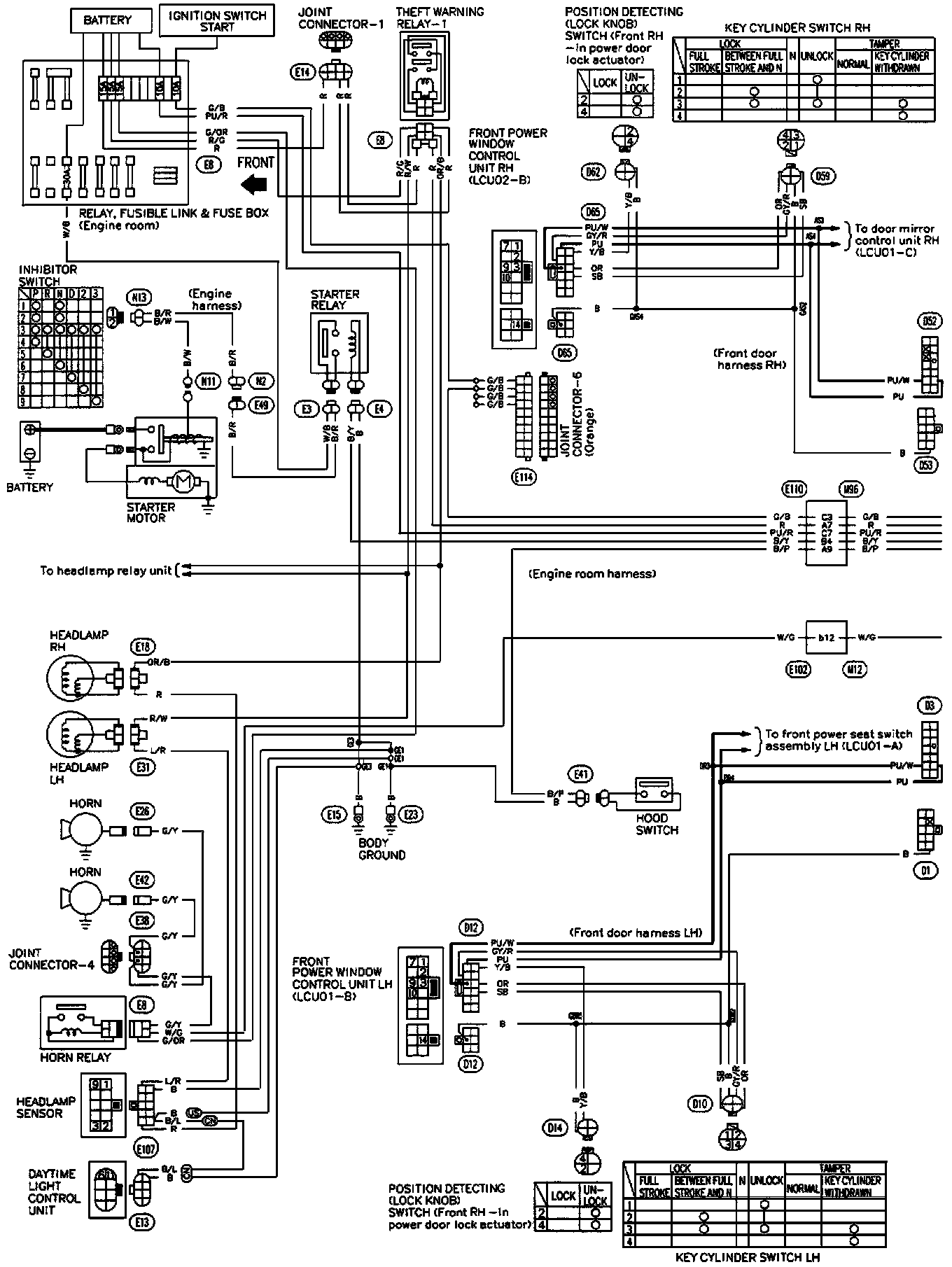

Theft Waning System: LAN: Wiring Diagram (Part 1 Of 2):
Theft Waning System: LAN: Wiring Diagram (Part 2 Of 2):
