Keyless Entry

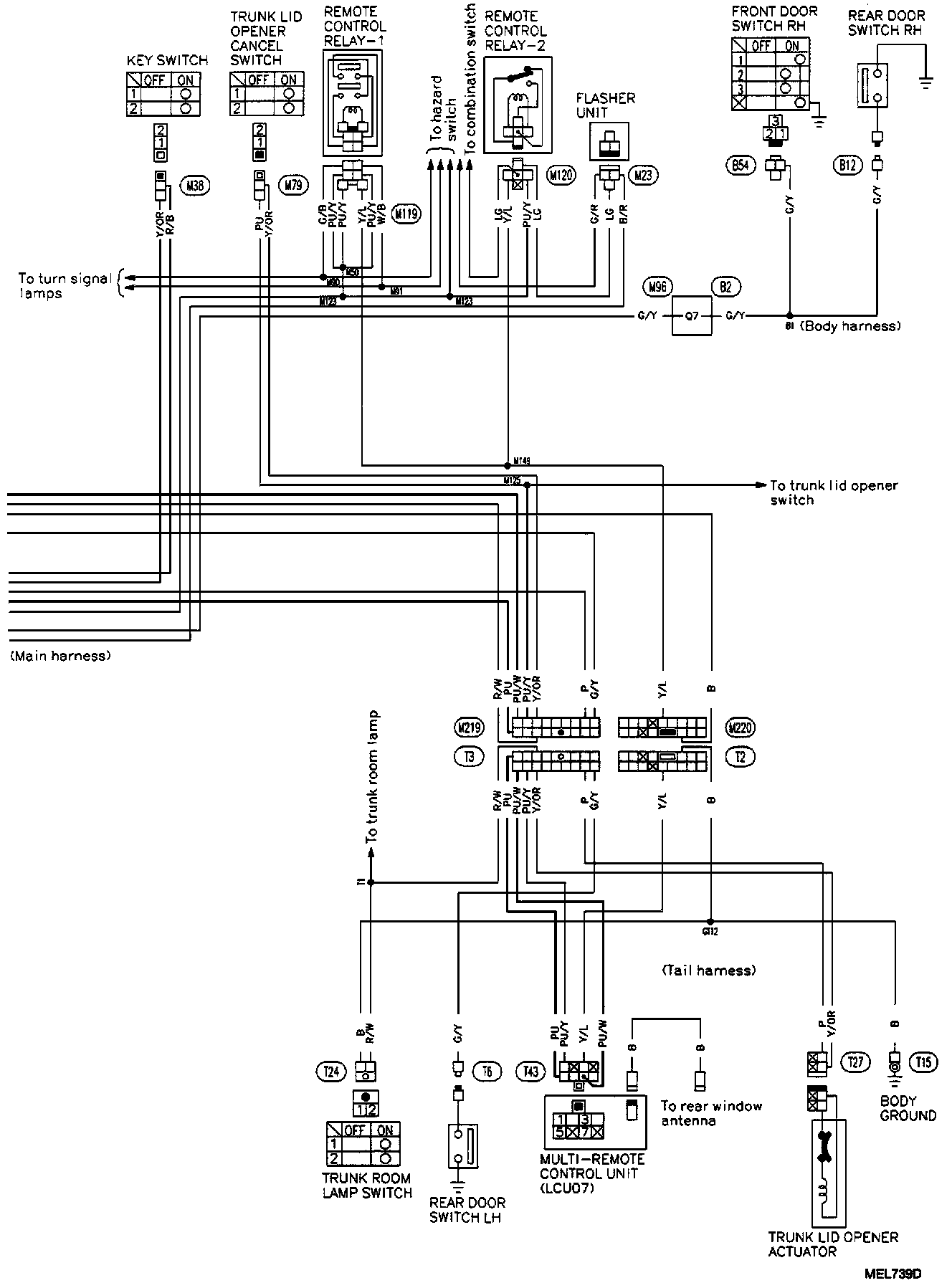

Multi-Remote Control System: Wiring Diagram (Part 1 Of 2):

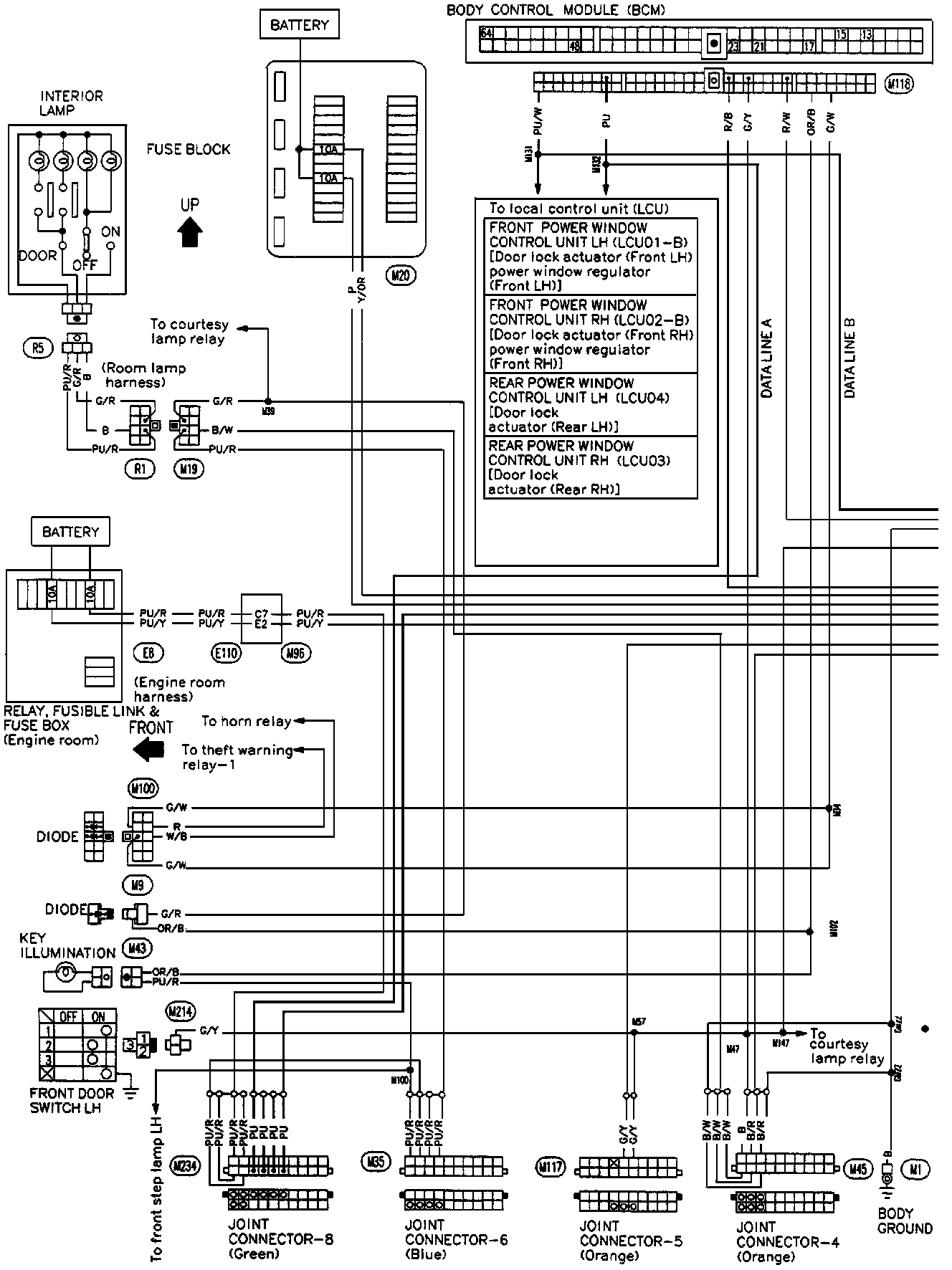

Multi-Remote Control System: Wiring Diagram (Part 2 Of 2):
