Timer/Control Unit, Accessory Control
Timer/Control Unit, Accessory Control

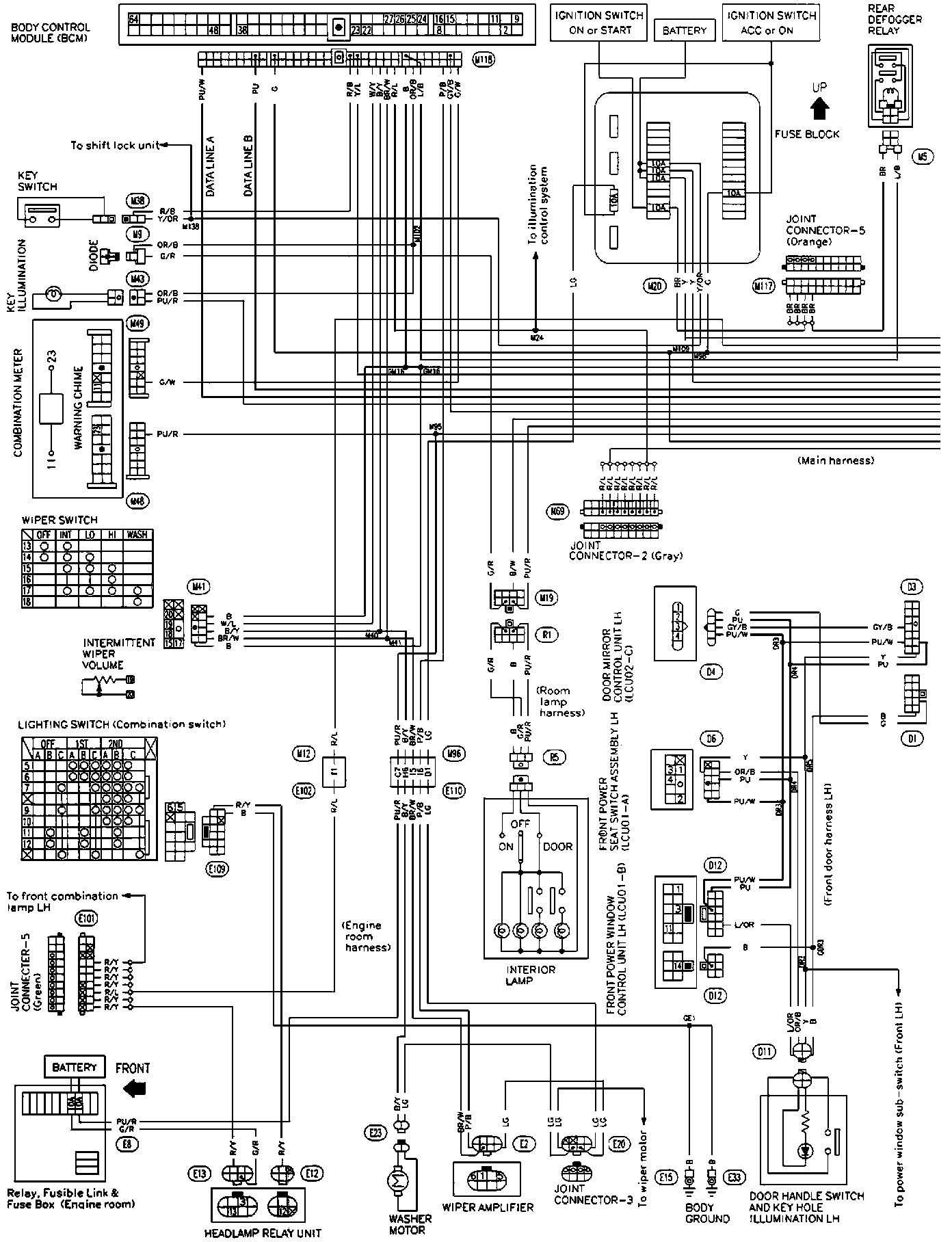

Time Control System: LAN: Wiring Diagram (Part 1 Of 2):
Time Control System: LAN: Wiring Diagram (Part 2 Of 2):
