Fog/Driving Lamp: Adjustments

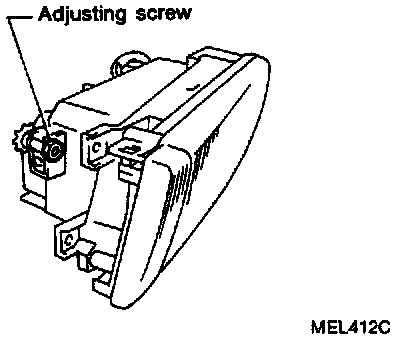

Fog Lamp Aiming Adjustment:

^ Adjust fog lamp so that upper edge of high intensity zone is within the acceptable range as shown.
^ Dotted lines in illustration show center of fog lamp
"H" Horizontal center line of fog lamp
"WL" Distance between each fog lamp center
