Circuit Breaker: Description and Operation

Circuit Breaker:

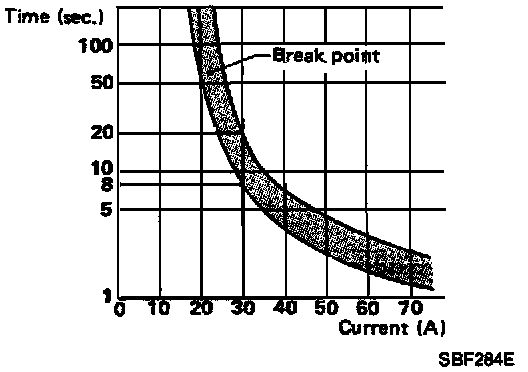

For example when current is 30 A, the circuit is broken within 8 to 20 seconds.
Circuit breakers are used in the following systems.
^ Power window (LAN)
^ Power door lock (LAN)
^ Electric sun roof
^ Power seat (LAN)
