Exhaust Gas Recirculation: Testing and Inspection
EGR Non-DTC Chart:
EGR Non-DTC Chart:

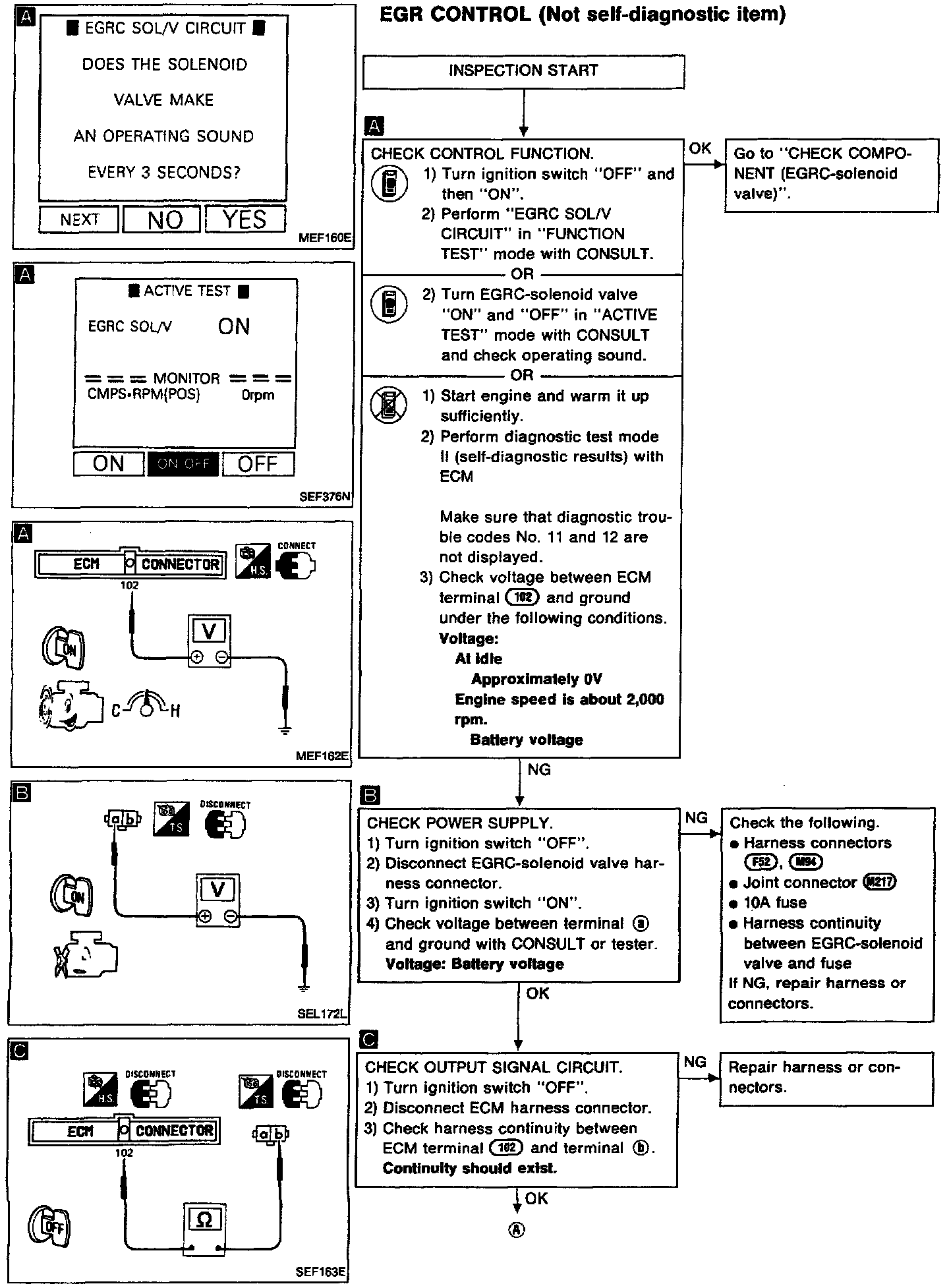

DIAGNOSTIC CHART
EGR Control:
CIRCUIT DIAGRAM

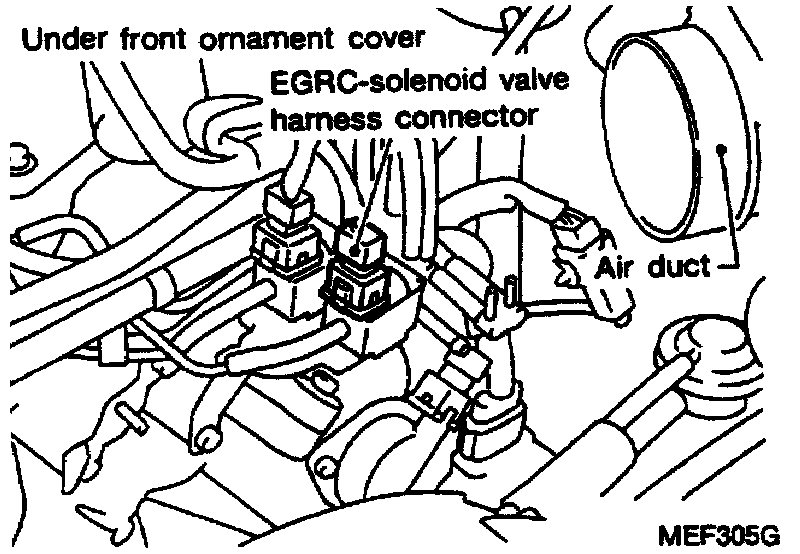

EGRC-Solenoid Valve Harness Connector:
HARNESS LAYOUT
