Electrical Diagrams

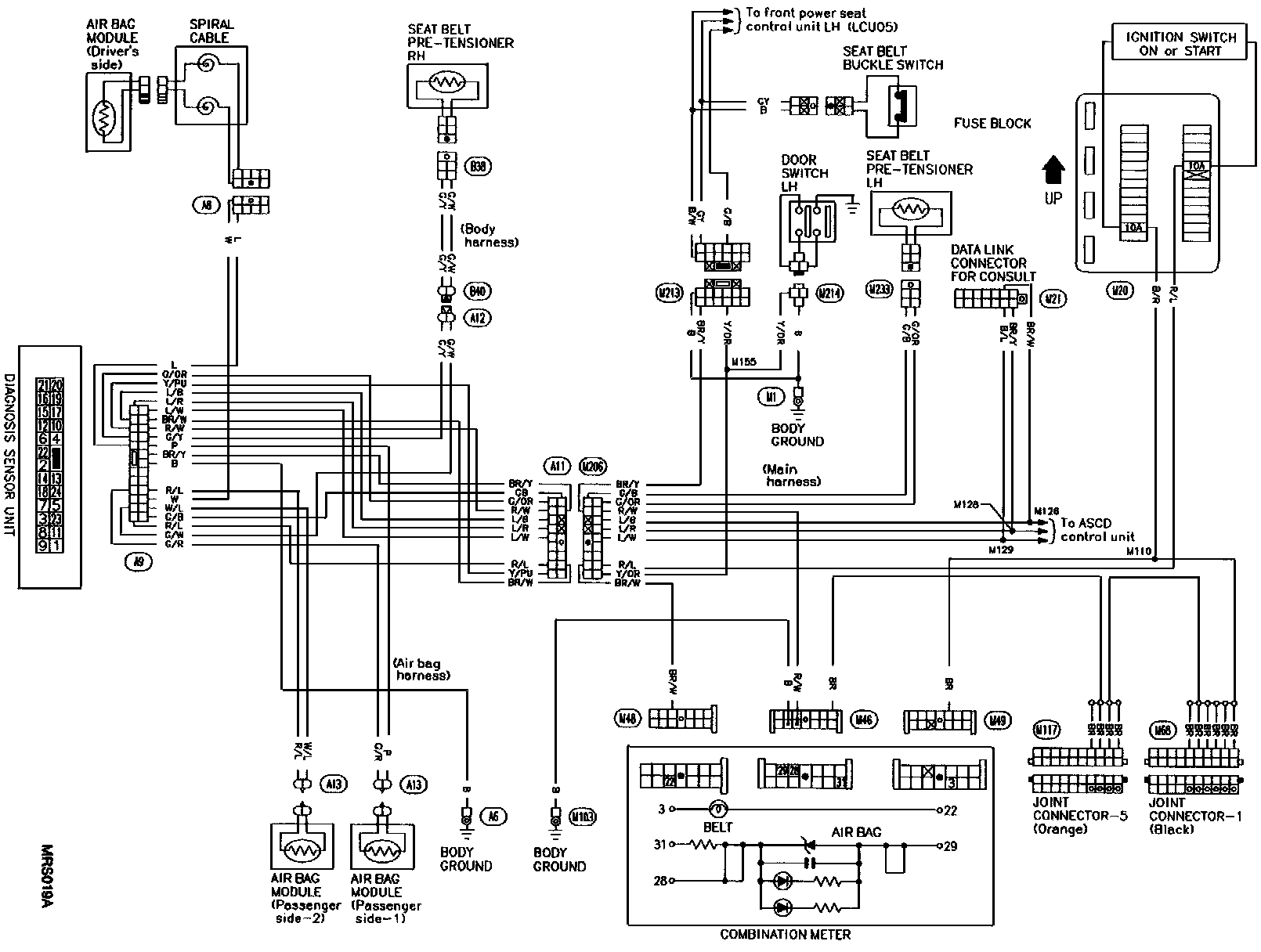

Wiring Diagram:

CAUTION:
^ Do not use a circuit tester to check SRS "Air Bag" harness connectors; otherwise, unexpected deployment may occur. The wiring harness and connectors have yellow outer insulation for easy identification.
^ Do not attempt to repair1 splice or modify the SRS "Air Bag" wiring harness. If the harness is damaged, replace it with a new one.
^ Keep ground portion clean.
