Engine Control Harness
Engine Control Harness

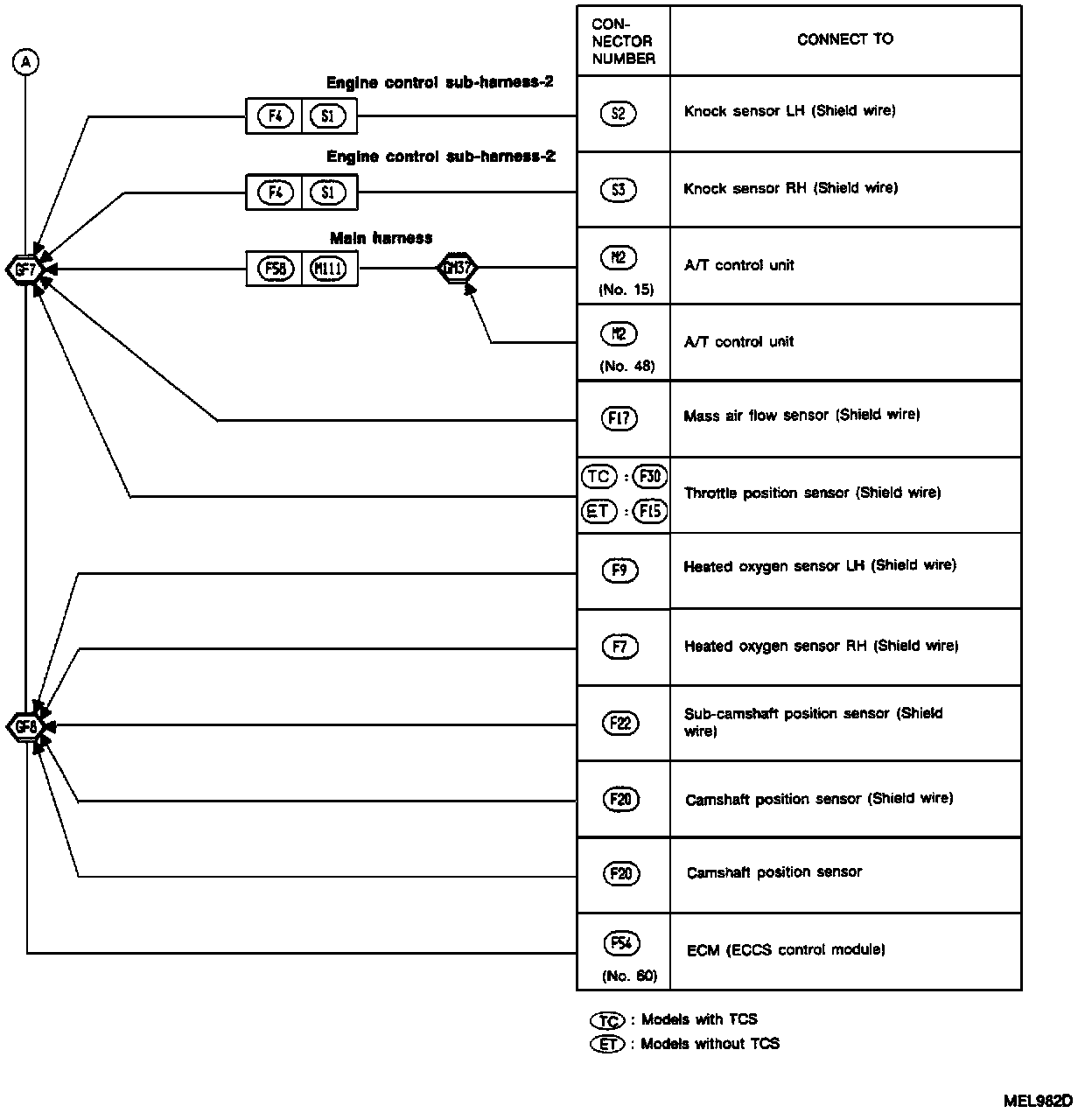

Engine Control Harness (Part 1 Of 2):
Engine Control Harness (Part 2 Of 2):
