Q45 V8-4494cc 4.5L DOHC (VH45)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Locations
>>

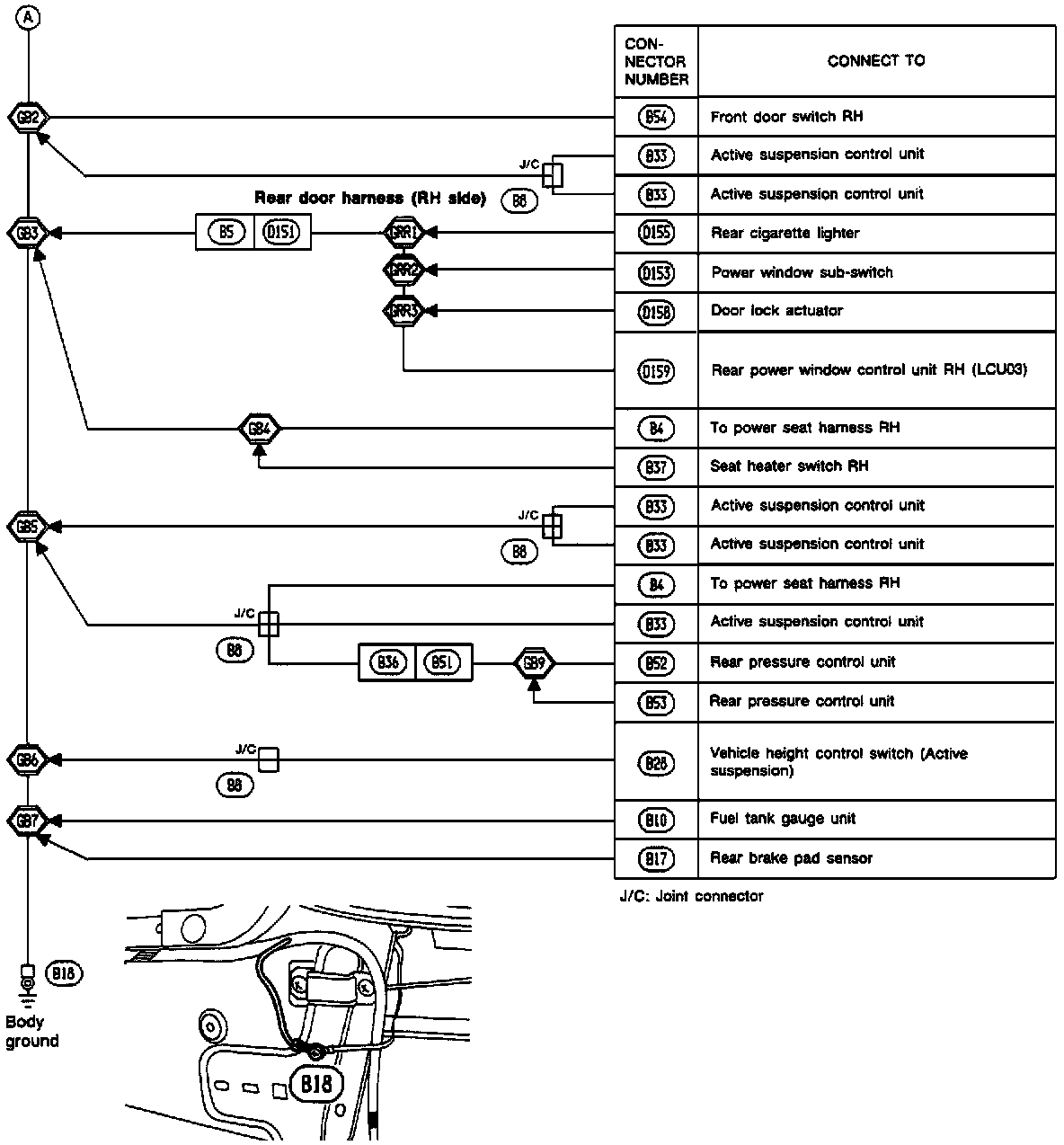

Main Harness (RH Side)
Main Harness (RH Side)
Main Harness (RH Side) (Part 1 Of 2):
Main Harness (RH Side) (Part 2 Of 2):
