Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
1995
>>
Q45 V8-4494cc 4.5L DOHC (VH45)
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Heated Glass Element
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

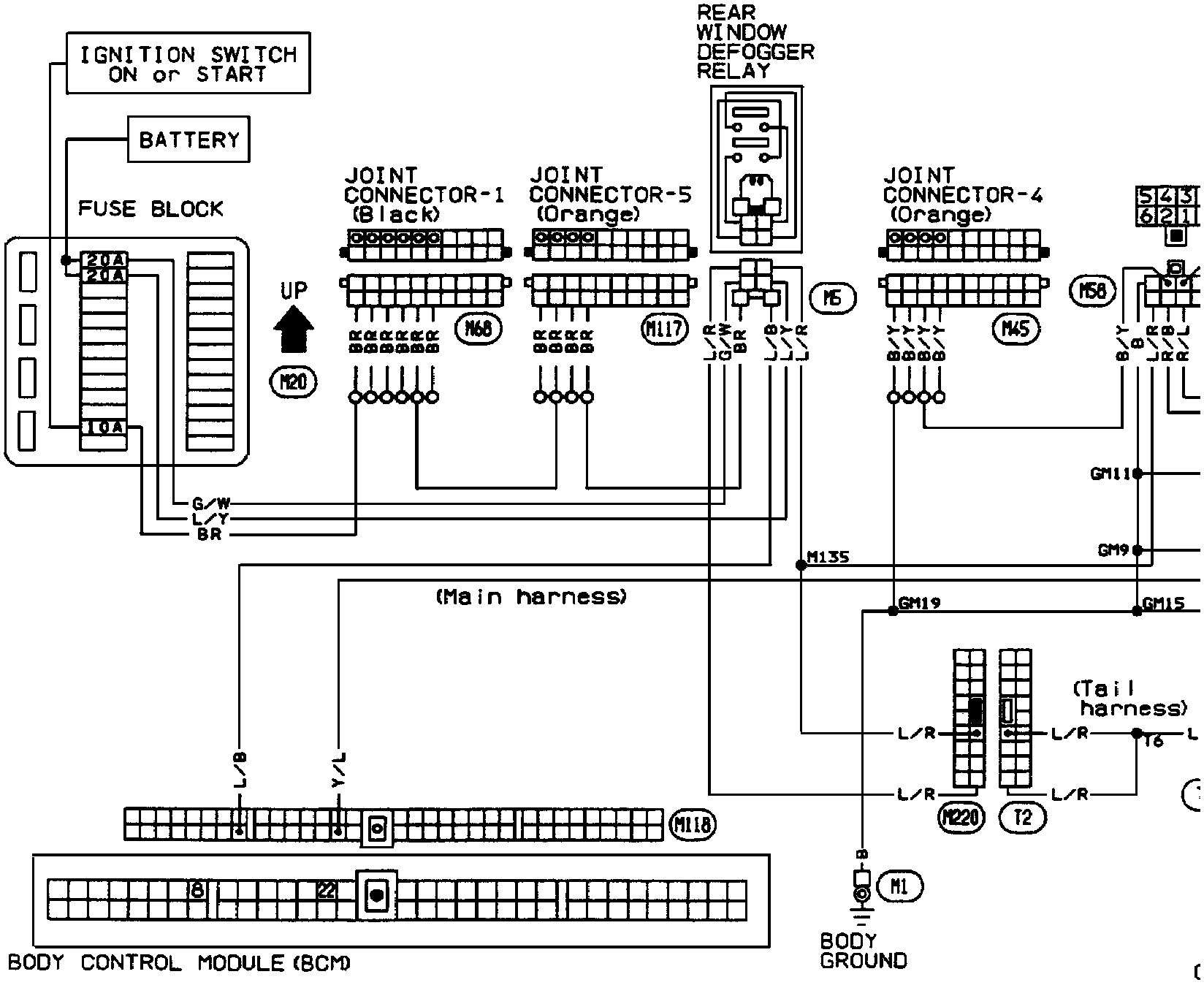

RRear Window Defogger: Wiring Diagram:
