Infiniti
>>
1995
>>
Q45 V8-4494cc 4.5L DOHC (VH45)
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

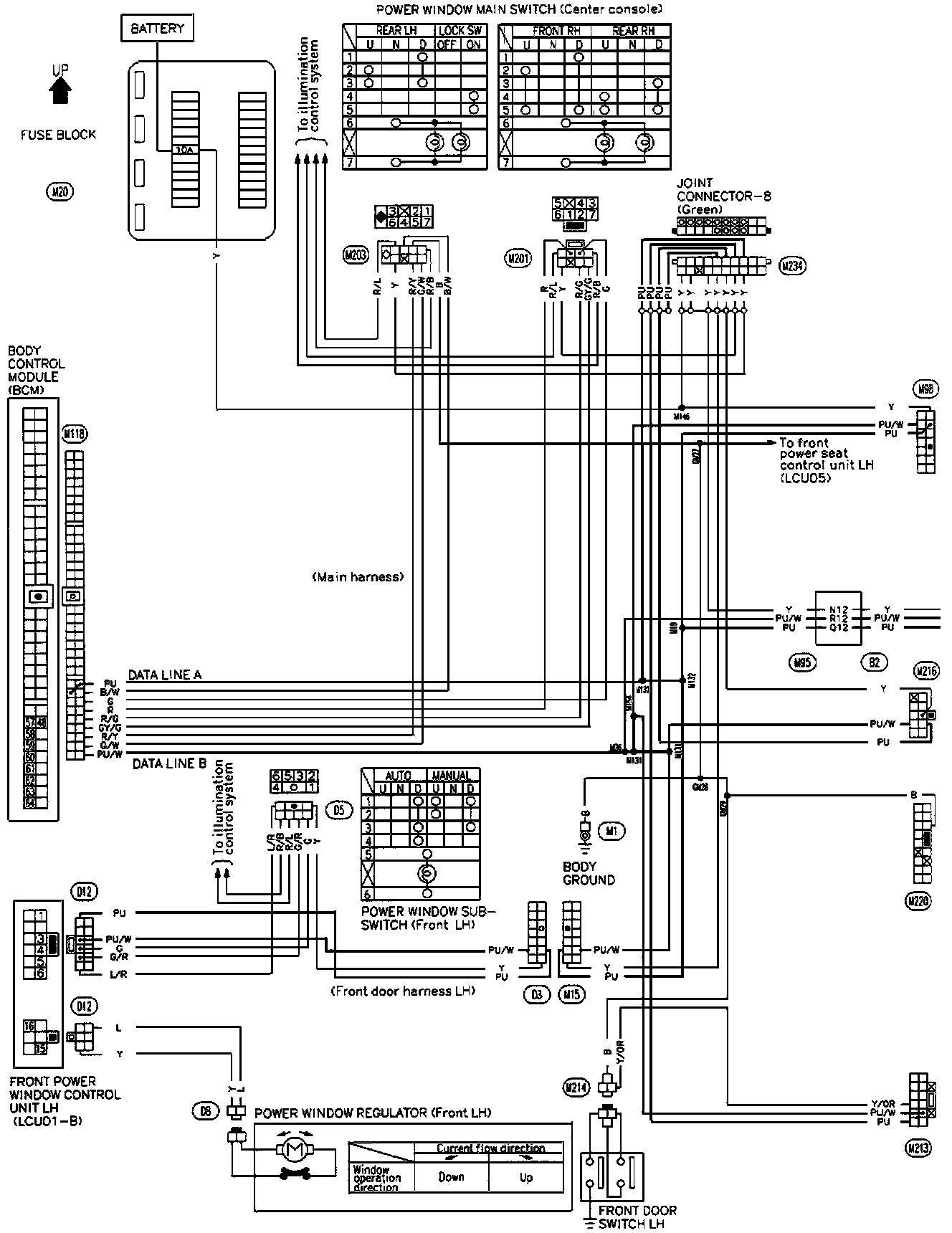

Power Window: LAN (Part 1 Of 2):

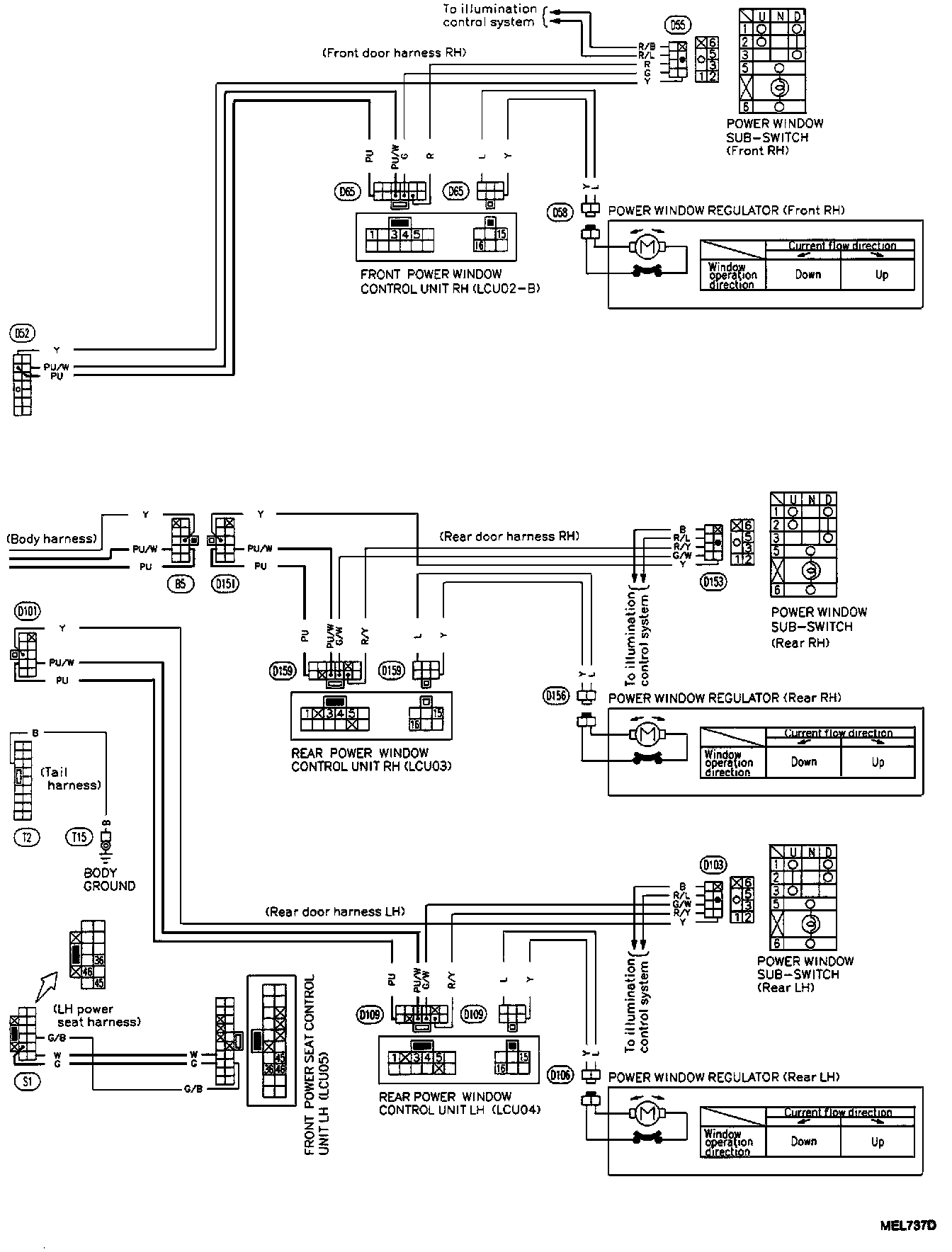

Power Window: LAN (Part 2 Of 2):
