ASCD Actuator and ASCD Pump

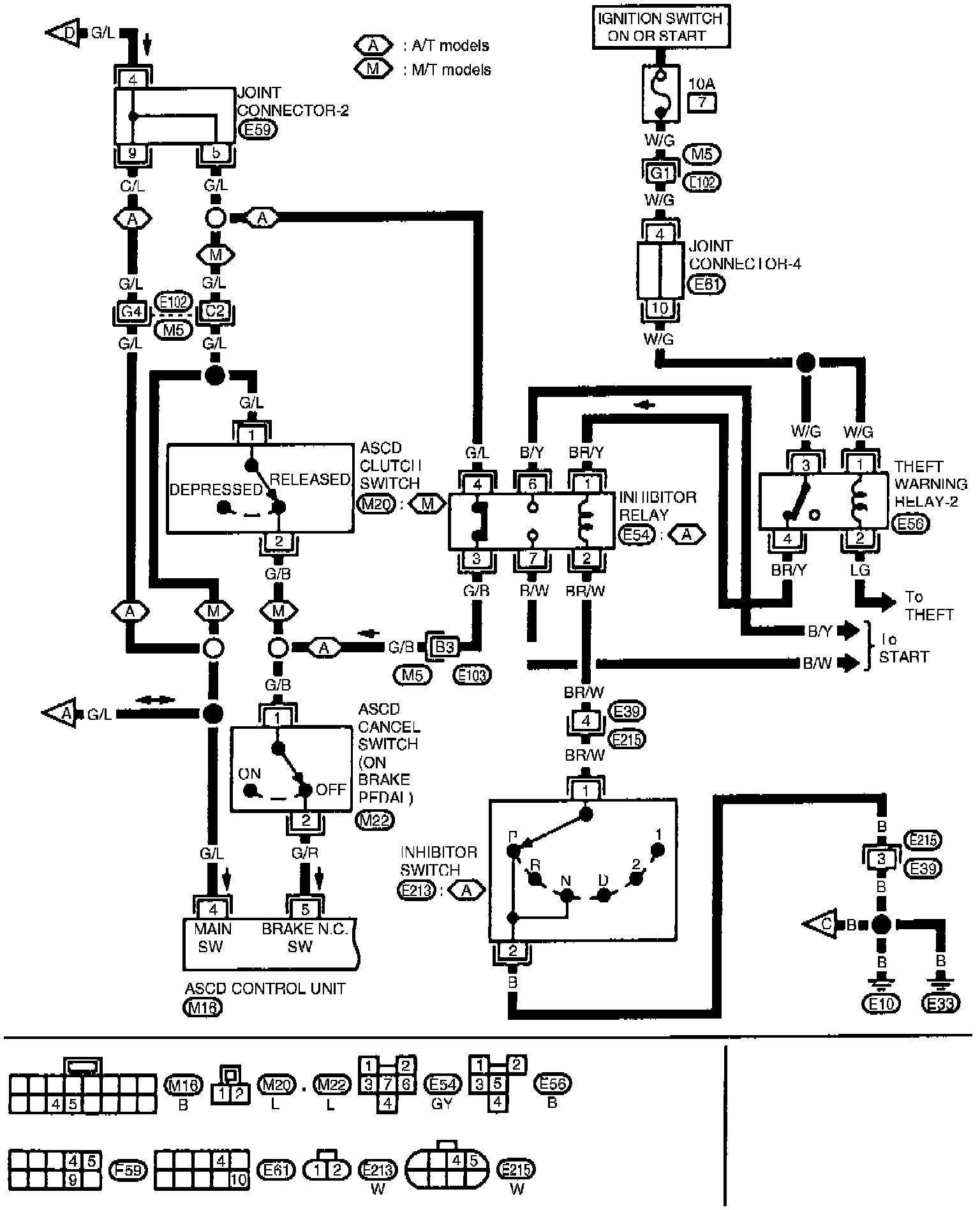

Fig. 6 Speed control wiring diagram (Part 1 of 5):

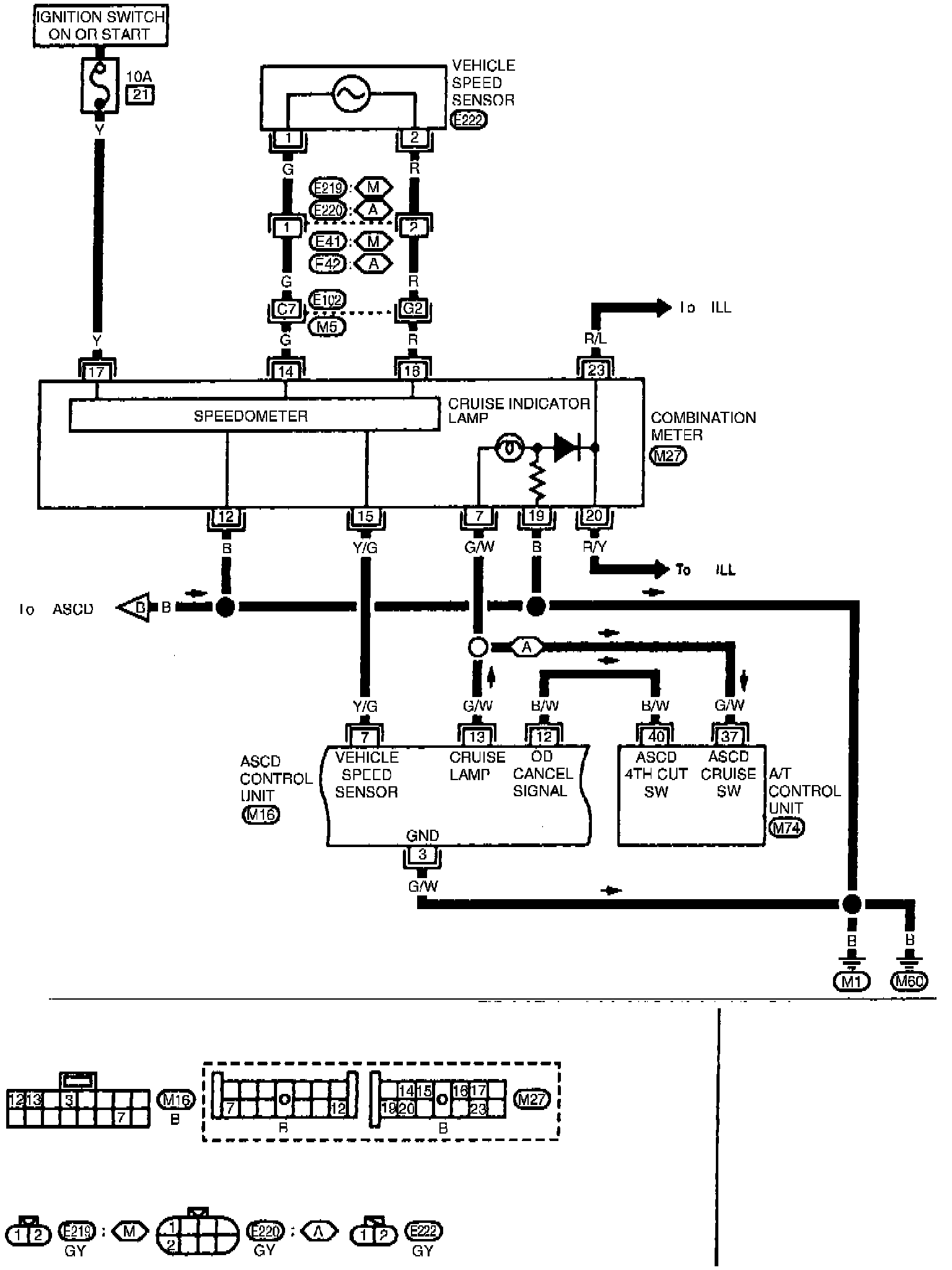

Fig. 6 Speed control wiring diagram (Part 2 of 5):

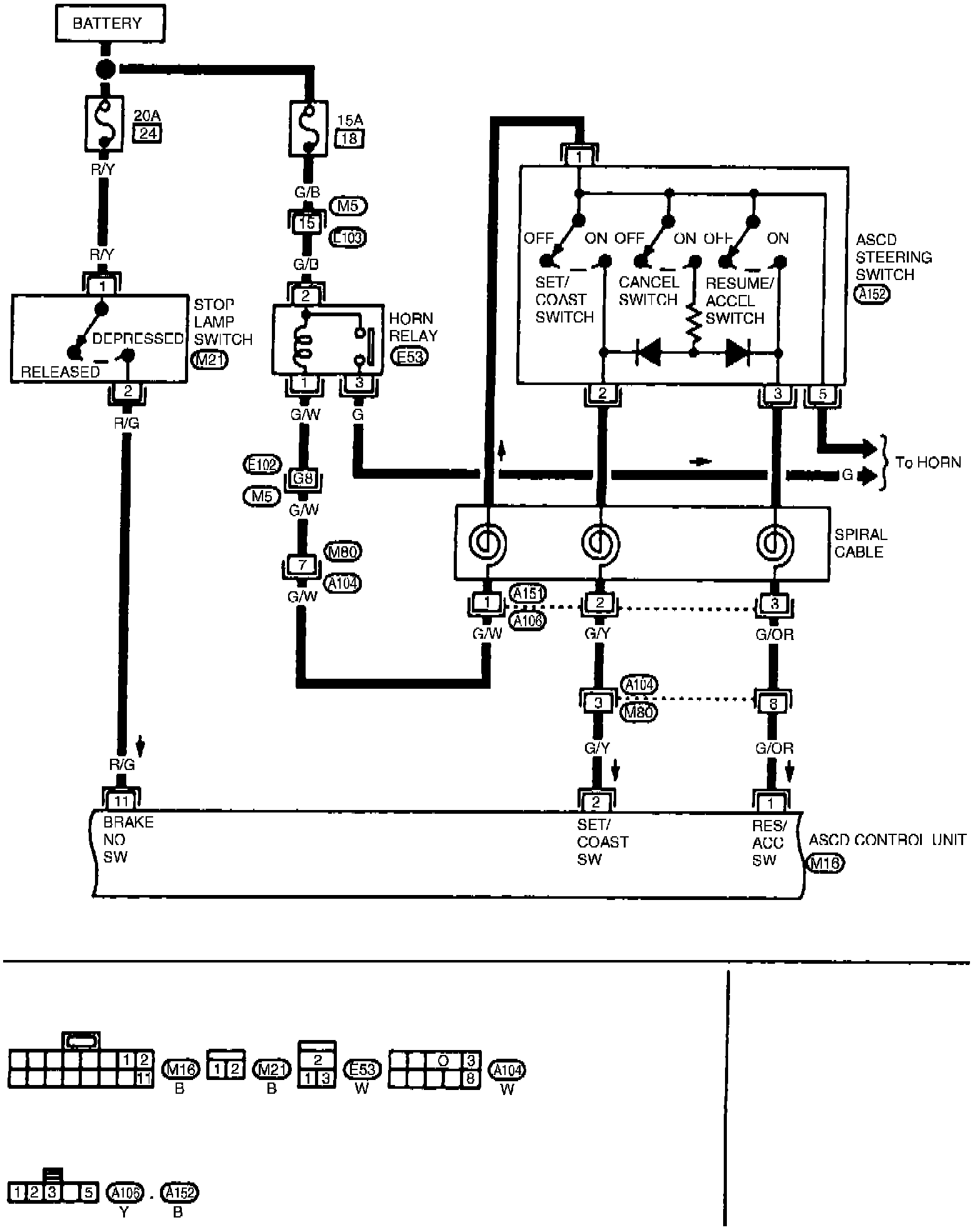

Fig. 6 Speed control wiring diagram (Part 3 of 5):

Fig. 6 Speed control wiring diagram (Part 4 of 5):

Fig. 6 Speed control wiring diagram (Part 5 of 5):

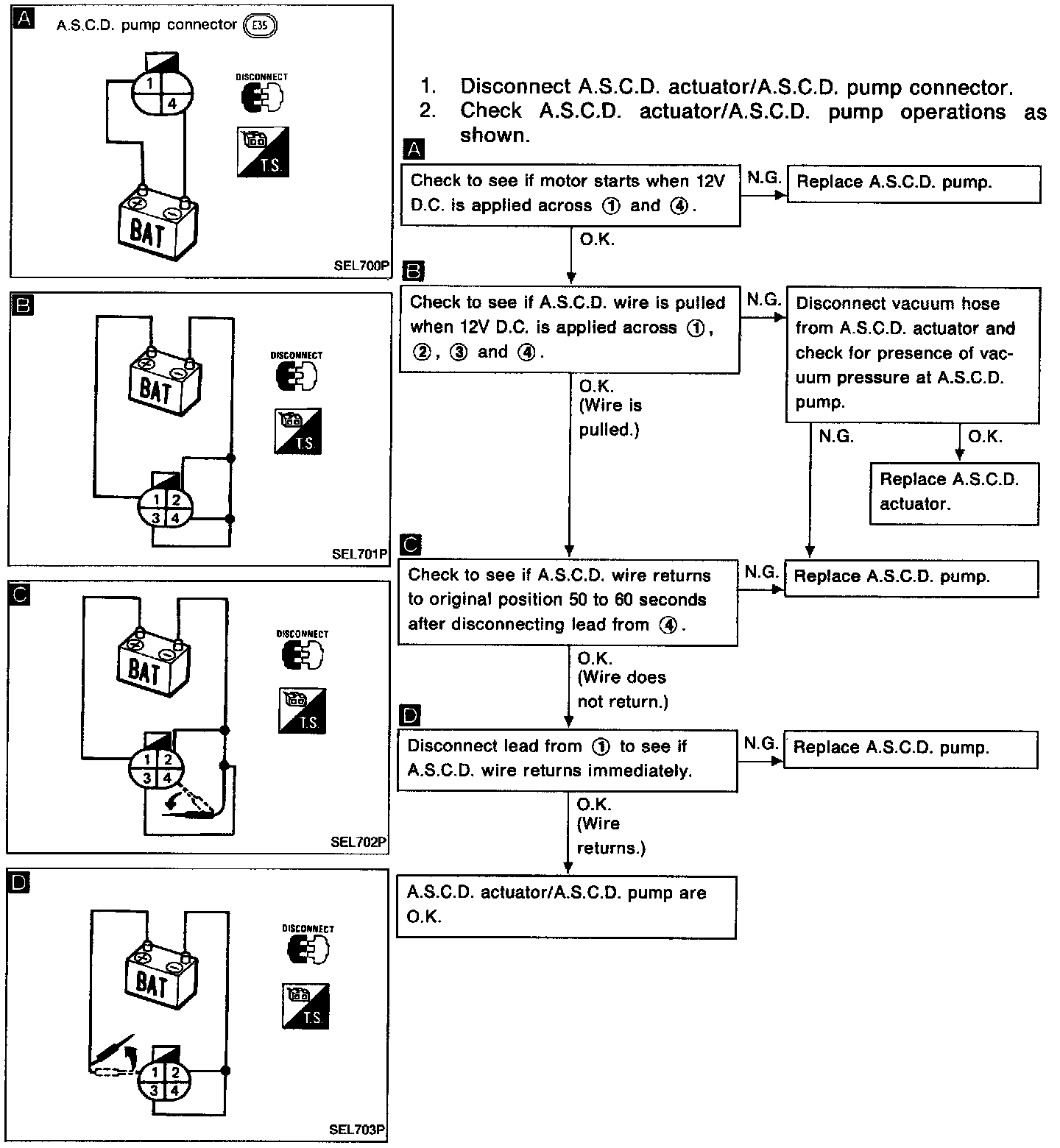

Fig. 15 Electrical Component Inspection, ASCD Actuator & Pump:
