ASCD Main Switch

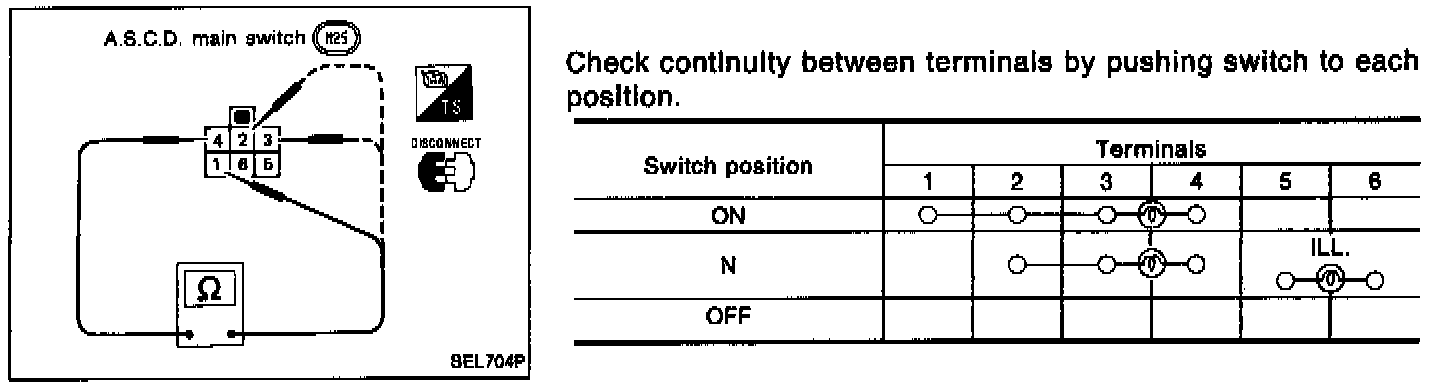

Fig. 53 ASCD main switch test:




When testing ASCD main switch, refer to Fig. 53.
