ABS Wiring Circuit

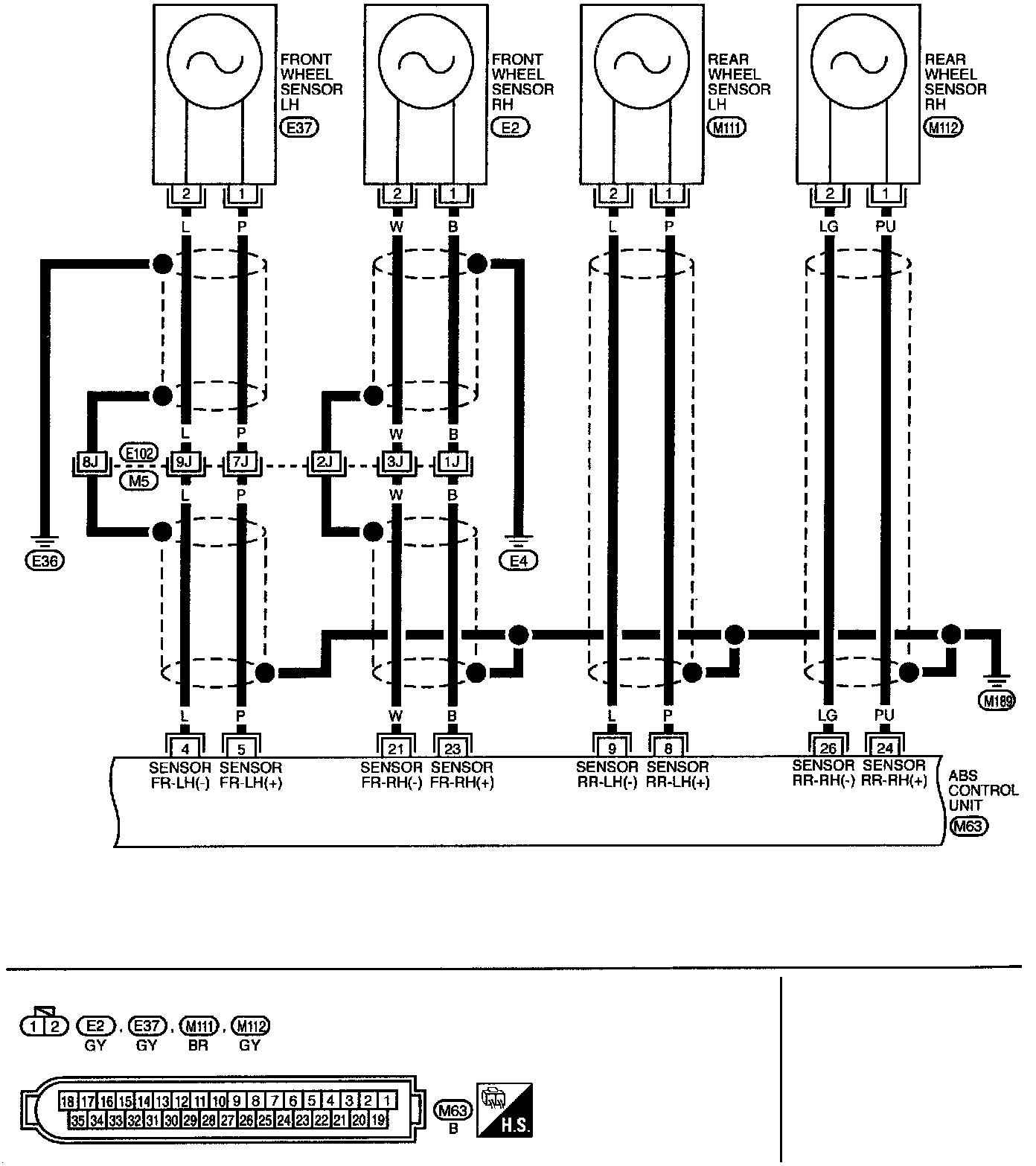

Fig. 19 ABS Wiring Circuit (Part 1 Of 4):

Part 1 of 4

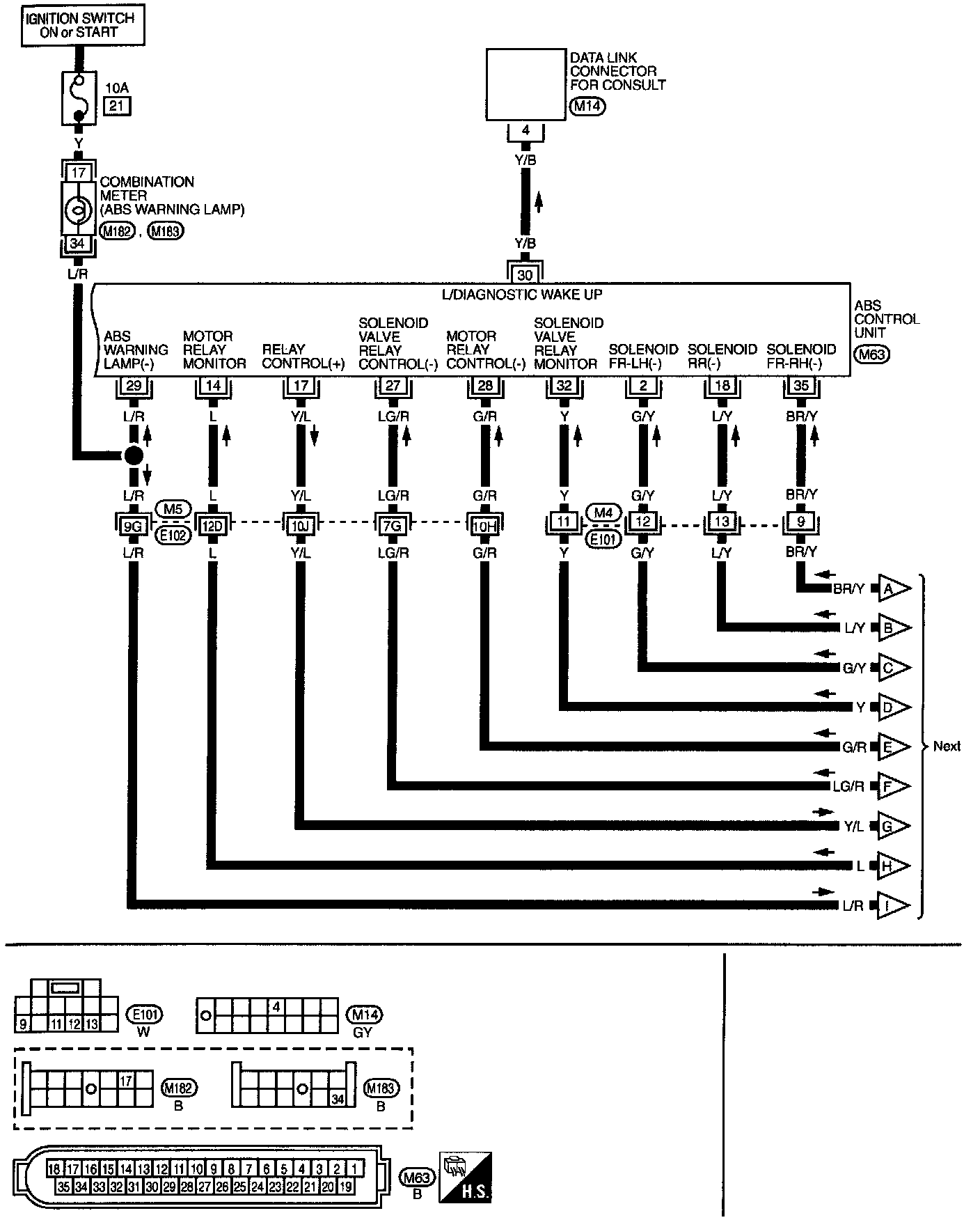

Fig. 19 ABS Wiring Circuit (Part 2 Of 4):

Part 2 of 4

Fig. 19 ABS Wiring Circuit (Part 3 Of 4):

Part 3 of 4

Fig. 19 ABS Wiring Circuit (Part 4 Of 4):

Part 4 of 4
