Home >> Infiniti >> 1996 >> G20 L4-2.0L (SR20DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Name >> EC-EGRC1

EC-EGRC1

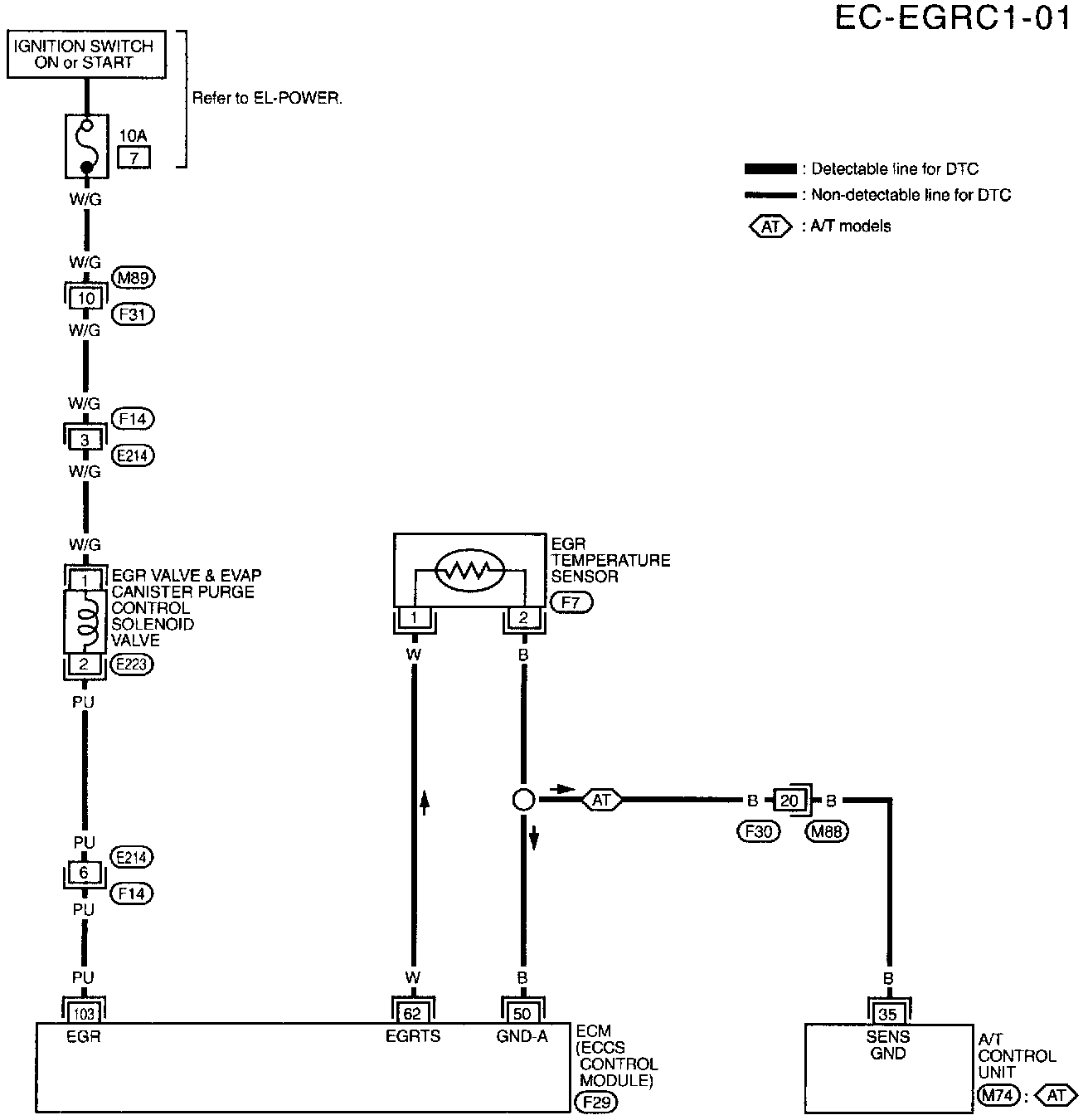

EC-EGRC1-01 EGR Function (DTC: 0302):
