Home >> Infiniti >> 1996 >> G20 L4-2.0L (SR20DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Name >> EC-F/PUMP

EC-F/PUMP

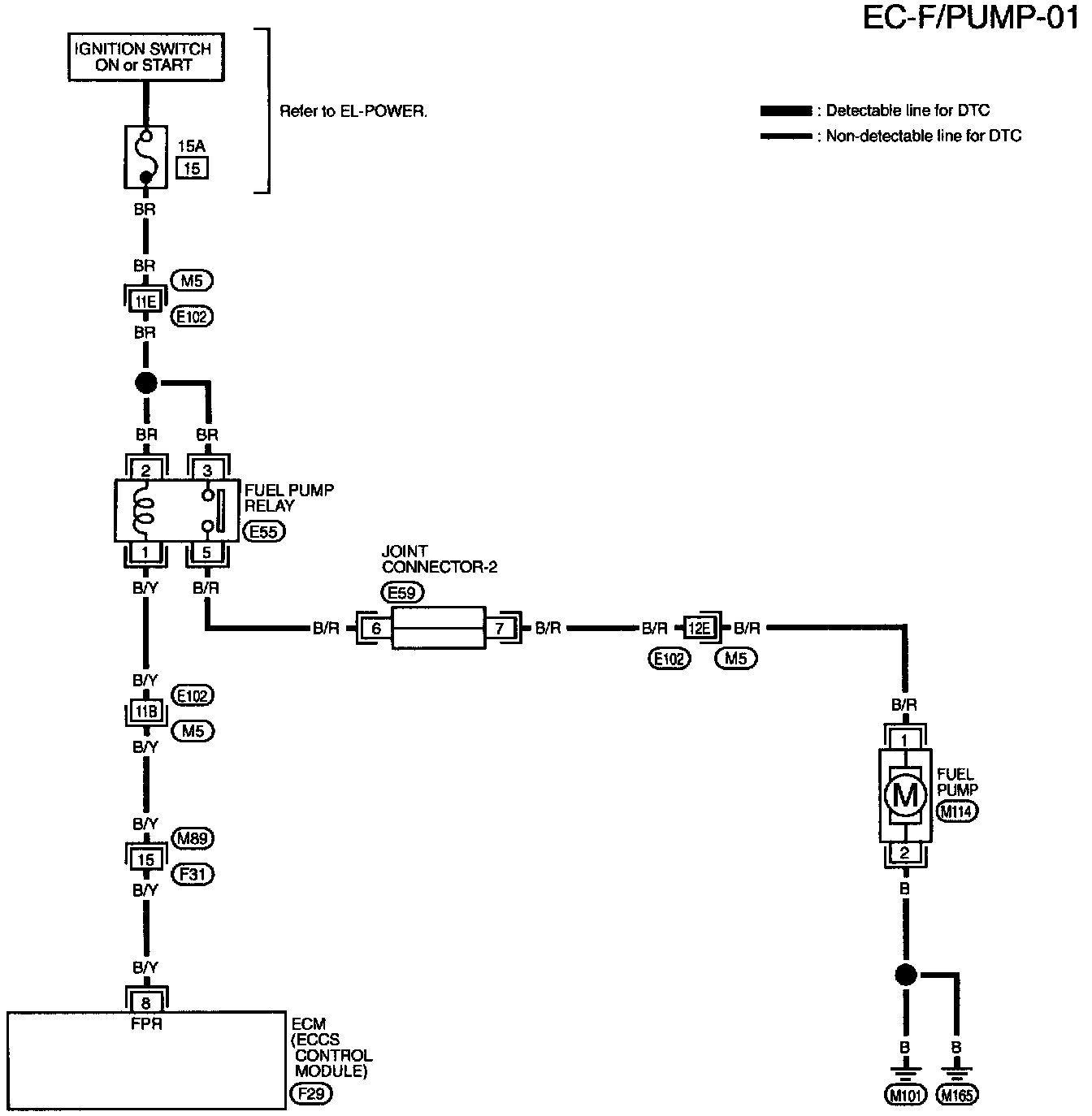

EC-F/PUMP-01 Fuel Pump:
