RS-SRS

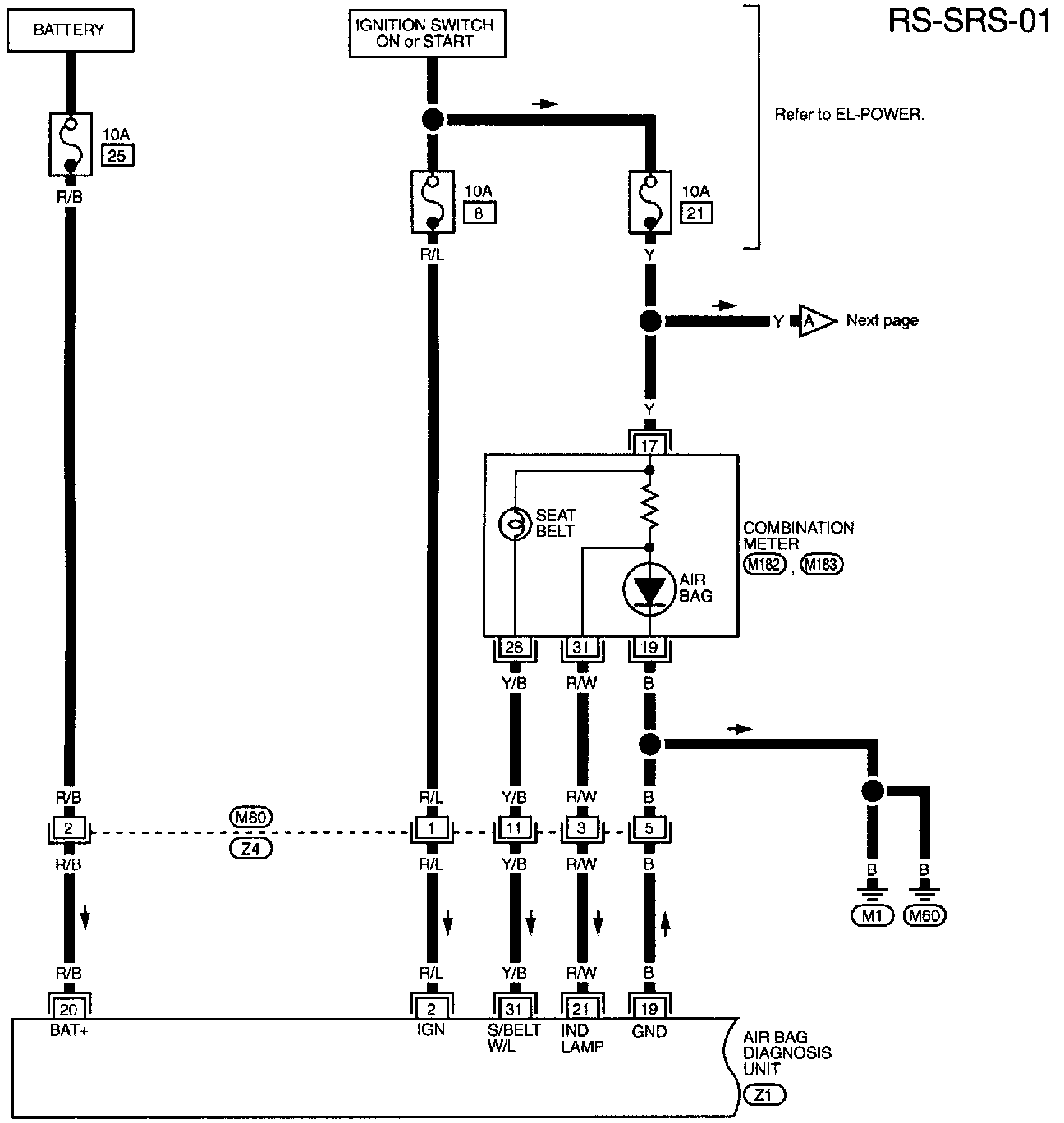

RS-SRS-01 Supplemental Restraint System (Part 1 Of 4):

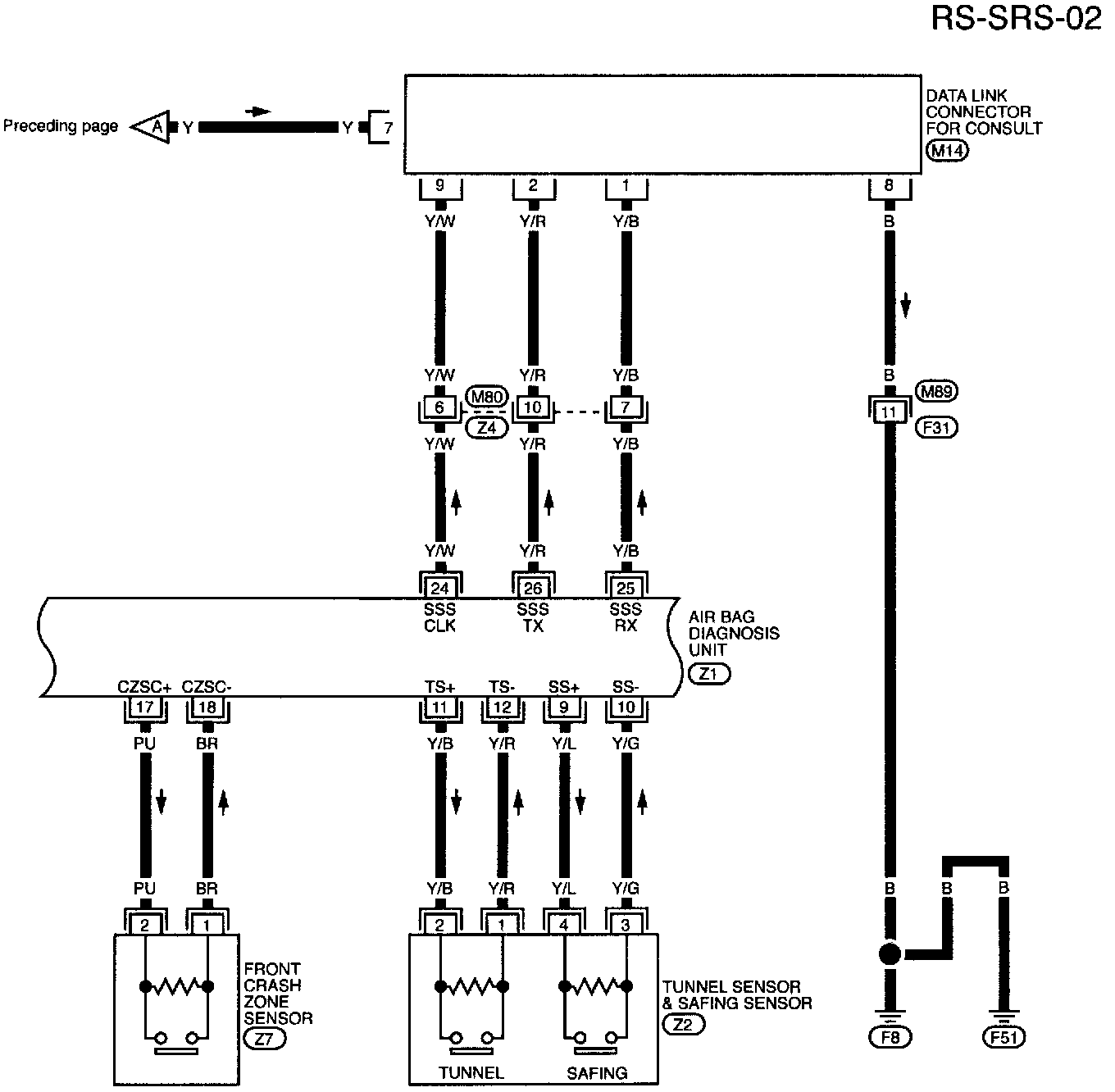

RS-SRS-02 Supplemental Restraint System (Part 2 Of 4):




RS-SRS-03 Supplemental Restraint System (Part 3 Of 4):

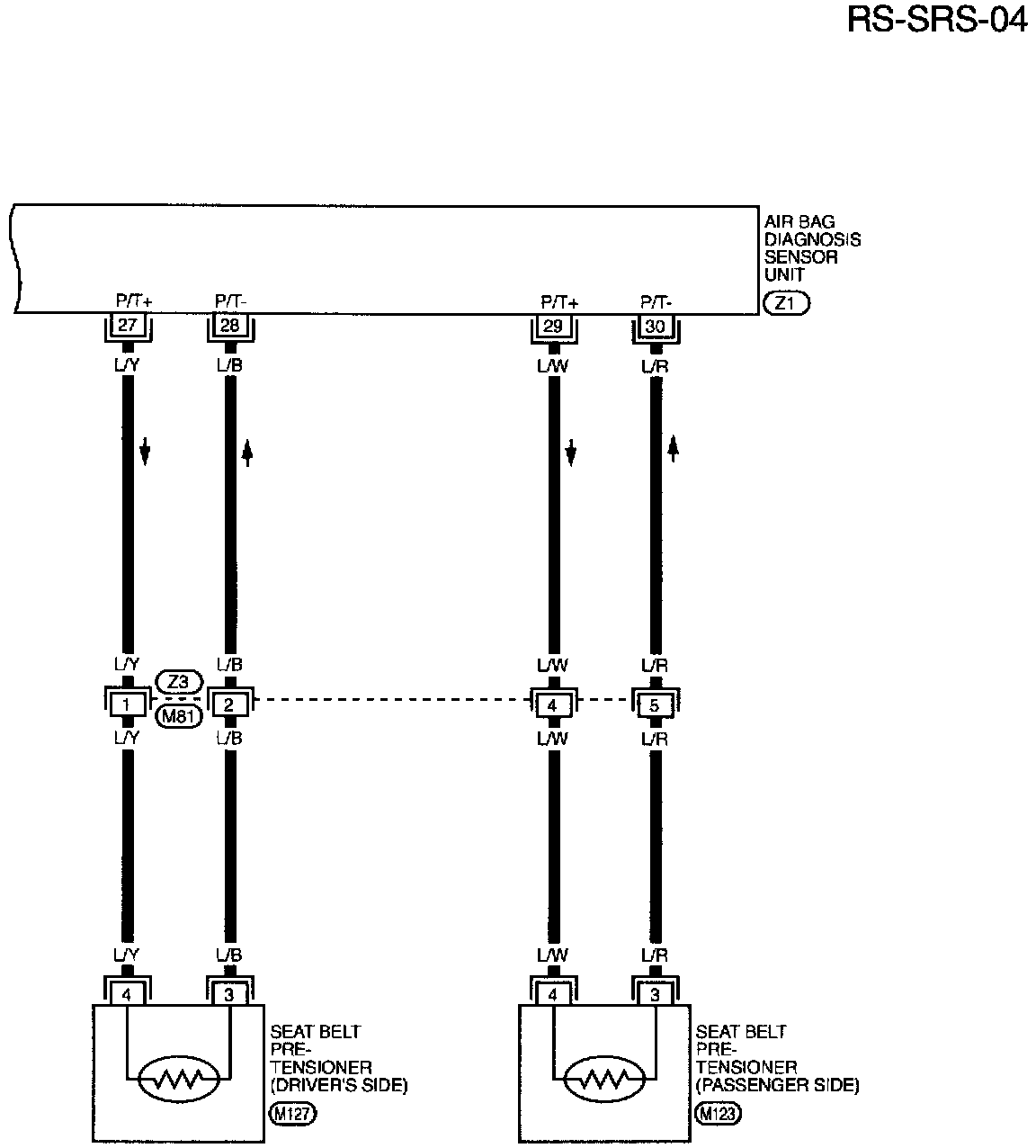

RS-SRS-04 Supplemental Restraint System (Part 4 Of 4):
