Electrical Diagrams

EL-D/LOCK-01 Power Door Lock (Part 1 Of 5):

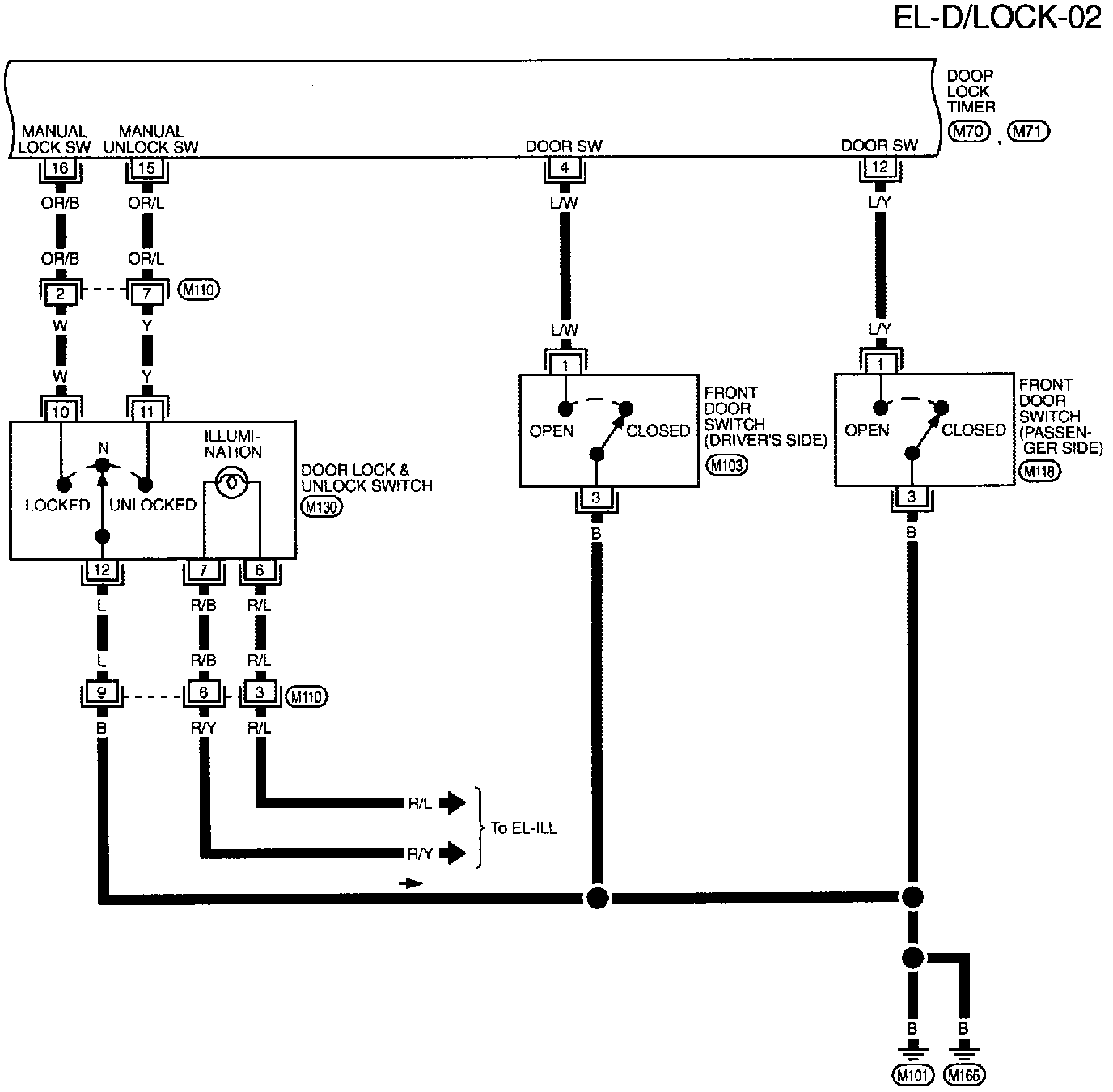

EL-D/LOCK-02 Power Door Lock (Part 2 Of 5):

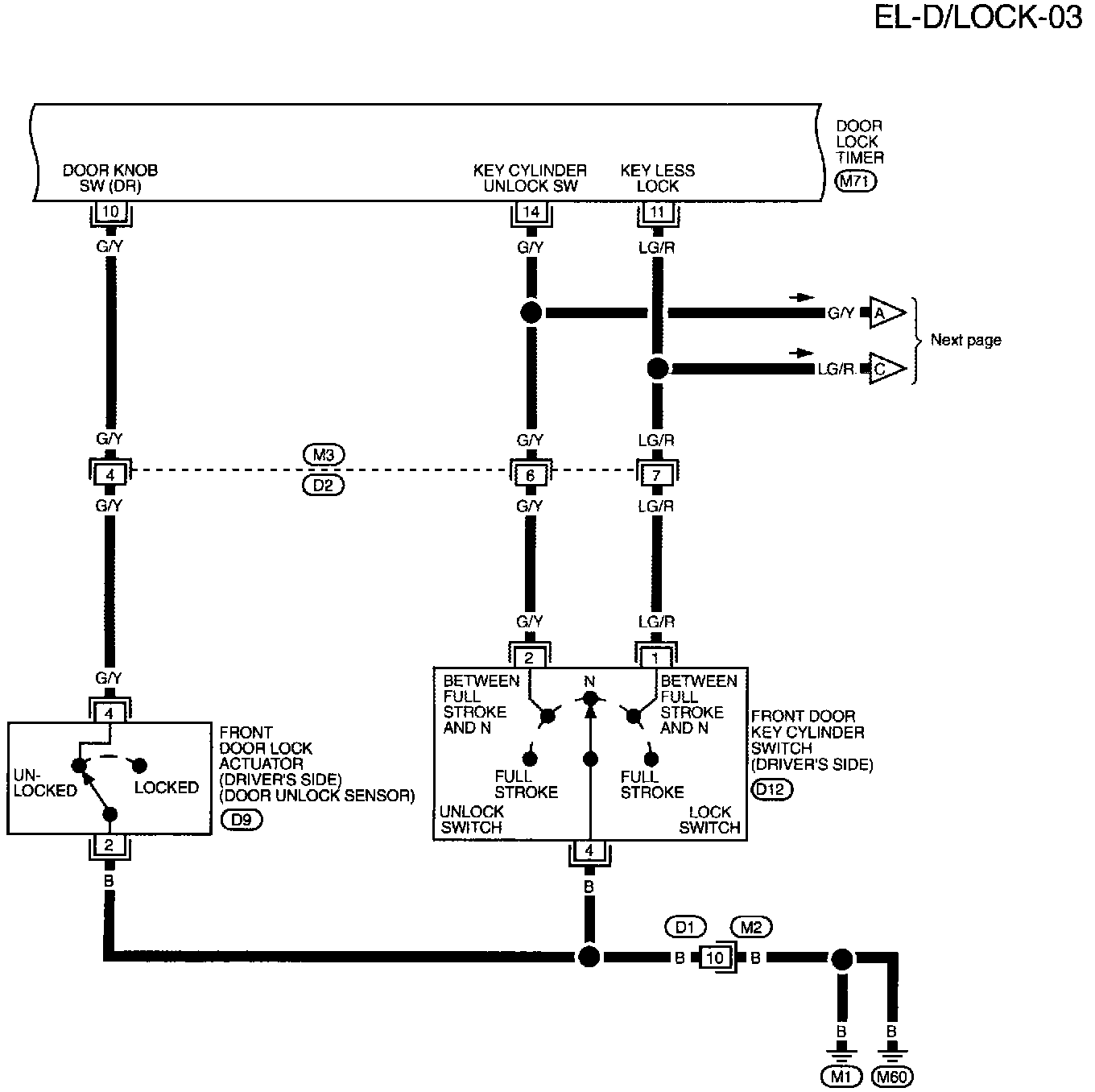

EL-D/LOCK-03 Power Door Lock (Part 3 Of 5):

EL-D/LOCK-04 Power Door Lock (Part 4 Of 5):

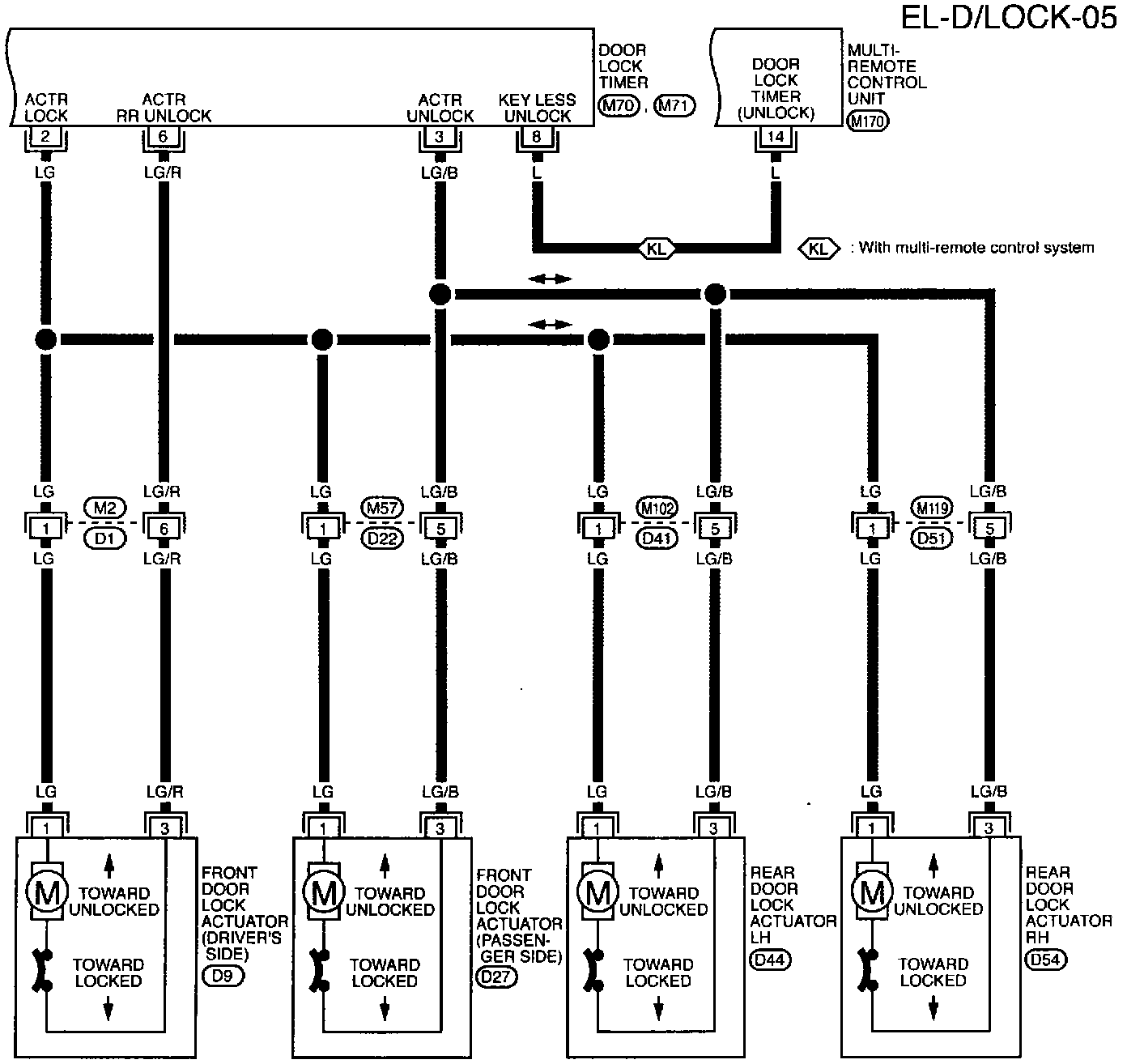

EL-D/LOCK-05 Power Door Lock (Part 5 Of 5):
