Starting System
>>
Wiring Diagrams - A/T Models
Wiring Diagrams - A/T Models

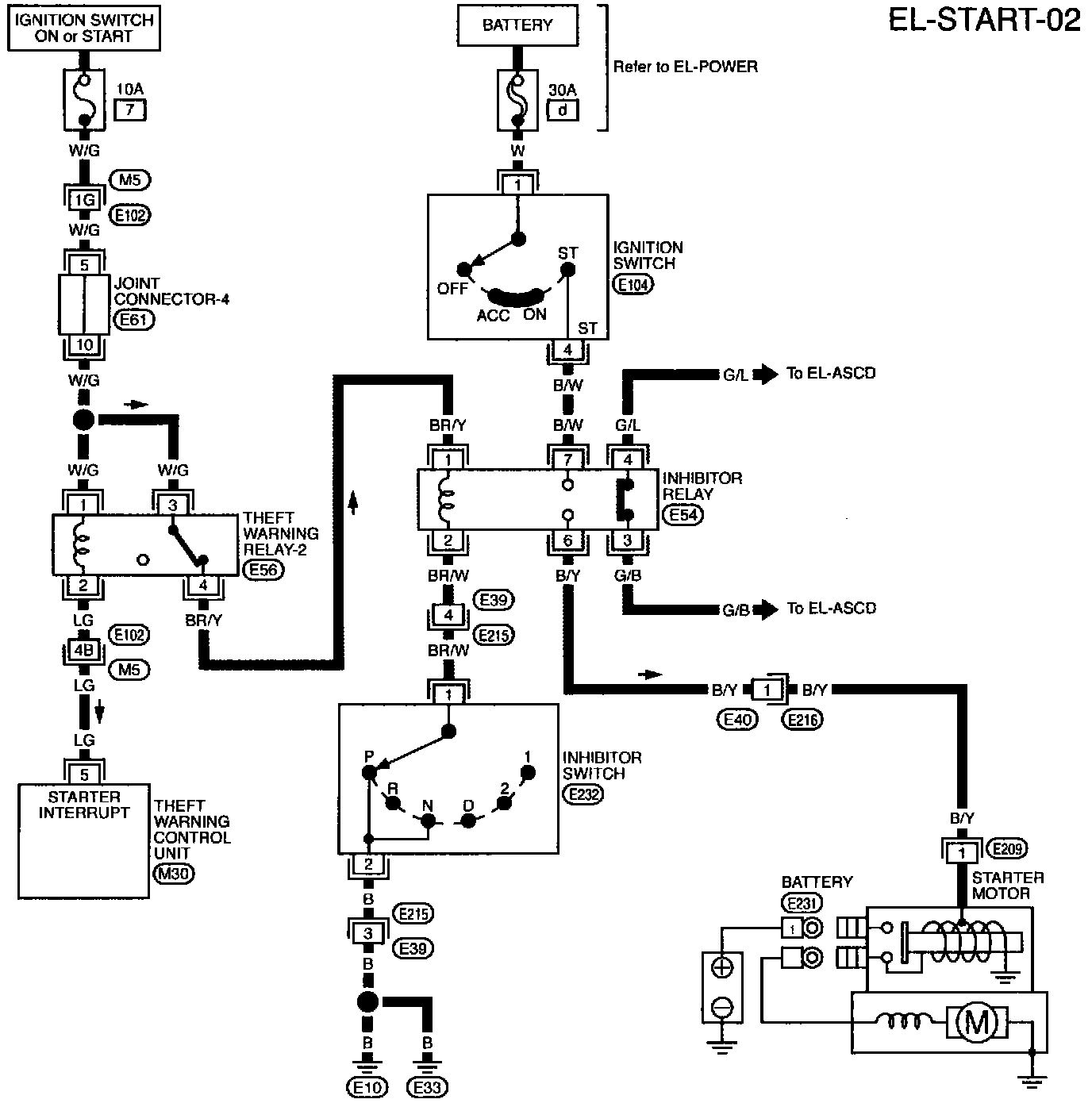

EL-START-02 Starting System (A/T Models):
