Home >> Infiniti >> 1996 >> G20 L4-2.0L (SR20DE) >> Repair and Diagnosis >> Diagrams >> Harness >> Body Harness LH >> Front

Front

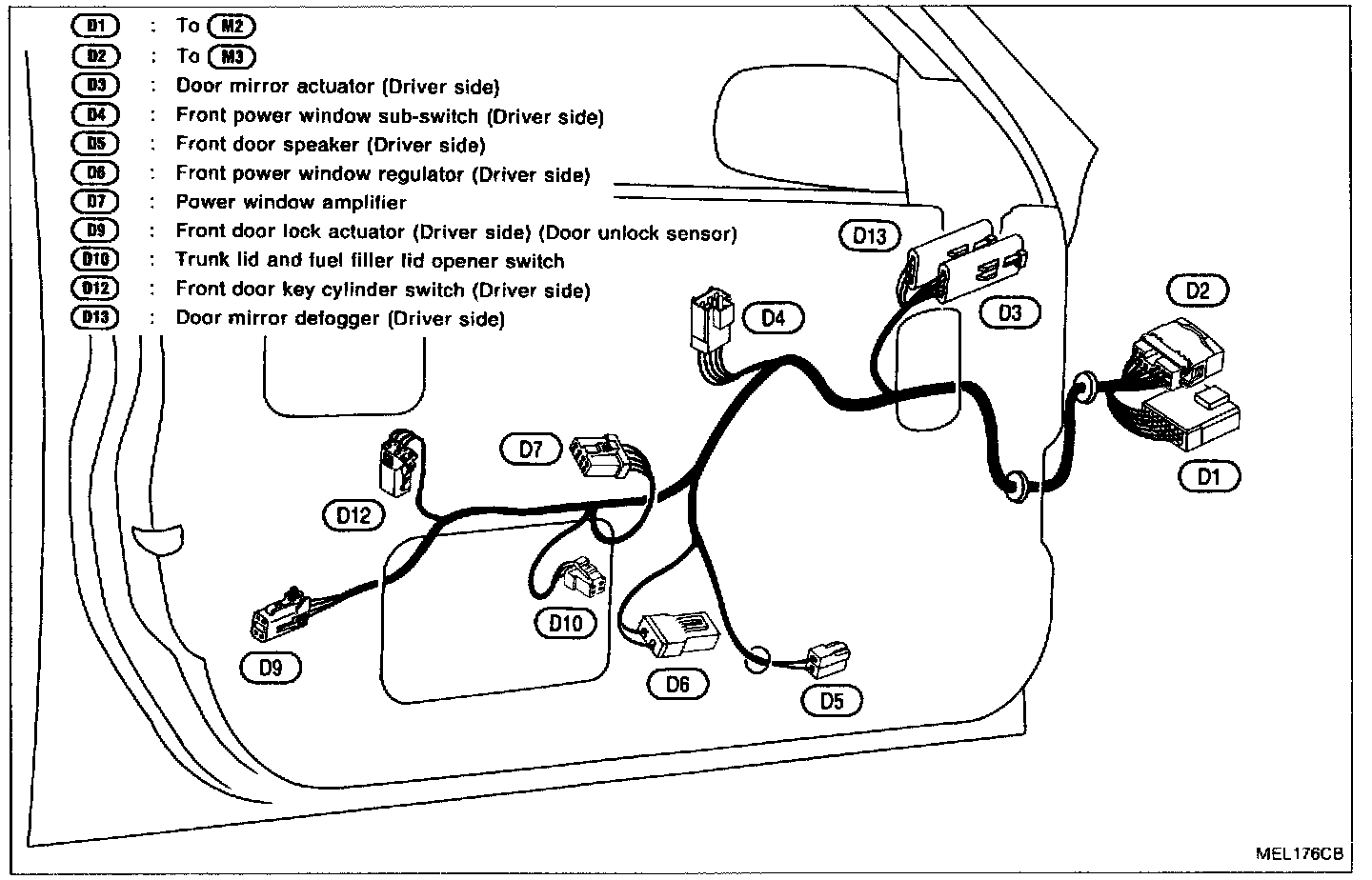

Door Harness (LH Side) Front:
