Component Tests and General Diagnostics

Fig. 2 Cooling Fan Wiring Diagram (Part 1 Of 2):

Fig. 2 Cooling Fan Wiring Diagram (Part 2 Of 2):

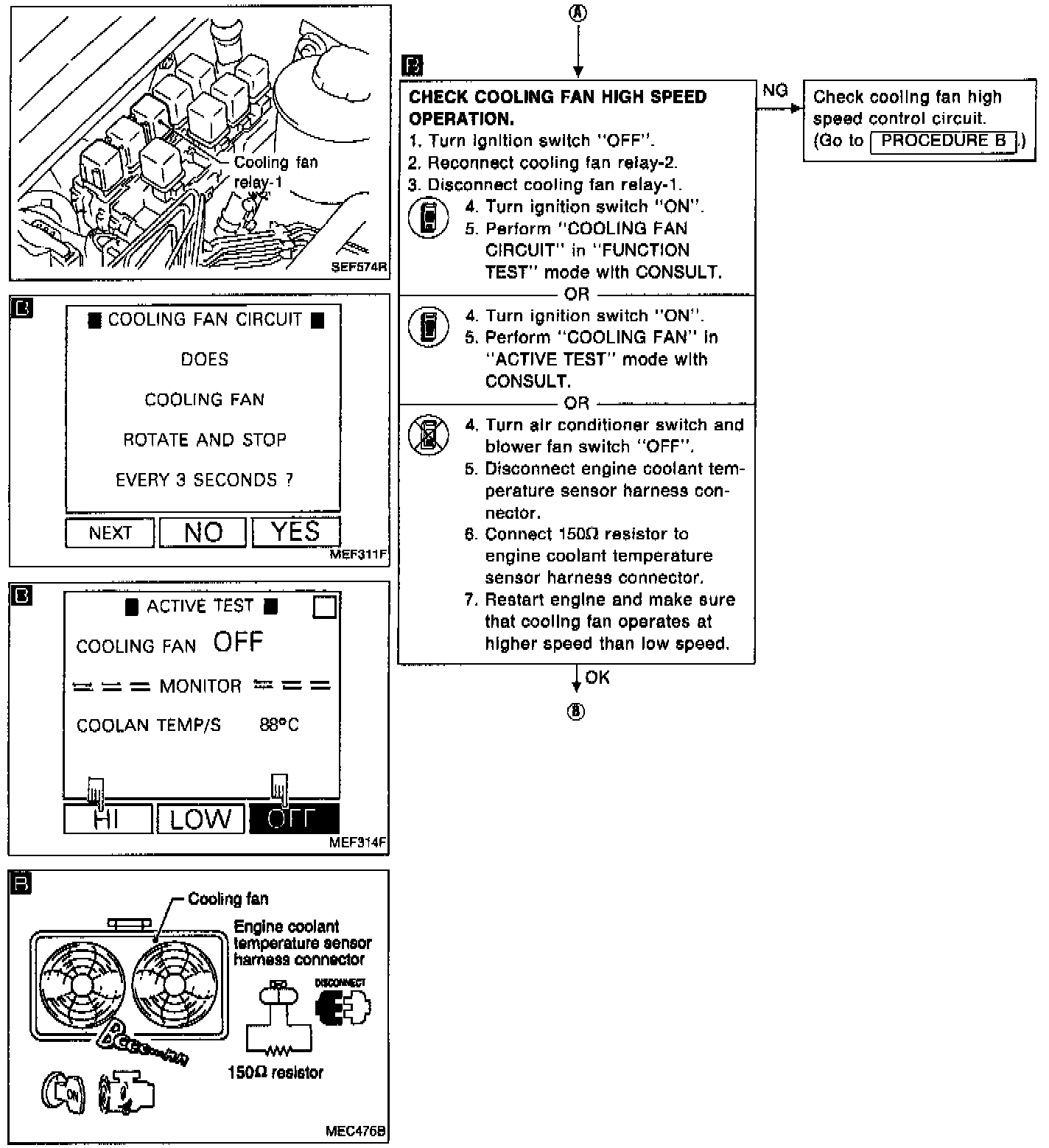

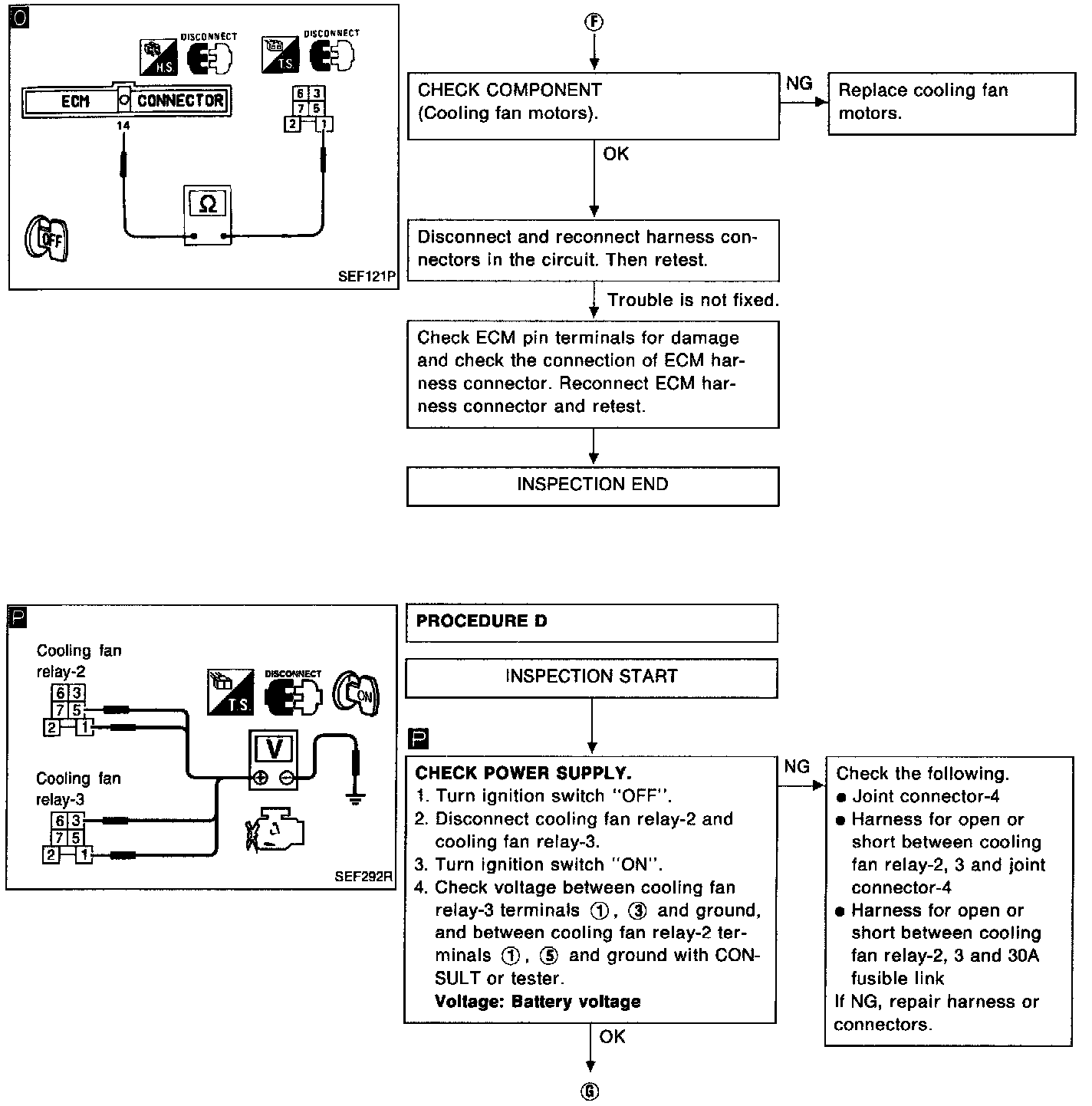

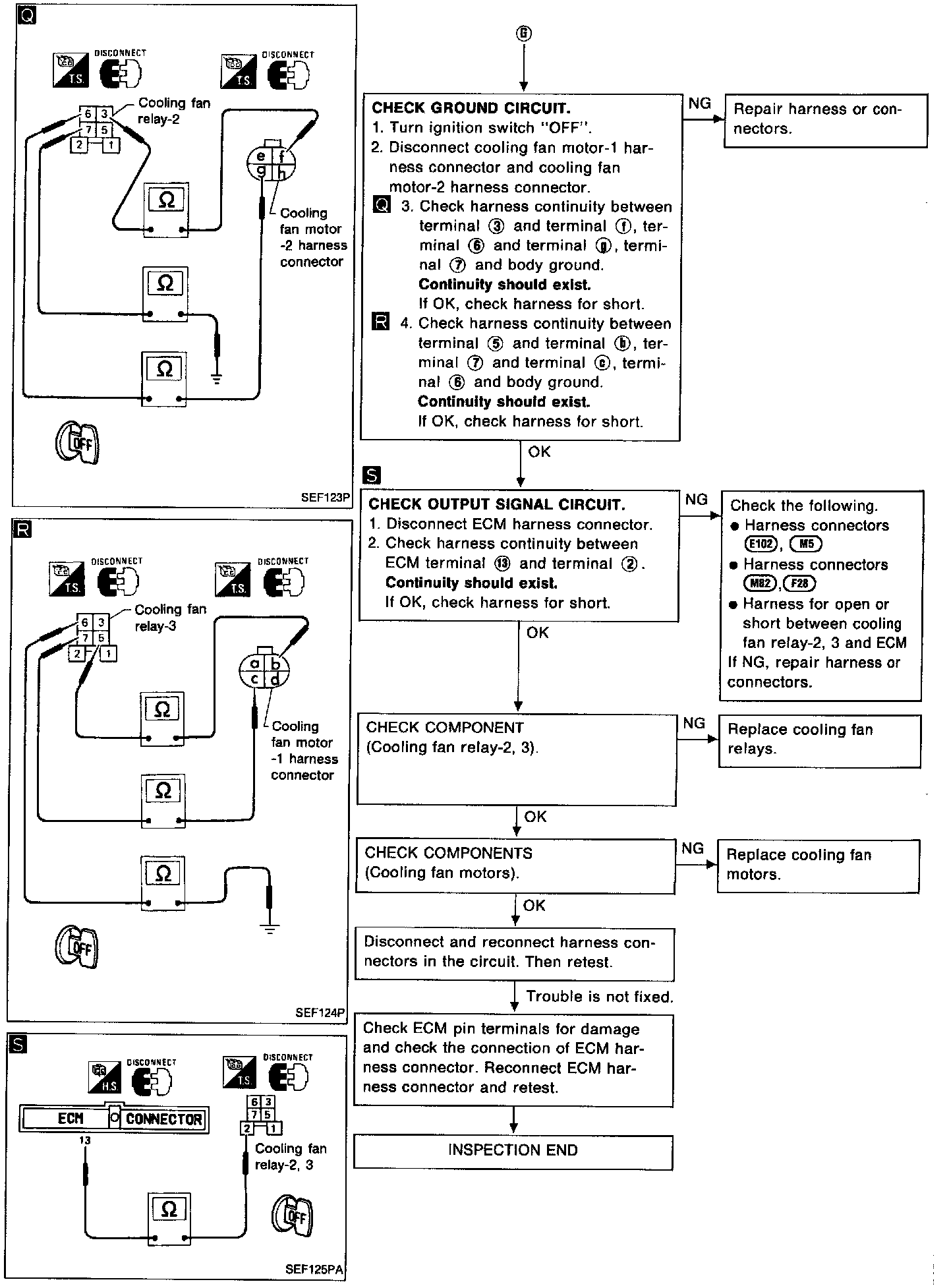

Fig. 4 Troubleshooting cooling fan (Part 1 of 11):

Fig. 4 Troubleshooting cooling fan (Part 2 of 11):

Fig. 4 Troubleshooting cooling fan (Part 3 of 11):

Fig. 4 Troubleshooting cooling fan (Part 4 of 11):

Fig. 4 Troubleshooting cooling fan (Part 5 of 11):

Fig. 4 Troubleshooting cooling fan (Part 6 of 11):

Fig. 4 Troubleshooting cooling fan (Part 7 of 11):

Fig. 4 Troubleshooting cooling fan (Part 8 of 11):

Fig. 4 Troubleshooting cooling fan (Part 9 of 11):

Fig. 4 Troubleshooting cooling fan (Part 10 of 11):

When troubleshooting cooling fan motor refer to Fig. 2 for wiring diagram of system and to Fig. 4 for cooling fan troubleshooting procedures.
