Home
>>
Infiniti
>>
1996
>>
G20 L4-2.0L (SR20DE)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Daytime Running Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

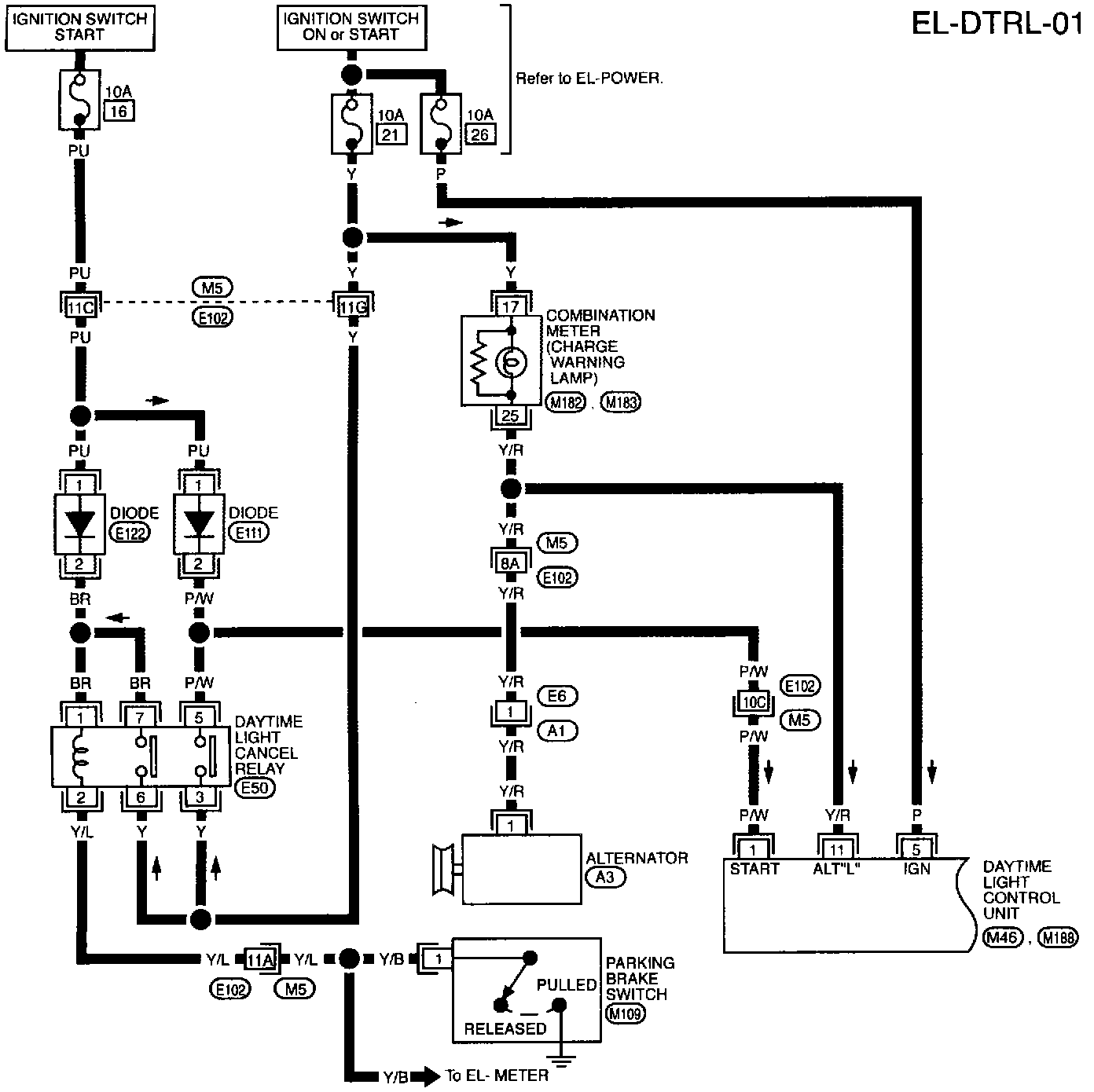

EL-DTRL-01 Daytime Light System (Part 1 Of 3) (For Canada):

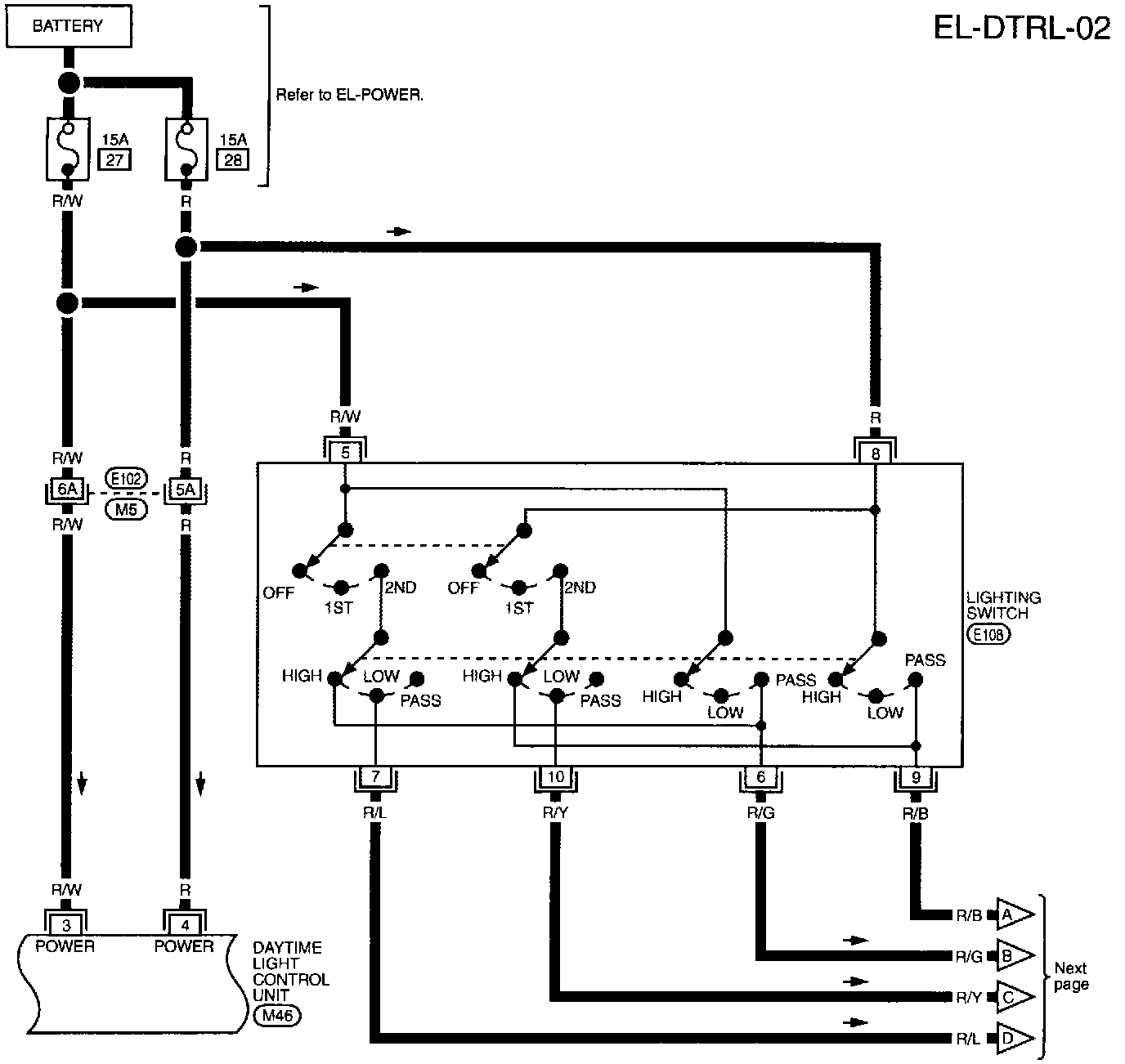

EL-DTRL-02 Daytime Light System (Part 2 Of 3) (For Canada):

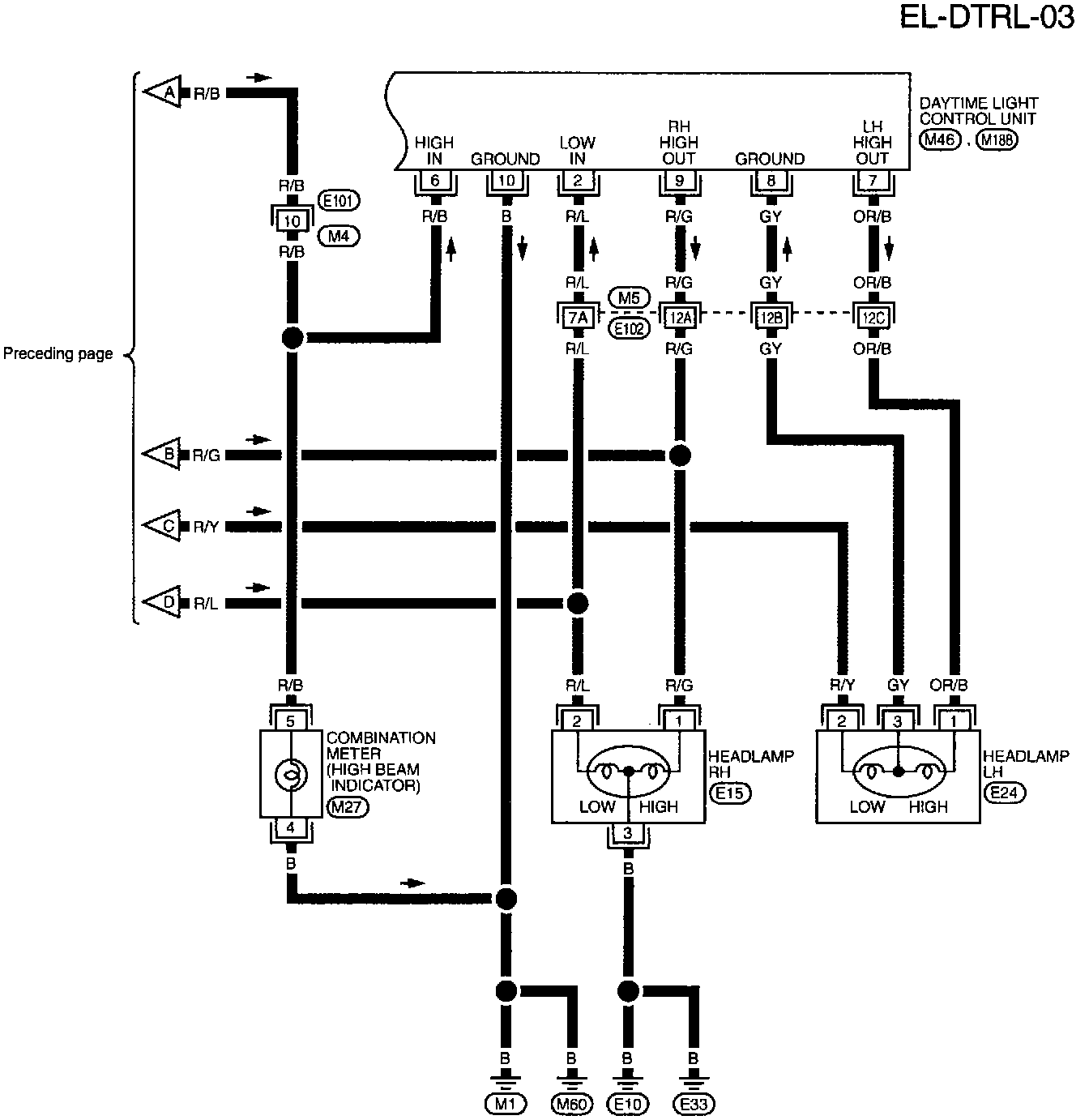

EL-DTRL-03 Daytime Light System (Part 3 Of 3) (For Canada):
