System Chart

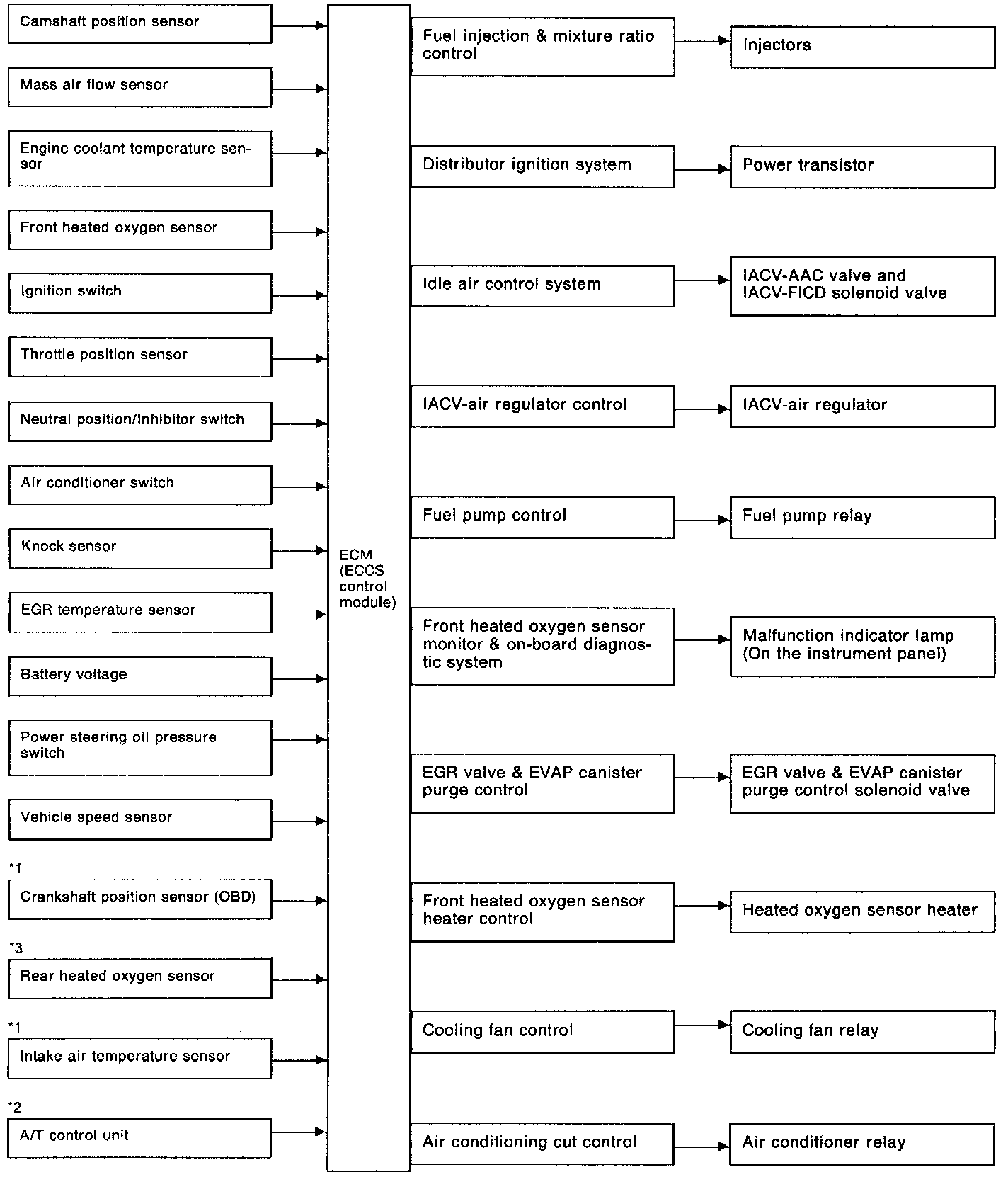

SYSTEM CHART
*1: These sensors are not directly used to control the engine system. They are used only for the on-board diagnosis.
*2: The DTC related to A/T will be sent to Engine Control Module (ECM).
*3: Under normal conditions. this sensor is not for engine control operation.
