Exhaust Gas Recirculation: Description and Operation

SYSTEM DESCRIPTION

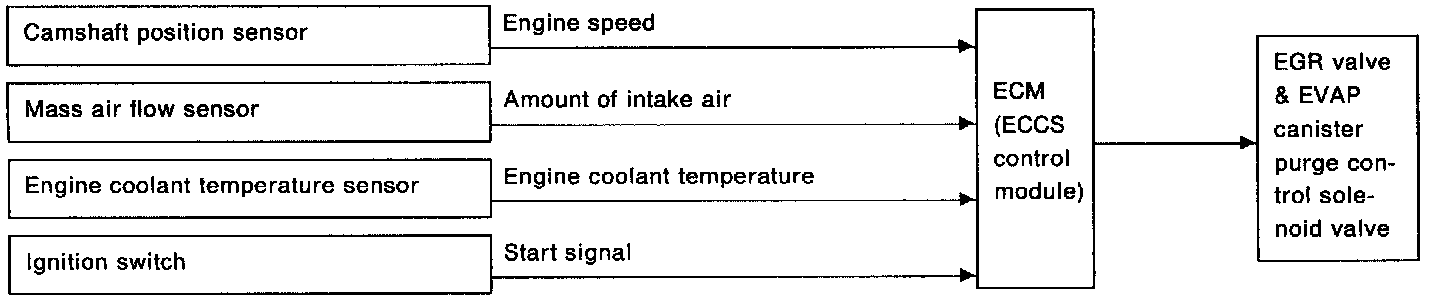

This system cuts and controls vacuum applied to the Exhaust Gas Recirculation (EGR) valve and EVAP canister to suit engine operating conditions. This cut-and-control operation is accomplished through the Engine Control Module (ECM) and the EGR valve & EVAP canister purge control solenoid valve. When the ECM detects any of the following conditions, current flows through the solenoid valve. This causes the port vacuum to be discharged into the atmosphere. The EGR valve and EVAP canister remain closed.
1) Low engine coolant temperature
2) Engine starting
3) High-speed engine operation
4) Engine idling
5) Excessively high engine coolant temperature
6) Mass air flow sensor malfunction




COMPONENTS DESCRIPTION




Exhaust Gas Recirculation (EGR) Valve
The EGR valve controls the amount of exhaust gas routed to the intake manifold. Vacuum is applied to the EGR valve in response to throttle valve opening. The vacuum controls the movement of a taper valve connected to the vacuum diaphragm in the EGR valve.




EGR Valve & EVAP Canister Purge Control Solenoid Valve
The EGR valve and EVAP canister purge control solenoid valve responds to signals from the ECM. When the ECM sends an ON (ground) signal, the coil in the solenoid valve is energized. A plunger will then move to cut the vacuum signal (from the throttle body to the EGR valve and EVAP canister purge valve).
When the ECM sends an OFF signal, the vacuum signal passes through the solenoid valve. The signal then reaches the EGR valve and EVAP canister.
