Schematic

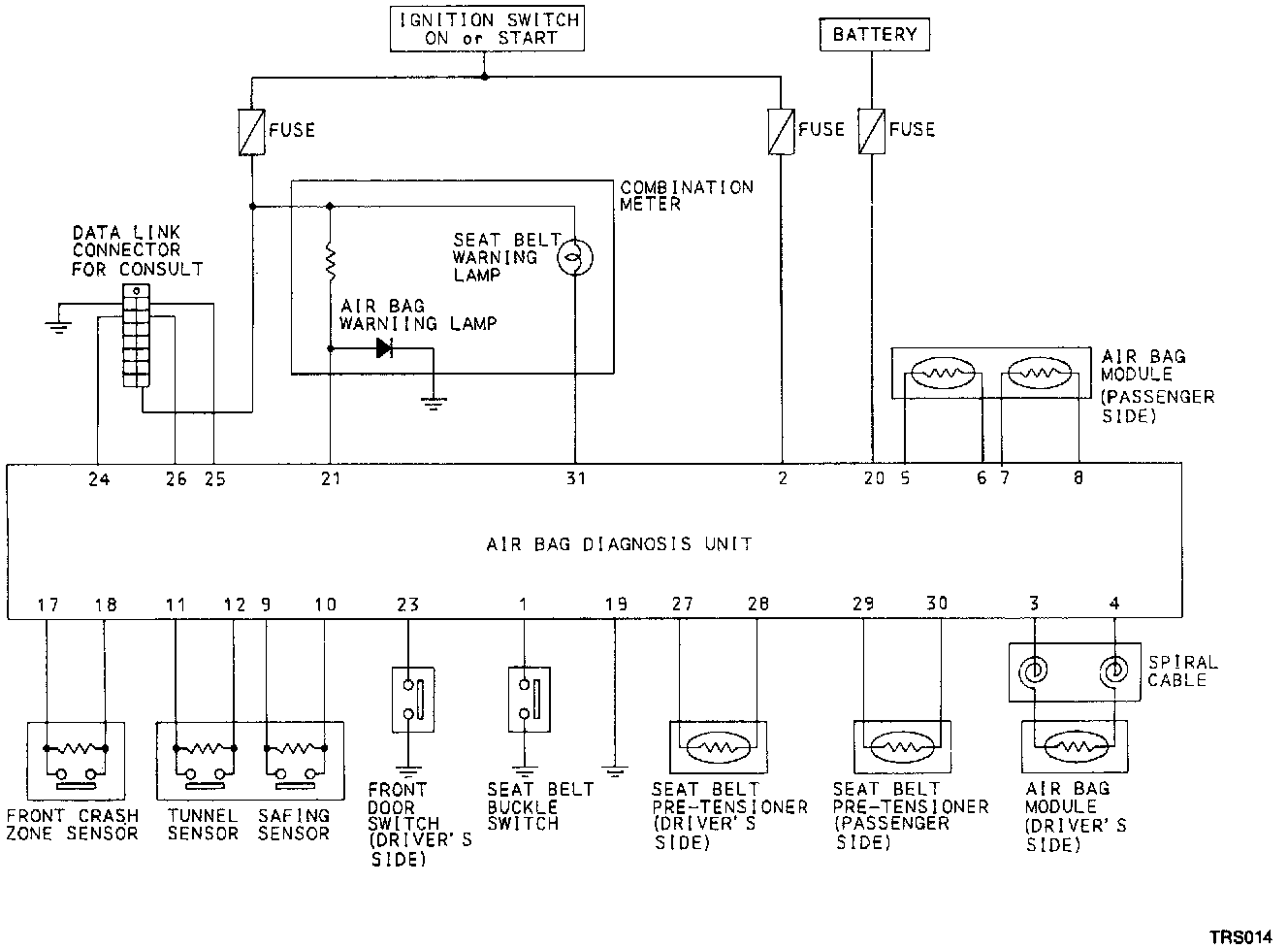

Supplemental Restraint System (SRS) Schematic:

CAUTION:
^ Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this manual. SRS wiring harnesses are covered with yellow insulation either just before the harness connectors or for the complete harness, for easy identification.
^ Do not attempt to repair, splice or modify the SRS "Air Bag" Wiring harness. If the harness is damaged, replace it with a new one.
^ Keep ground portion clean.
