Board-On Lift

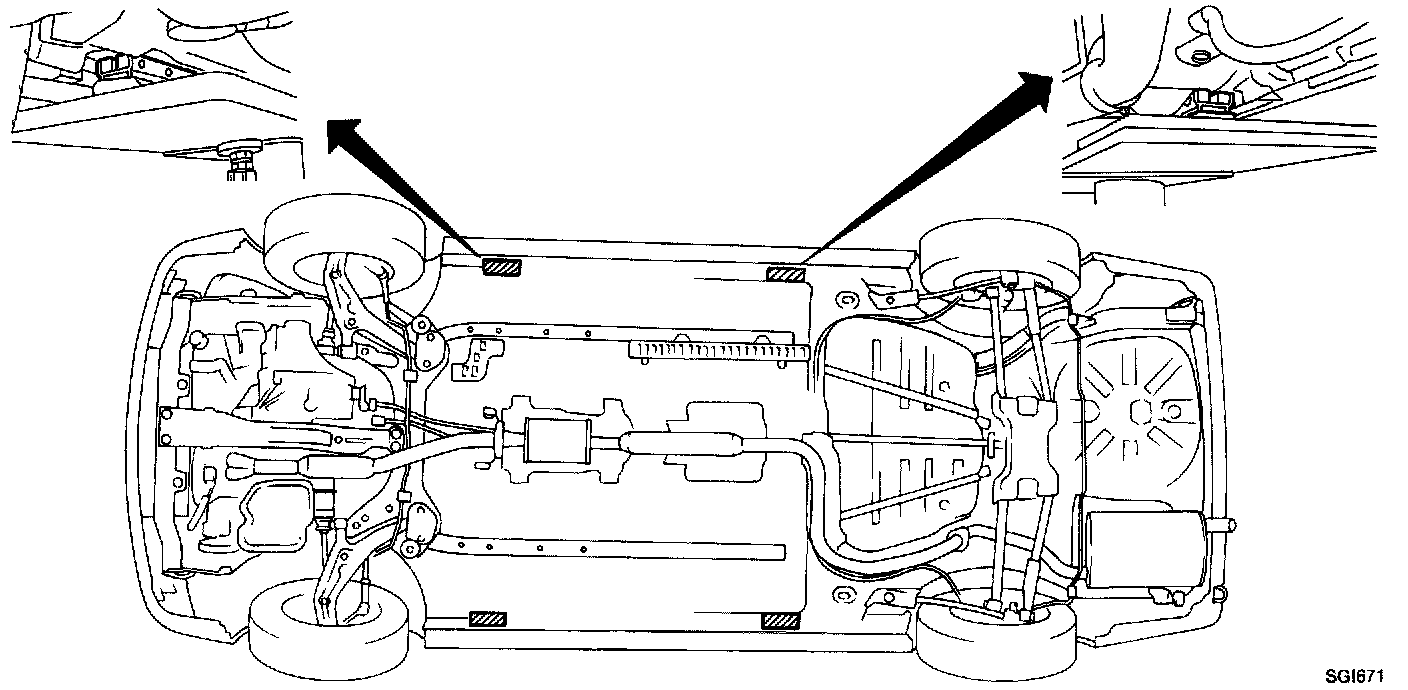

Board-on Lift/Models Without Sill Spoiler:




CAUTION: Make sure vehicle is empty when lifting.

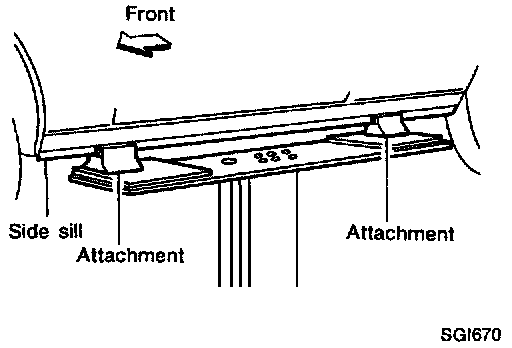

^ The board-on lift attachment (LM4086-0200) set at front end of vehicle should be set on the front of the sill under the front door opening.
^ Position attachments at front and rear ends of board-on lift.

Board-on Lift/Models With Sill Spoiler:




Models with sill spoiler
Fix board-on lift attachments to inner side of sill.
