Starting System: Testing and Inspection

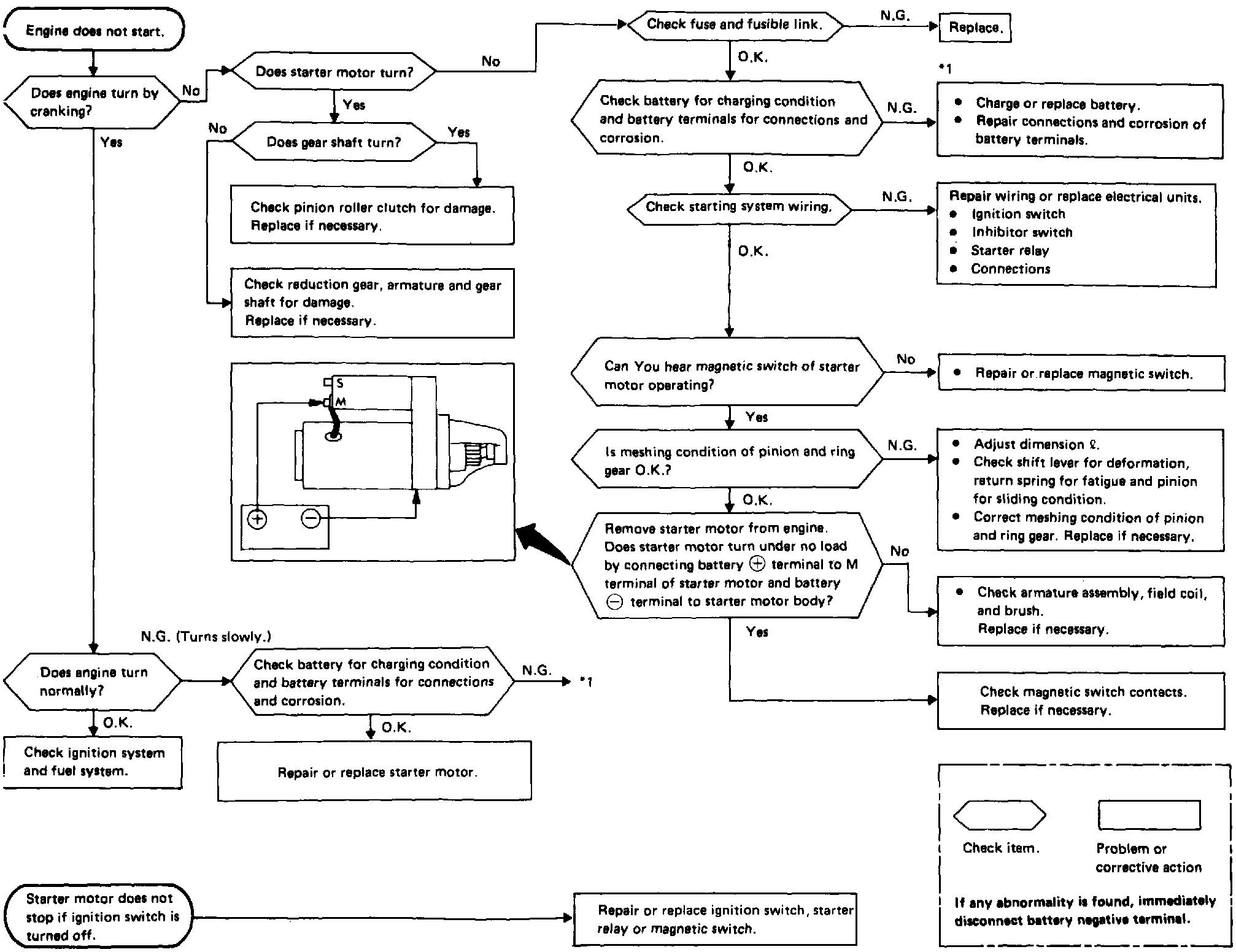

Fig. 6 Troubleshooting Chart:

Fig. 11 Starter Wiring Diagram:

Fig. 12 Starter Wiring Diagram:

Refer to Fig. 6 for troubleshooting and Figs. 11 through 12 for wiring circuits.
