Control Valve Assembly and Accumulators

REMOVAL





1. Drain A.T.F from transaxle.





2. Remove oil pan and gasket.





3. Disconnect A/T solenoid harness connector.





4. Remove stopper ring trom A/T solenoid harness terminal body.





5. Remove A/T solenoid harness from transmission case by pushing on terminal body.

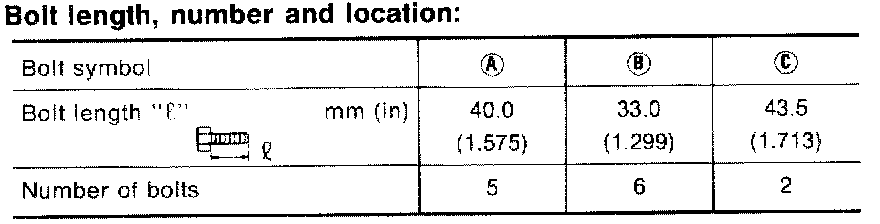

6. Remove control valve assembly by removing fixing bolts.

Note: Be careful not to drop manual valve, tube connector, tubes and 3-R accumulator return spring.

7. Disassemble and inspect control valve assembly if necessary.
8. Remove servo release and N-D accumulators by applying compressed air.

Note: Hold each piston with a rag.

INSTALLATION





a. Set manual shaft in Neutral, then align manual plate with groove in manual valve.

b. After installing control valve to transmission case, make sure that selector lever can be moved to all positions.
