Fluid Service

Checking M/T Oil






- Check that oil is not leaking from transaxie or around it.

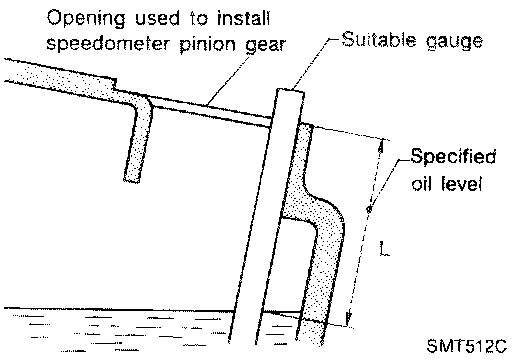

- Remove speedometer pinion and check that the oil level `L' at vehicle rear side is within specification.

Oil Level L:
RS5F32A 39 - 44 mm (1.544 -1.73 in)
R55F32V 34 - 40 mm (1.34 -1.57 in)

Changing M/T Oil

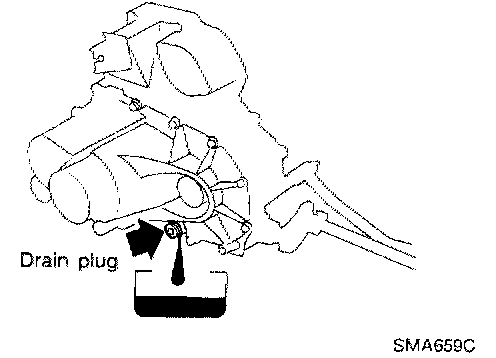

- Drain oil from drain plug and refill with new gear oil.
- Check oil level.

Oil grade:
API GL-4
Capacity:
R55F32A and R55F32V: 3.7 - 3.9 liters (7-7/8 - 8-1/4 US pt, 6-1/2 - 6-7/8 Imp pt)
Drain plug:
25 - 34 Nm (2.5 - 3.5 kg-m, 18 - 25 fl-lb)
