Transaxle

Removal
1. Remove battery negative terminal.

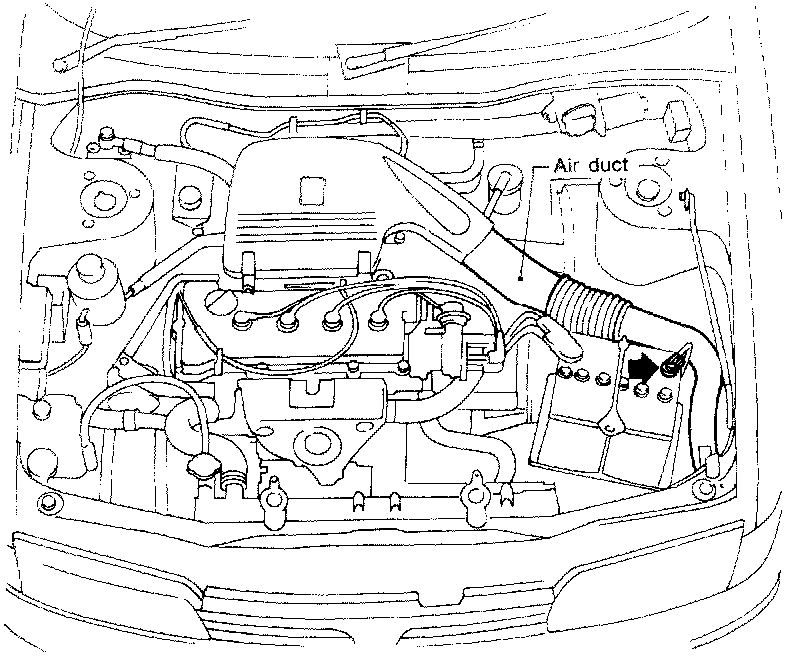

2. Remove air duct.
3. Disconnect clutch control cable from transaxie.
4. Disconnect speedometer cable from transaxle.
5. Disconnect back-up lamp switch neutral switch and ground harness connectors.

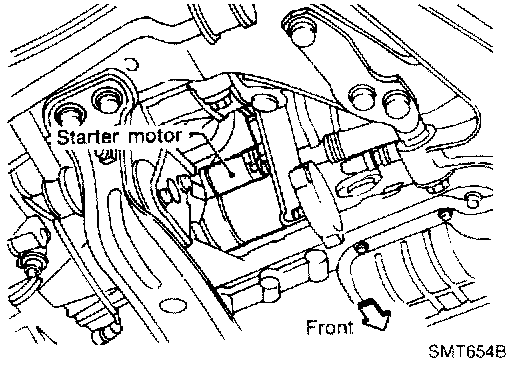

6. Remove starter motor from transaxle.

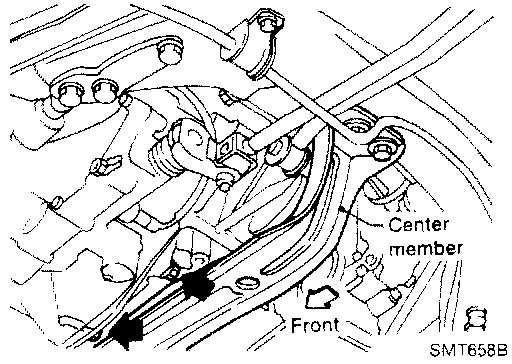

7. Remove shift control rod and support rod from transaxle.
8. Drain gear oil from transaxle.
9. Remove exhaust front tube.

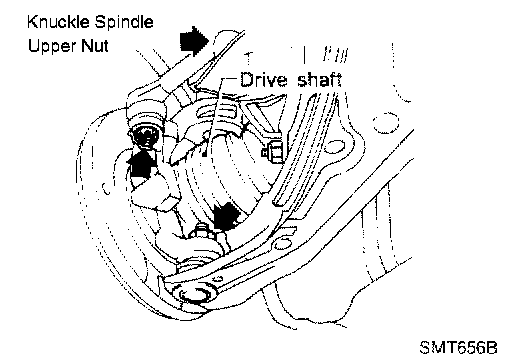

10 Draw out drive shafts from transaxie -





11. Support engine by placing a jack under oil pan.

CAUTION: Do not place lack under oil pan drain plug.

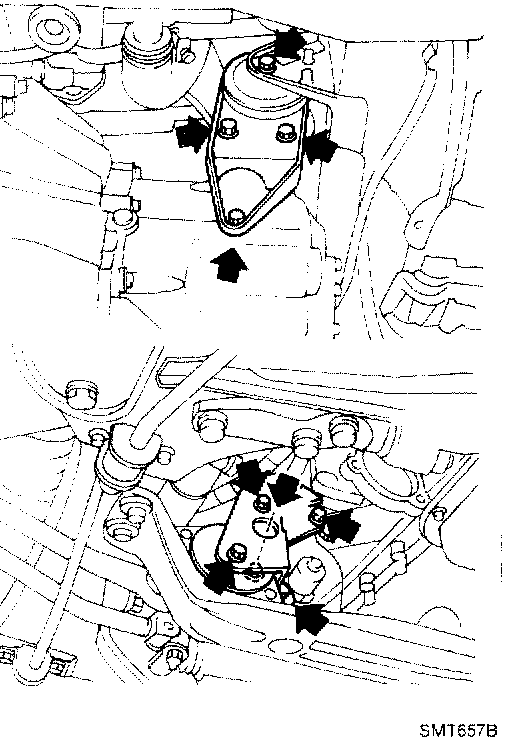

12. Remove rear and LH mounts.





13. Raise jack for access to lower housing bolts. Remove bolts. Lower jack.

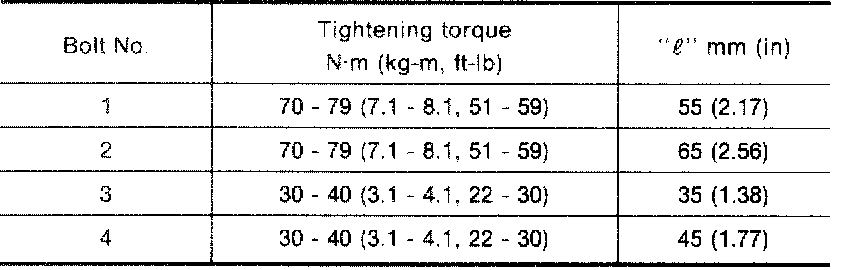

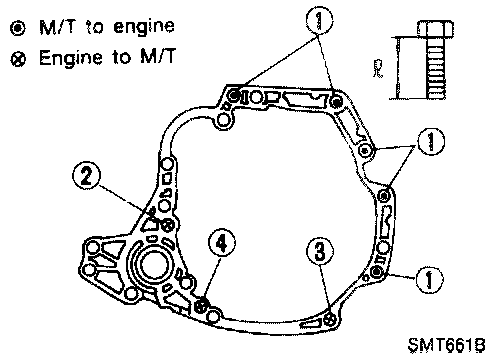

14. Remove bolts securing transaxle.
15 Lower transaxle while supporting it with a jack.








Reinstall any part removed.
