Heated Glass Element: Testing and Inspection

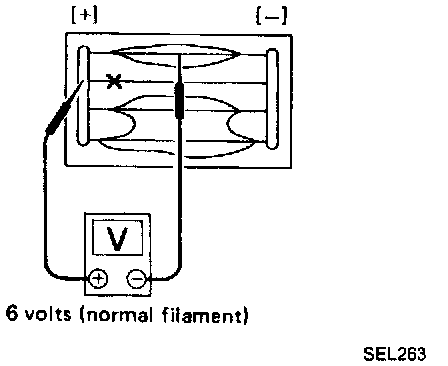

1. Attach probe circuit tester (in Volt range) to middle portion of each filament.

^ When measuring voltage,wind a piece of tin foil around the top of the negative probe and press the foil against the wire with your finger.

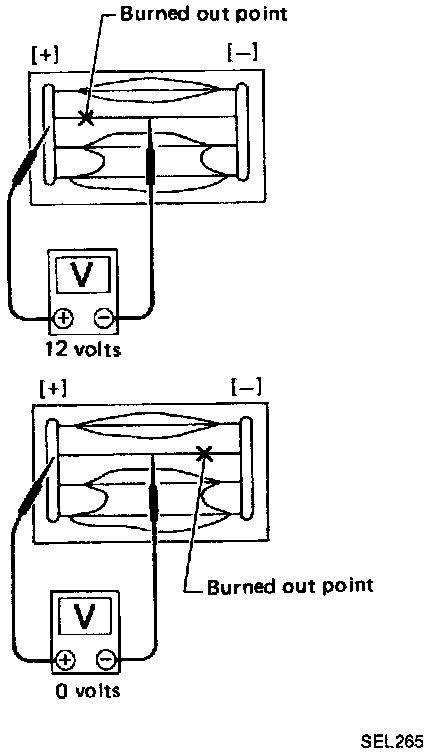

2. If a filament is burnt out, circuit tester registers 0 or 12 volts.

3. To locate burned out point,move probe to left and right along filament. Tester needle will swing abruptly when probe passes the point.
