Brake Switch (Cruise Control): Testing and Inspection

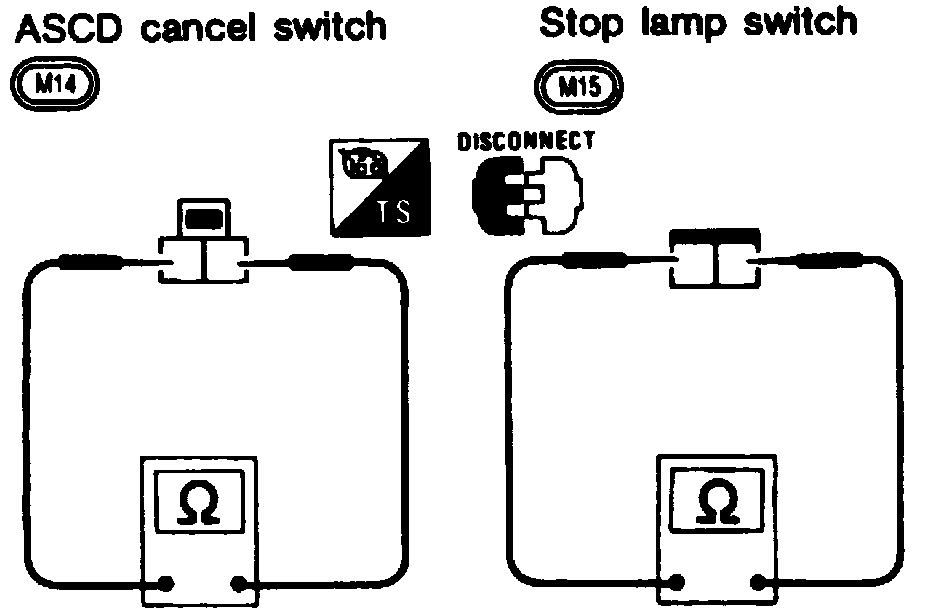

Fig. 60 ASCD Cancel & Stop Lamp Switch Terminal Connections:

1. Connect ohmmeter to terminals as shown in Fig. .
2. With brake pedal depressed, no continuity should exist at ASCD cancel switch. Release pedal, continuity should then exist.
