Home >> Infiniti >> 1996 >> I30 V6-2988cc 3.0L DOHC (VQ30DE) >> Repair and Diagnosis >> Cruise Control >> Diagrams >> Electrical Diagrams >> Schematic >> A/T Models

A/T Models

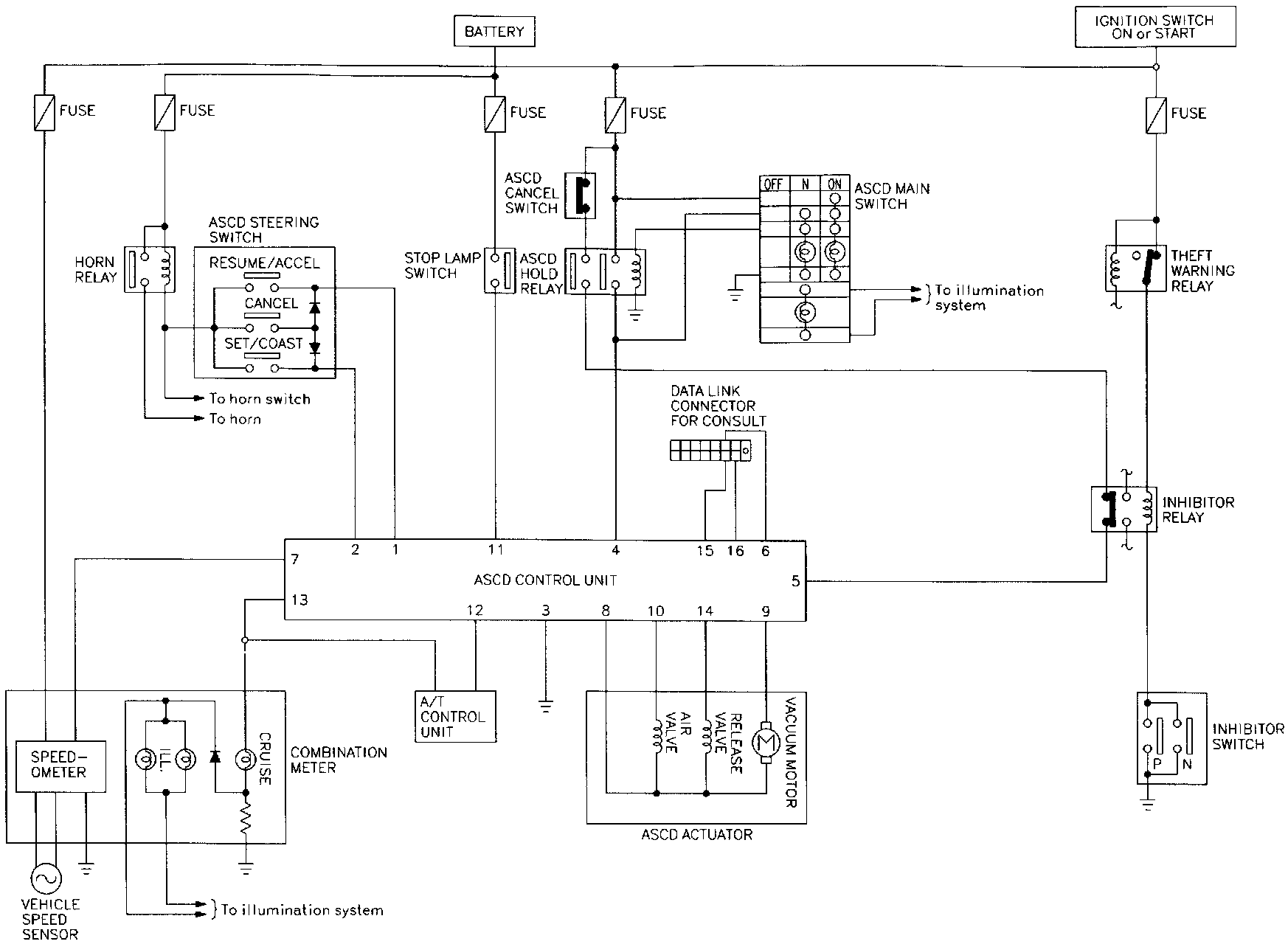

Schematic A/T Models:
