Horn
>>
System Specific Connectors
System Specific Connectors

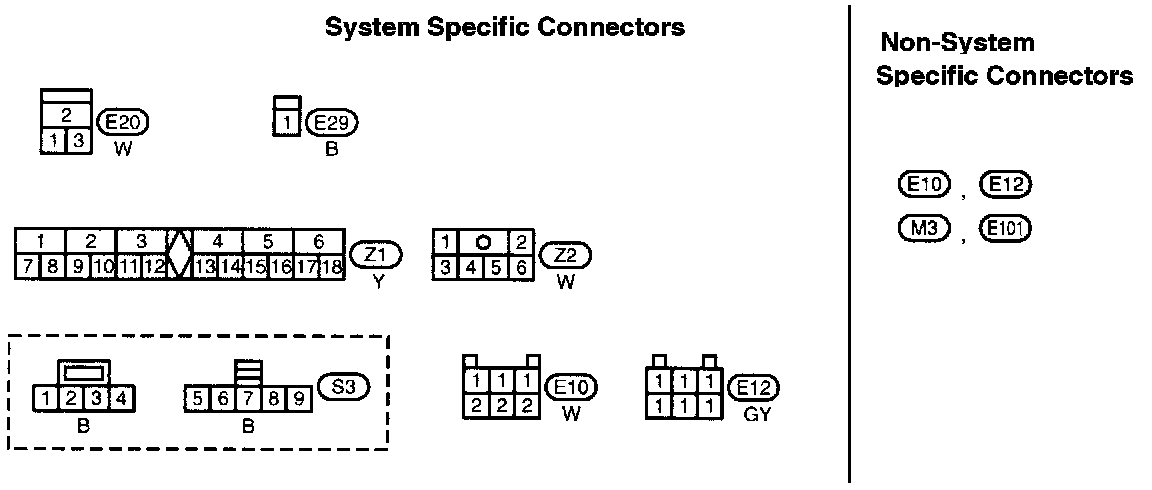

Horn, Cigarette Lighter And Clock (Part 1 Of 2):

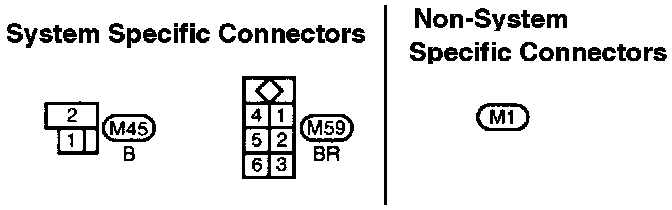

Horn, Cigarette Lighter And Clock (Part 2 Of 2):
