Home >> Infiniti >> 1996 >> I30 V6-2988cc 3.0L DOHC (VQ30DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Name >> EC-BYPS/V

EC-BYPS/V

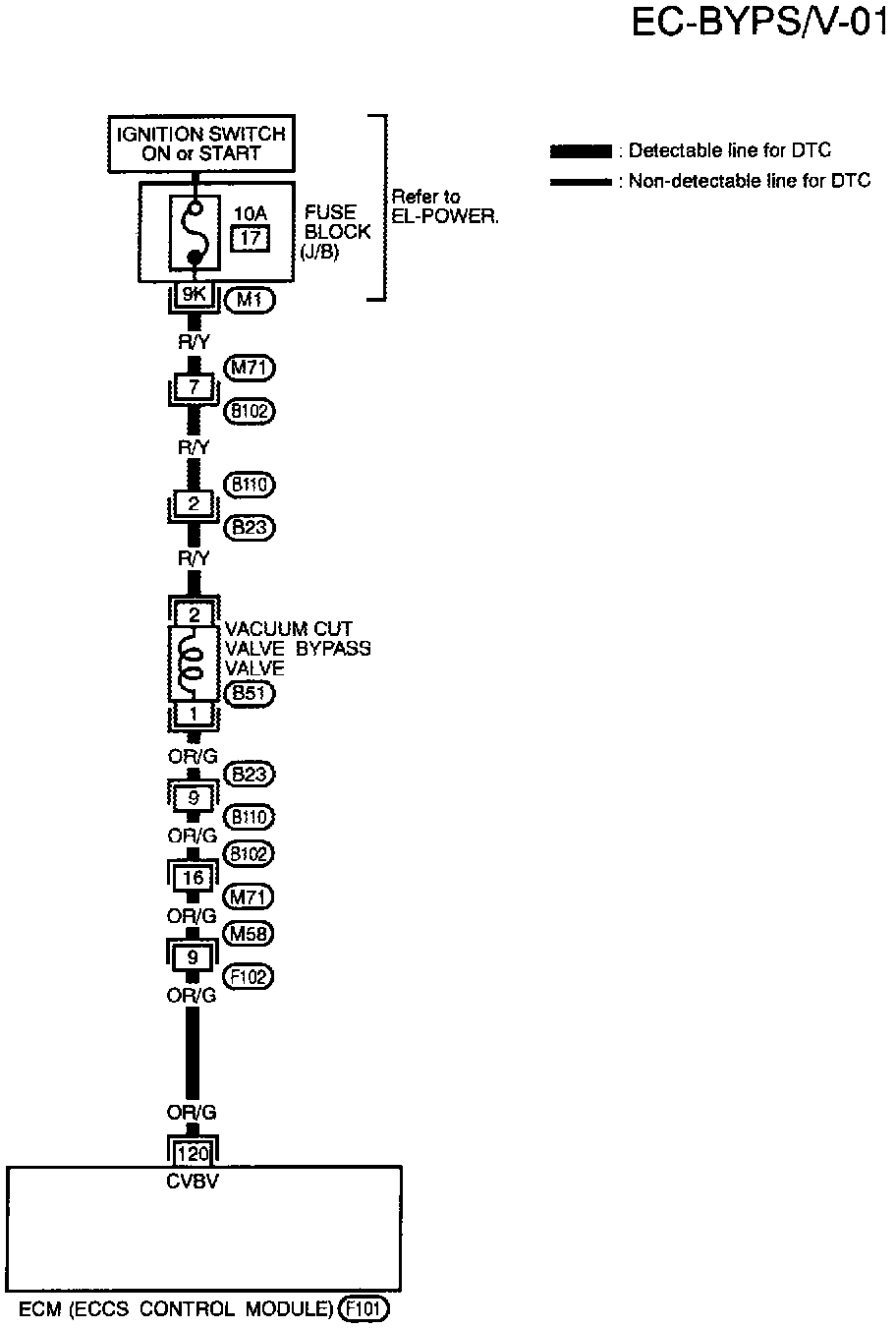

EC-BYPS/V-01 Vacuum Cut Valve Bypass Valve (DTC: P1441):
