EC-COMM

EL-COMM-01 Main Power Supply, Ground And Communication Circuits (Part 1 Of 3):

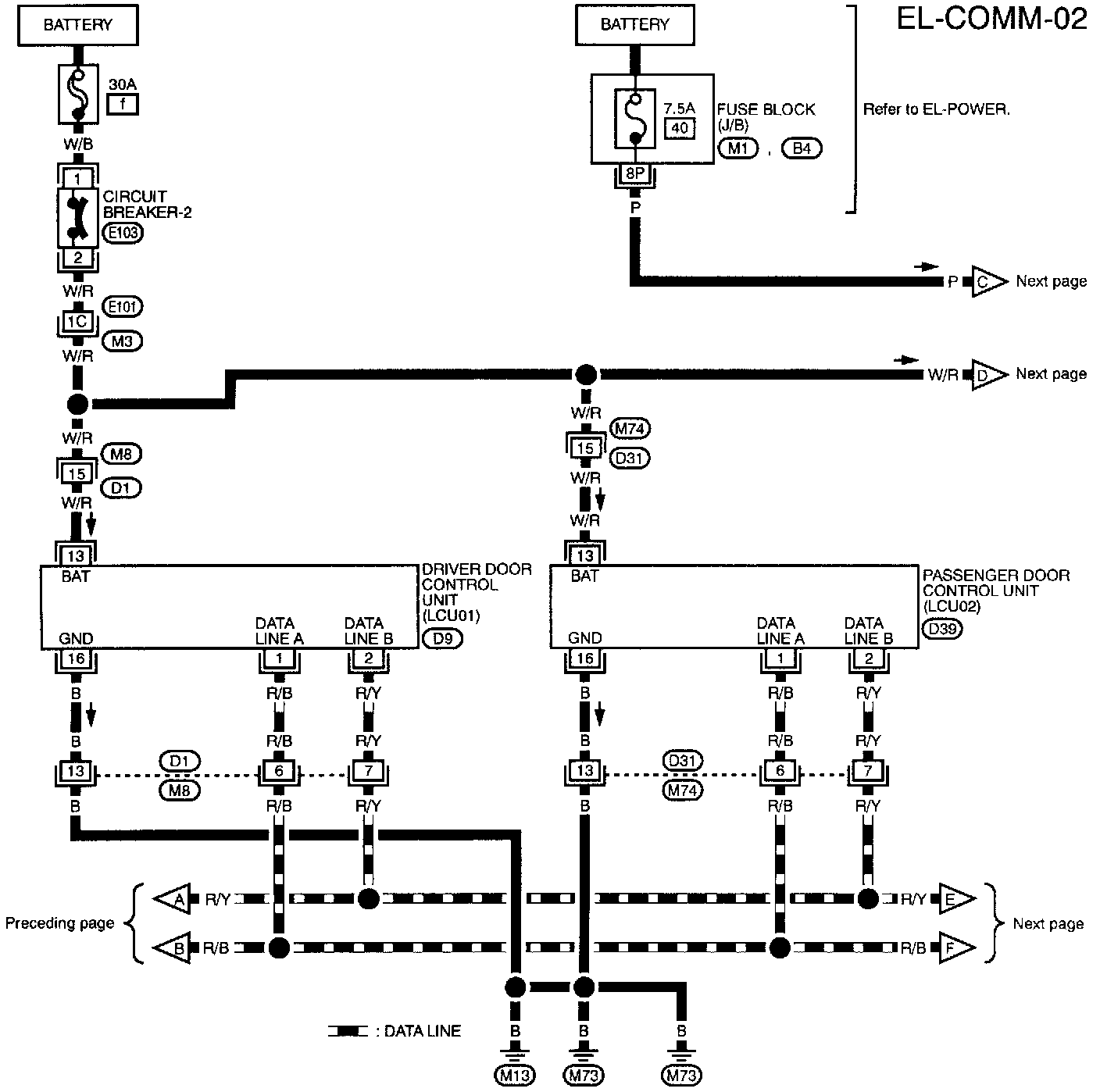

EL-COMM-02 Main Power Supply, Ground And Communication Circuits (Part 2 Of 3):

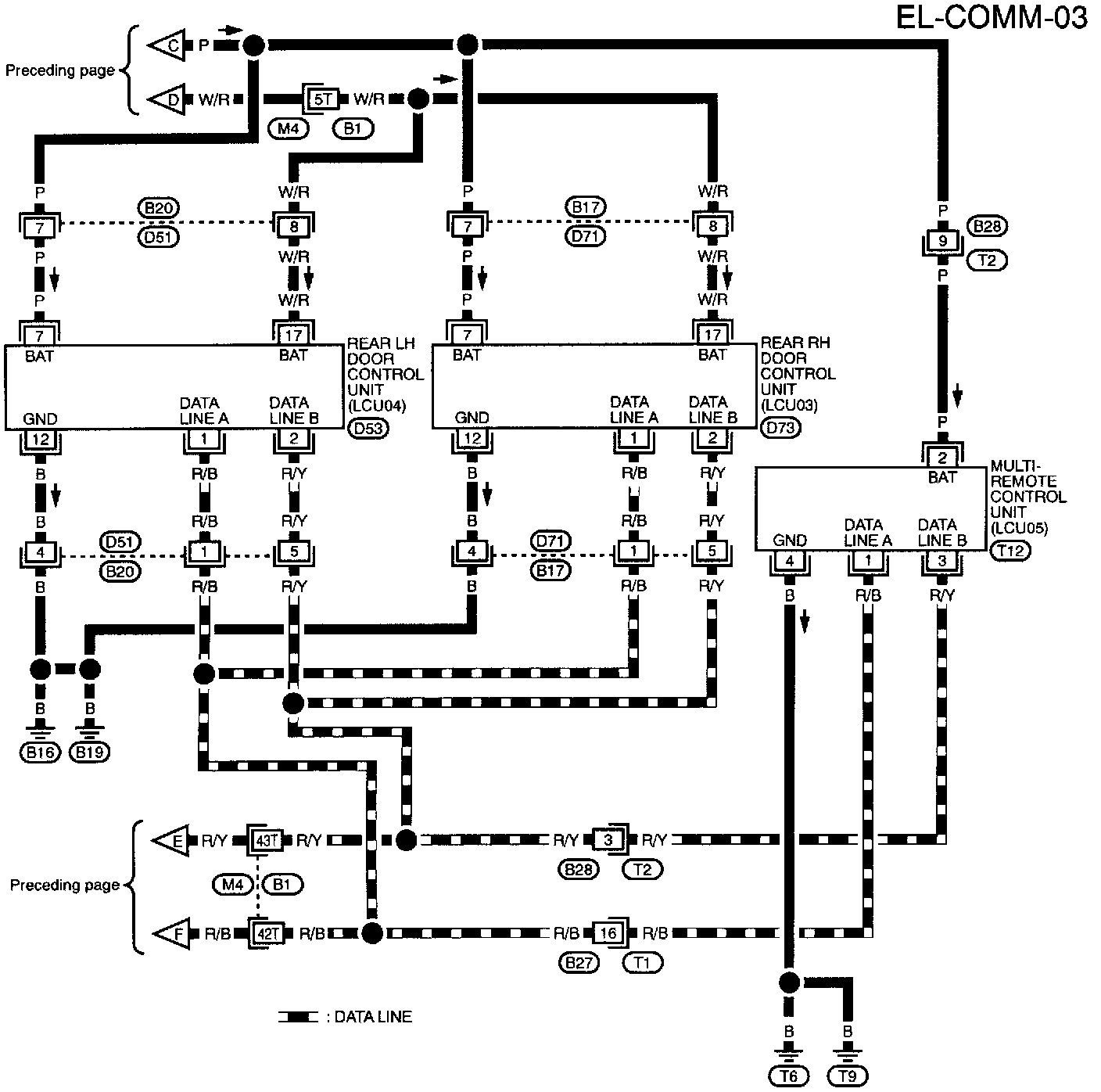

EL-COMM-03 Main Power Supply, Ground And Communication Circuits (Part 3 Of 3):
