EC-SW/V

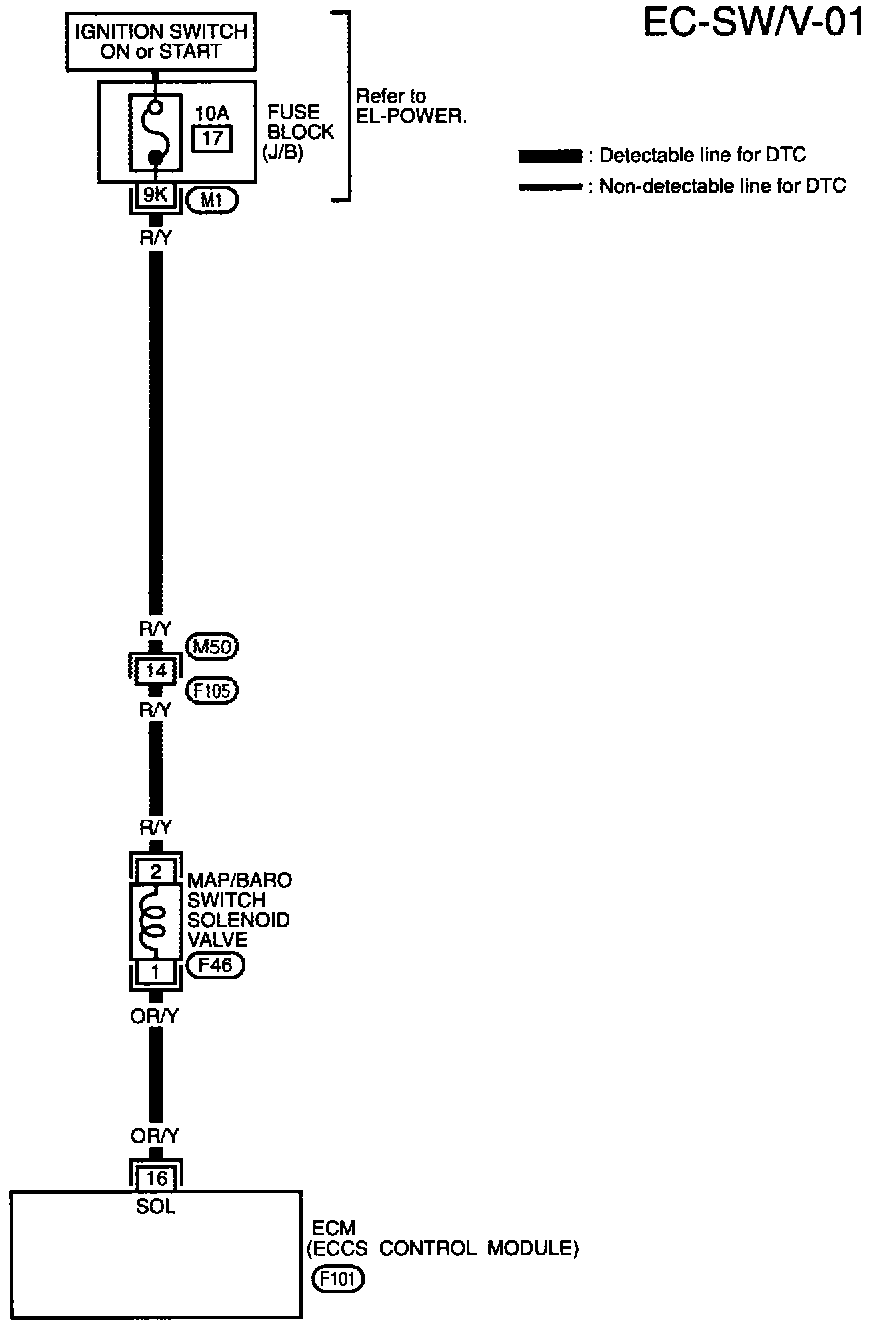

EC-SW/V-01 Manifold Absolute Pressure (MAP)/Barometric Pressure (BARO) Switch Solenoid Valve (DTC: P1105):
