Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
1996
>>
I30 V6-2988cc 3.0L DOHC (VQ30DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
Condenser Fan
Condenser Fan
EC-COOL/F-01 Cooling Fan (DTC: P1900) (Part 1 Of 2):

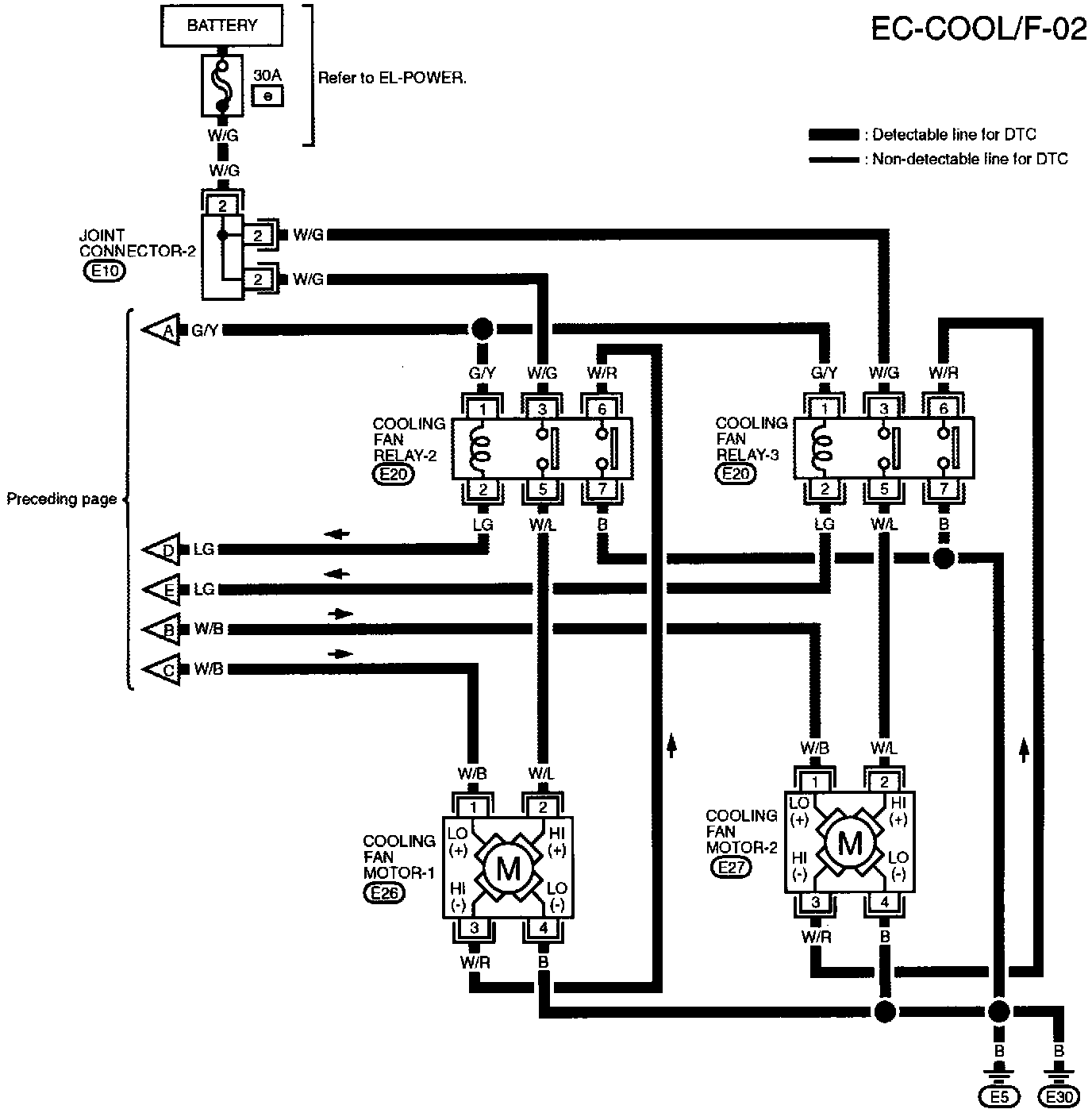

EC-COOL/F-02 Cooling Fan (DTC: 1308) (Part 2 Of 2):
