Interior Lighting Module
Interior Lighting Module
EL-ROOM/L-01 Interior Lamp Control (Part 1 Of 3):
EL-ROOM/L-02 Interior Lamp Control (Part 2 Of 3):

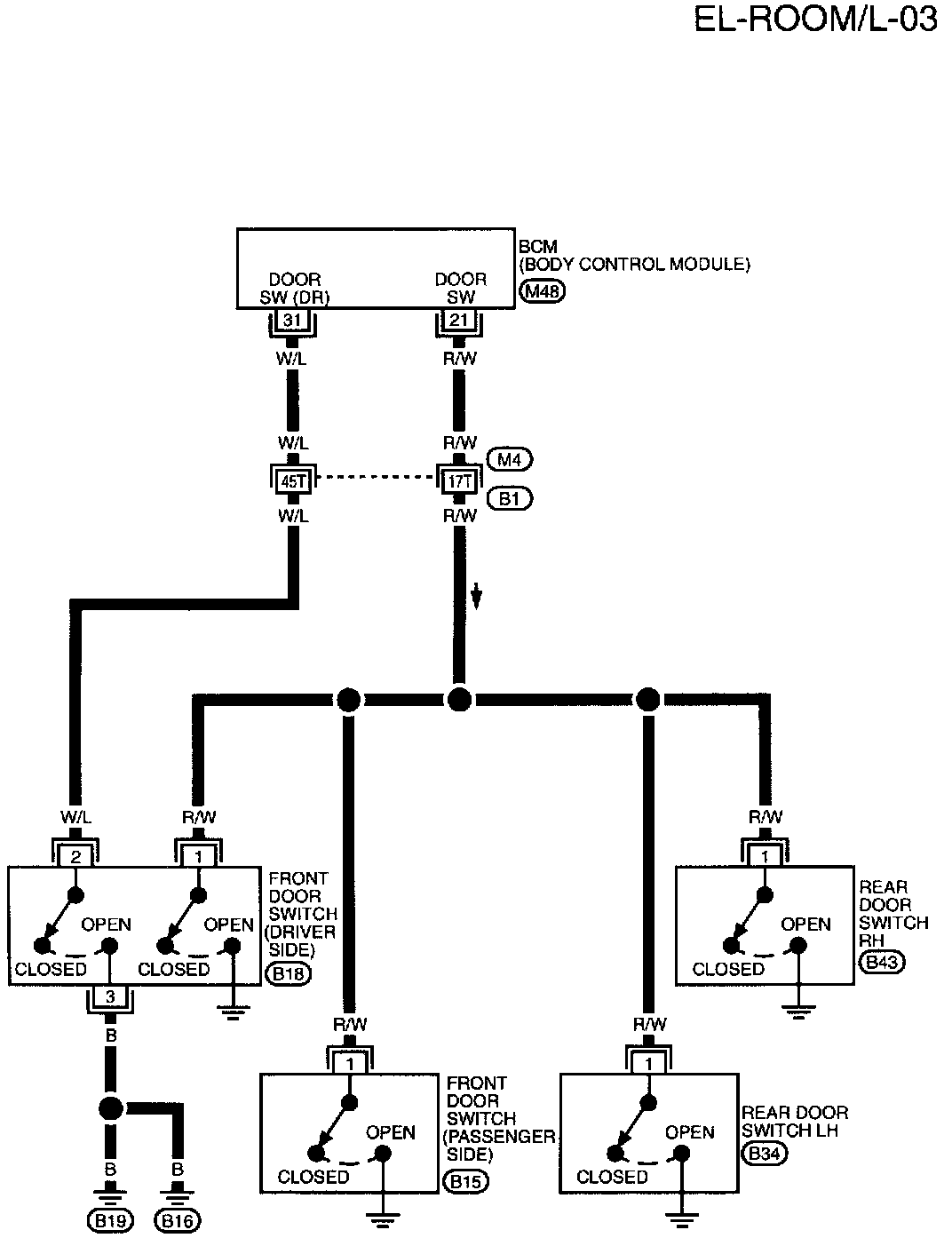

EL-ROOM/L-03 Interior Lamp Control (Part 3 Of 3):
