Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
1996
>>
I30 V6-2988cc 3.0L DOHC (VQ30DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Voltage Signal
Voltage Signal

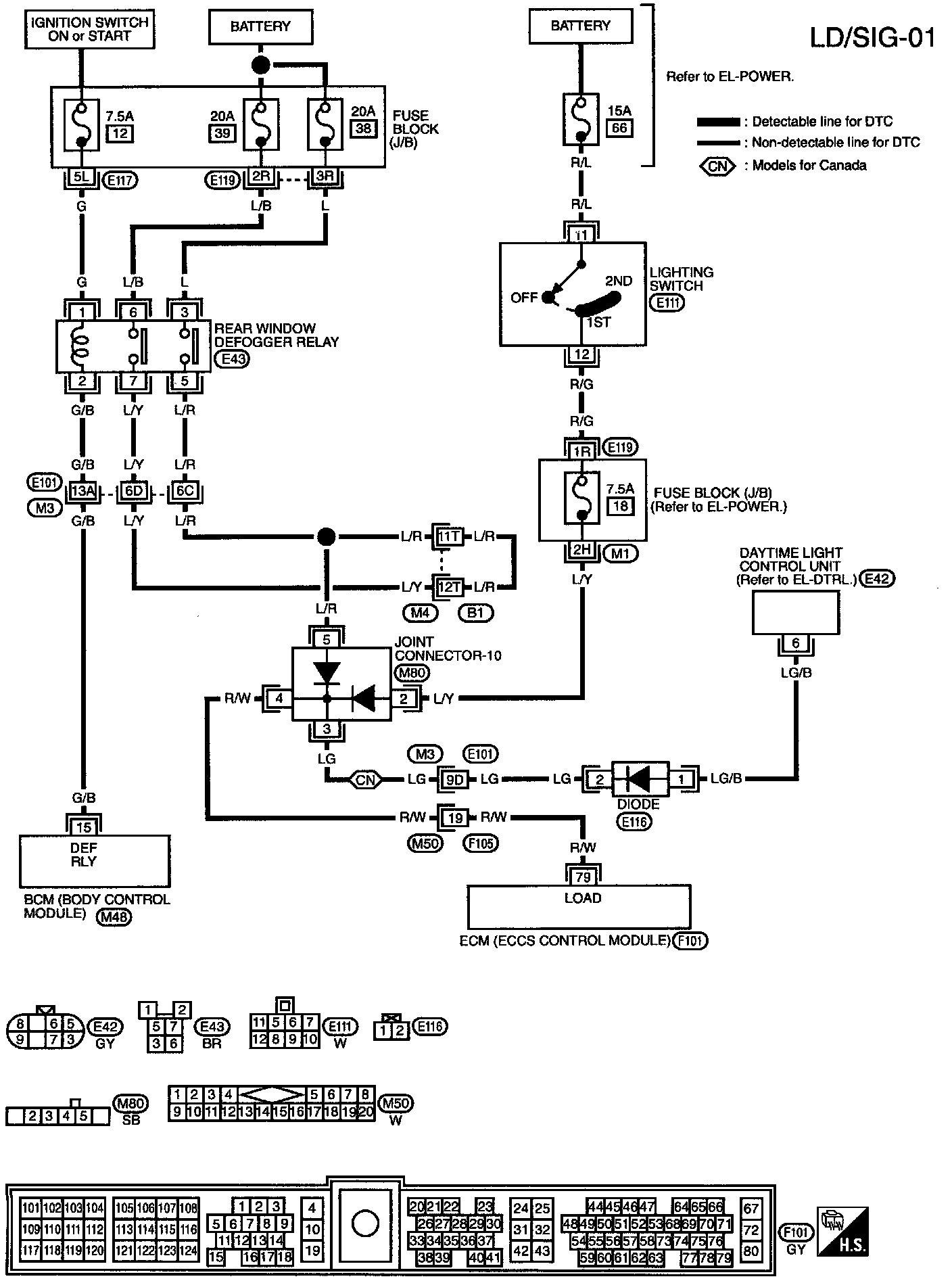

WIRING DIAGRAM
