Tail Lamp
Tail Lamp

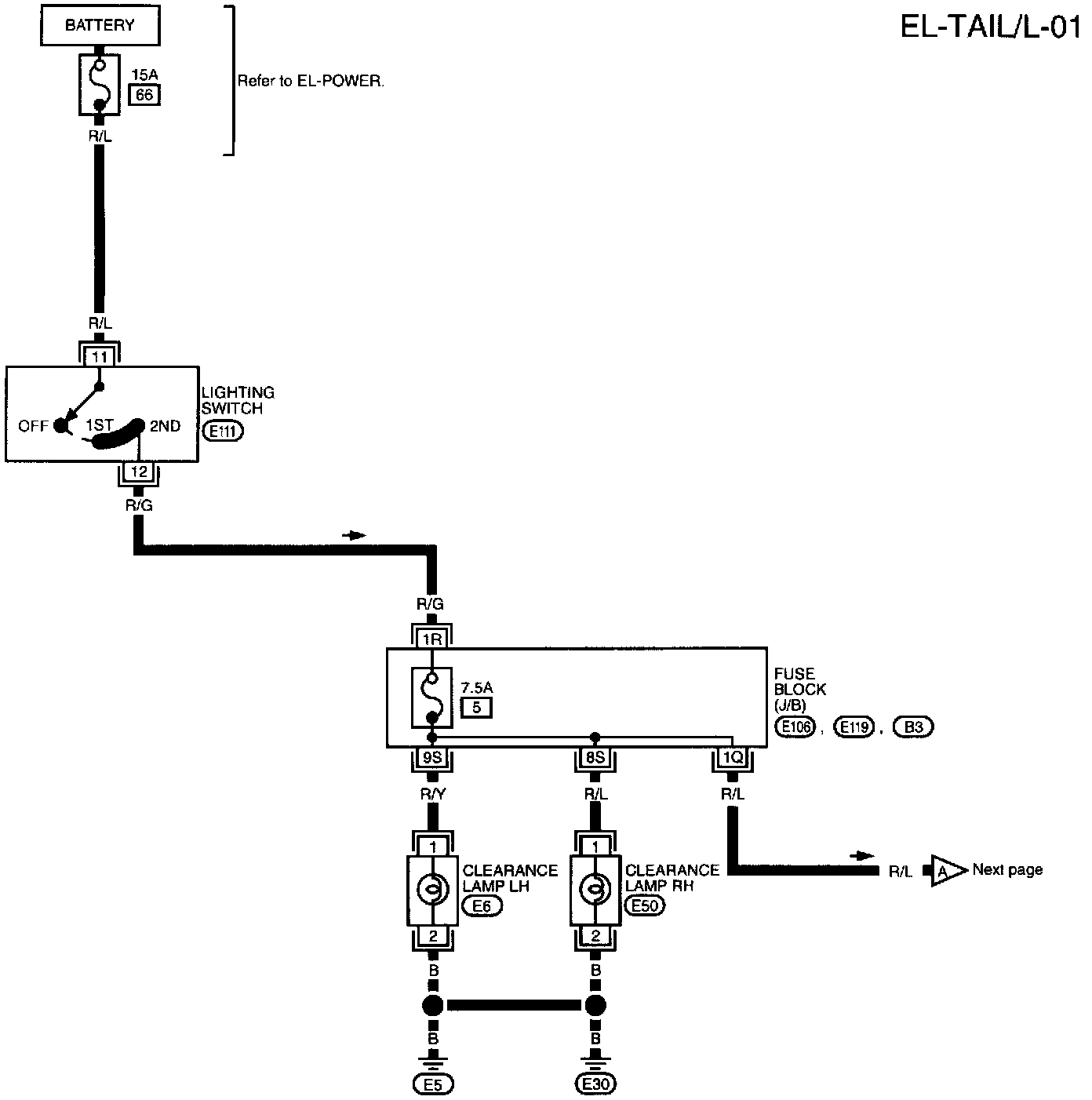

EL-TAIL/L-01 Clearance, License And Tail Lamps (Part 1 Of 2):

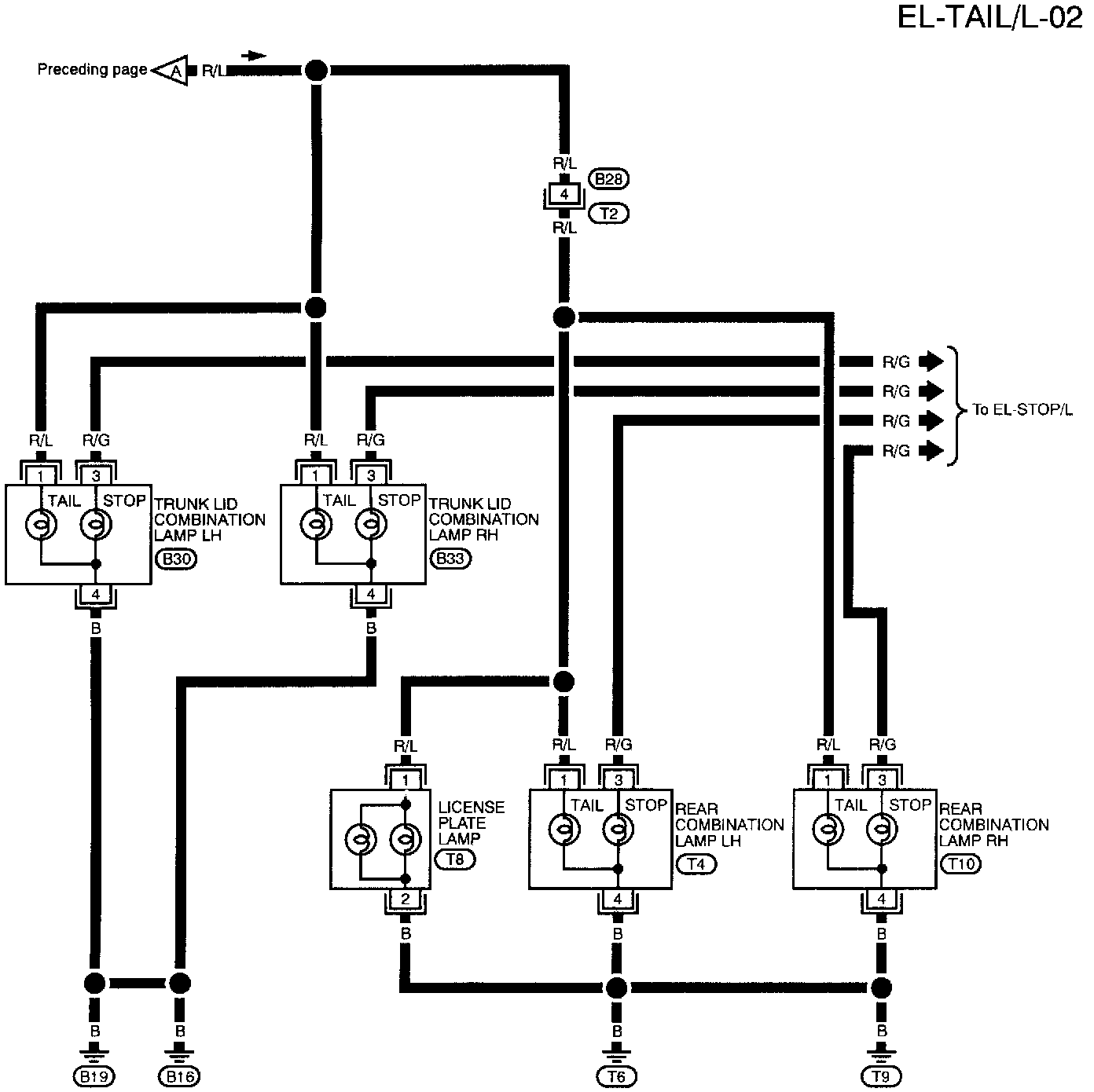

EL-TAIL/L-02 Clearance, License And Tail Lamps (Part 2 Of 2):
