Home >> Infiniti >> 1996 >> I30 V6-2988cc 3.0L DOHC (VQ30DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Transmission Control Systems >> Automatic Transmission Schematic

Automatic Transmission Schematic

Circuit Diagram For Quick Pinpoint Check:

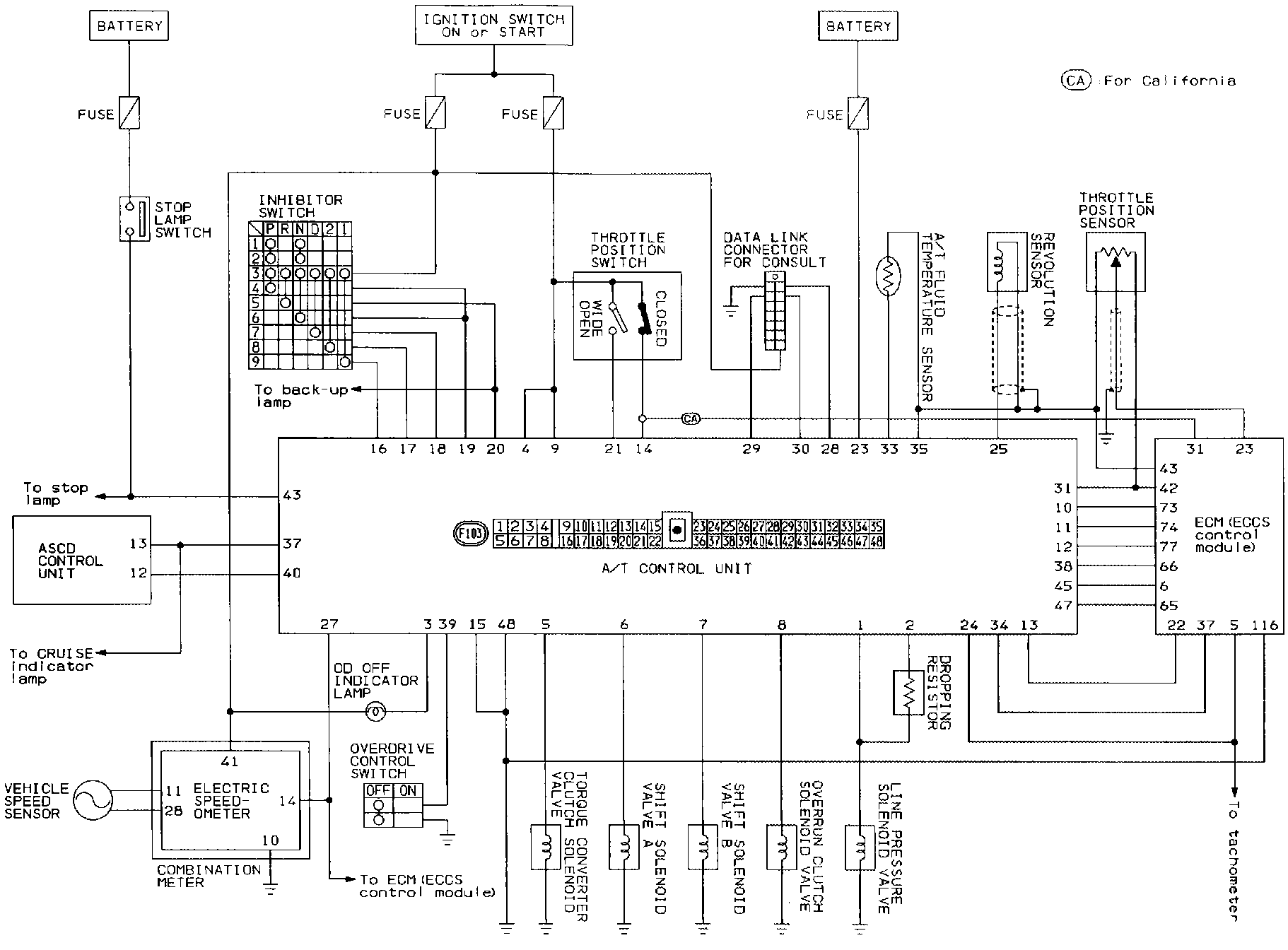

CIRCUIT DIAGRAM FOR QUICK PINPOINT CHECK
