Cooling System: Testing and Inspection

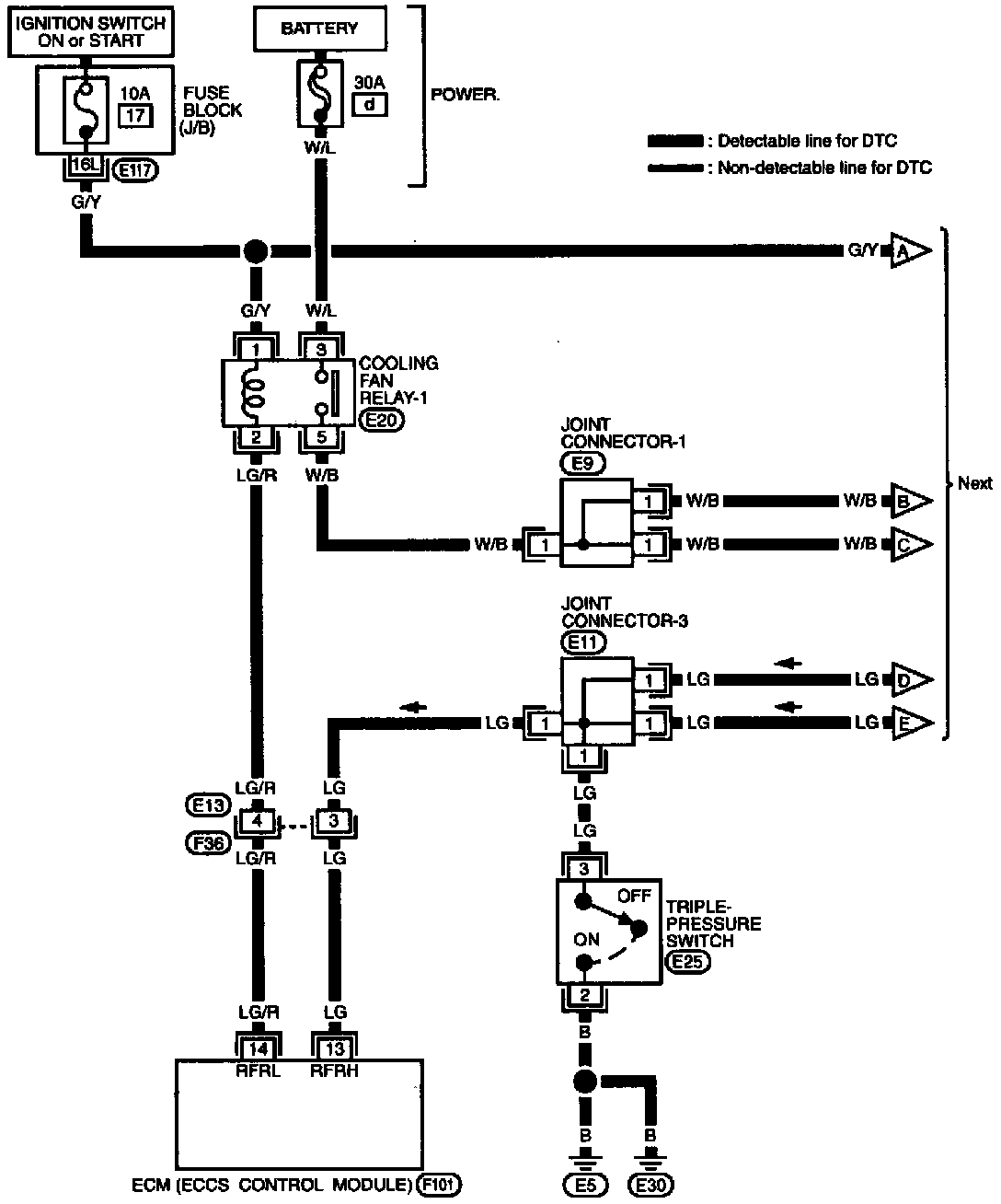

Fig. 5 Cooling Fan Wiring Diagram (part 1 Of 2):

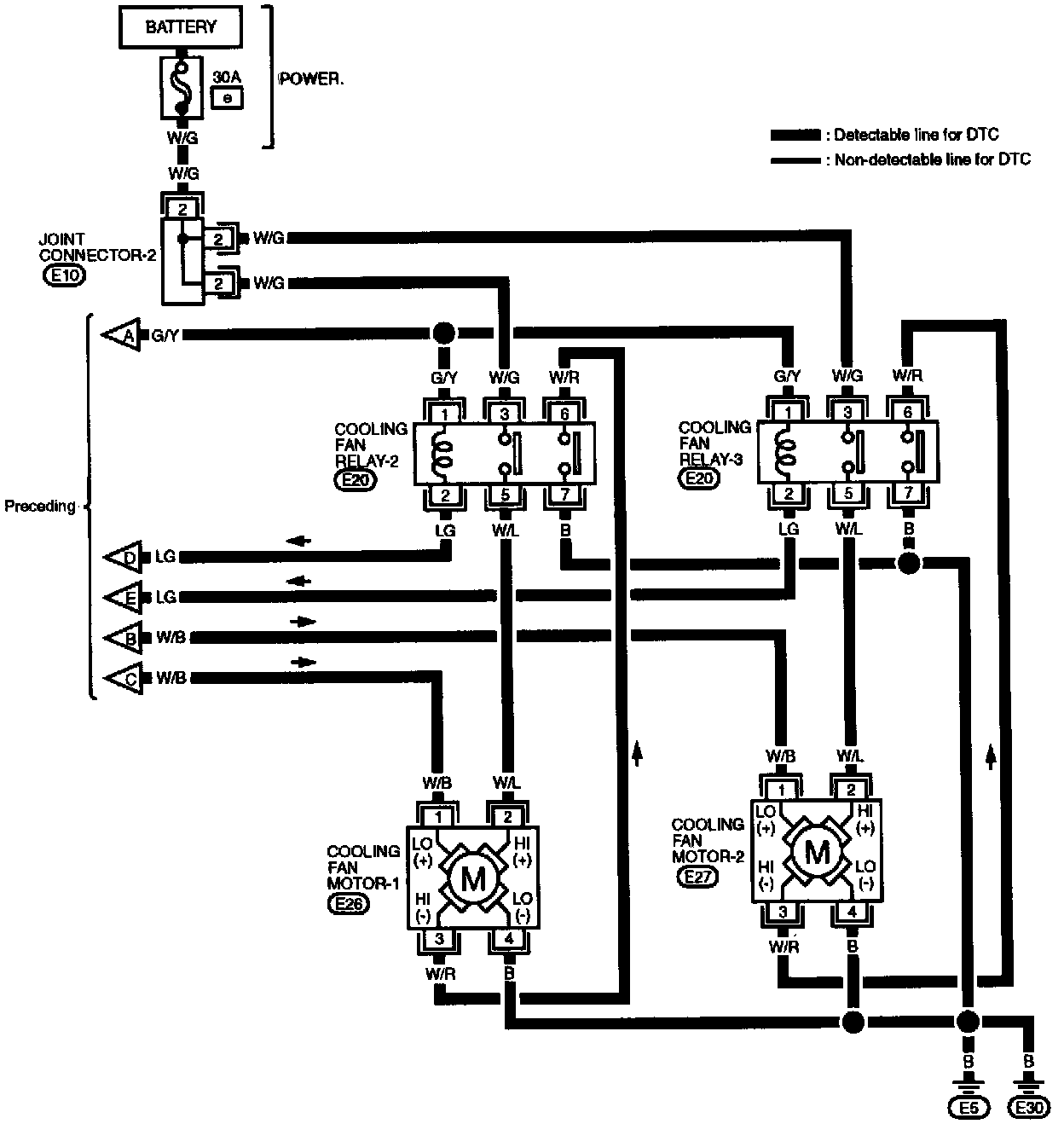

Fig. 5 Cooling Fan Wiring Diagram (part 2 Of 2):

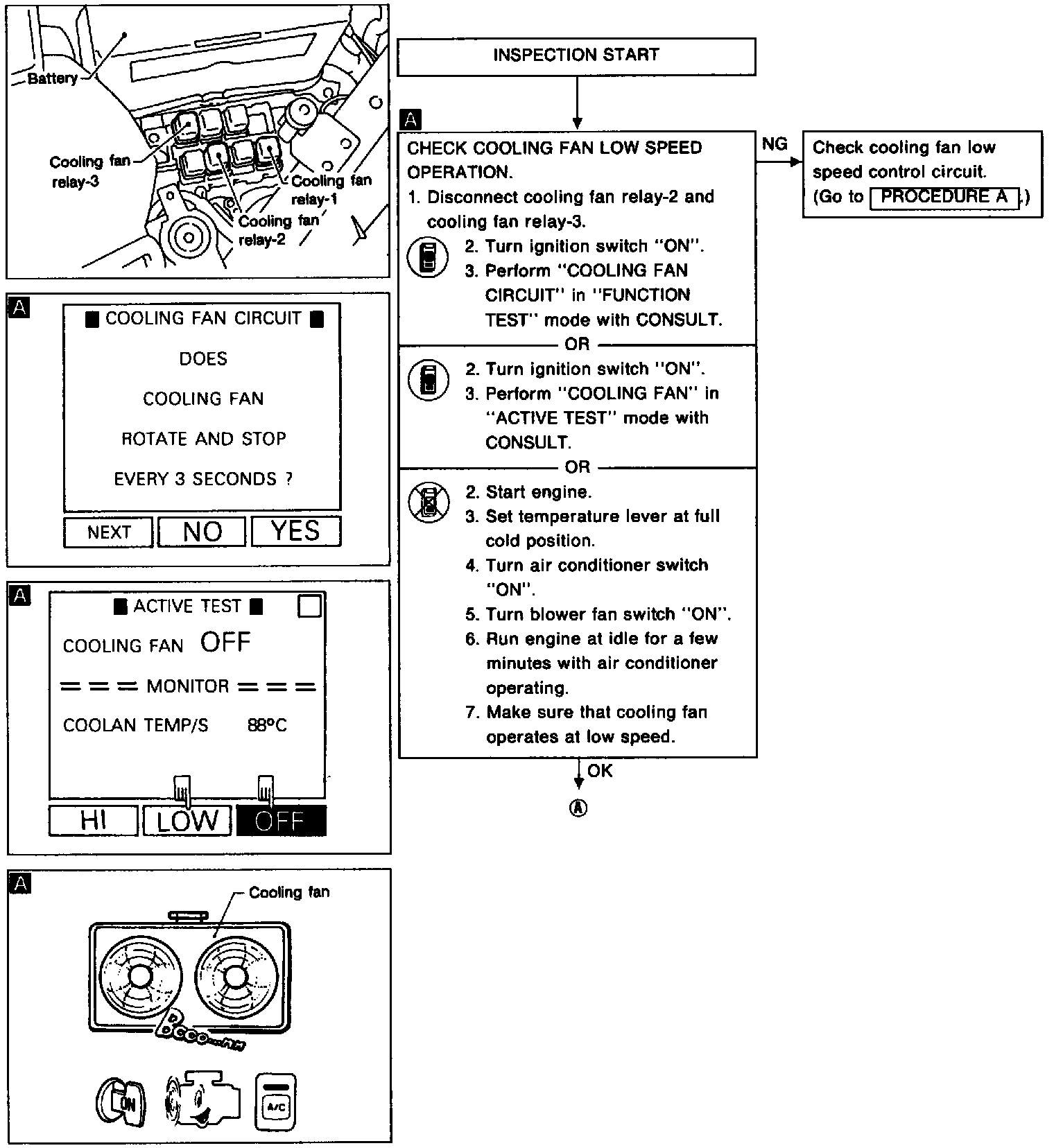

Fig. 6 Troubleshooting Cooling Fan (part 1 Of 6):

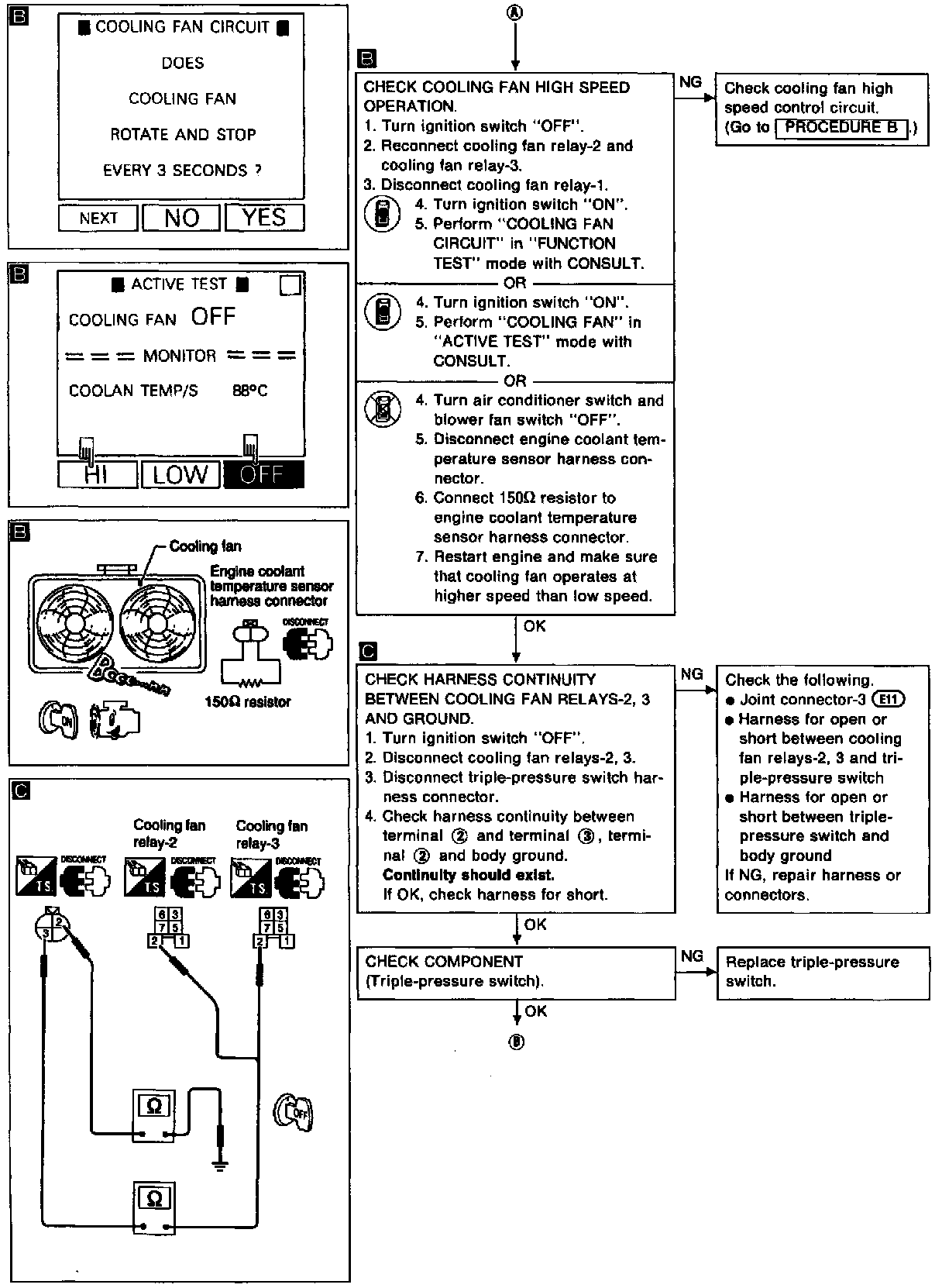

Fig. 6 Troubleshooting Cooling Fan (part 2 Of 6):

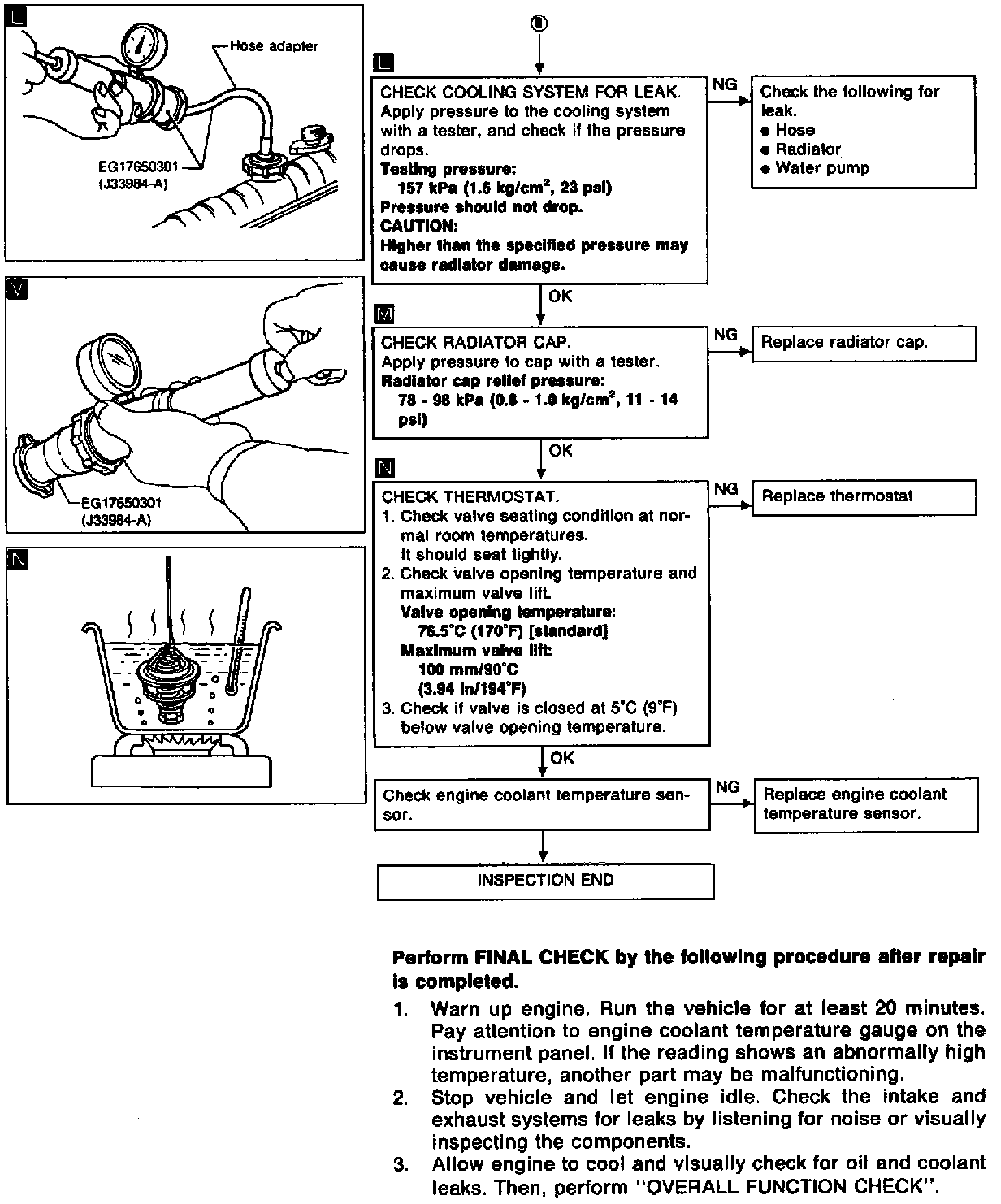

Fig. 6 Troubleshooting Cooling Fan (part 3 Of 6):

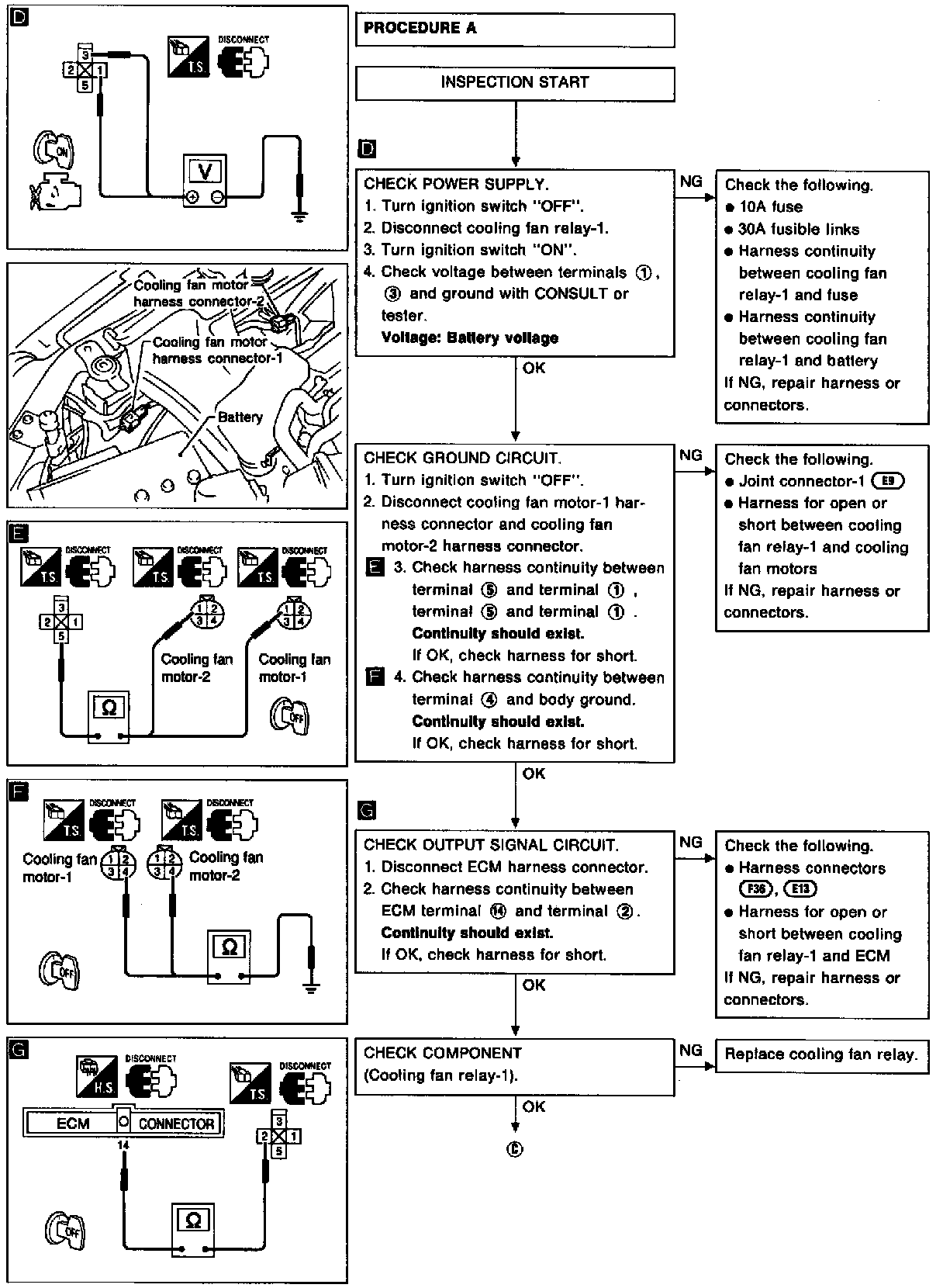

Fig. 6 Troubleshooting Cooling Fan (part 4 Of 6):

Fig. 6 Troubleshooting Cooling Fan (part 5 Of 6):

Fig. 6 Troubleshooting Cooling Fan (part 6 Of 6):

When troubleshooting the cooling fan system, refer to Fig. 5 for wiring diagrams and Fig. 6 for troubleshooting procedures.
