Instrument Cluster / Carrier: Testing and Inspection

Trouble Diagnoses:

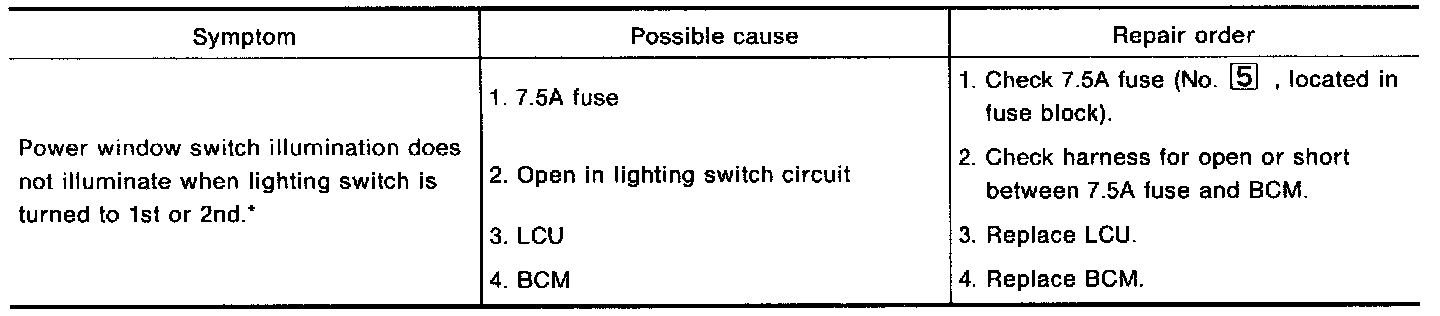

Perform "IVMS Communication Diagnosis" and "Power Supply and Ground Circuit Check" before starting with the following image.

*: CONSULT (data monitor and/or active test) may also be used to confirm the cause of malfunction.
