Daytime Running Lamp: Testing and Inspection

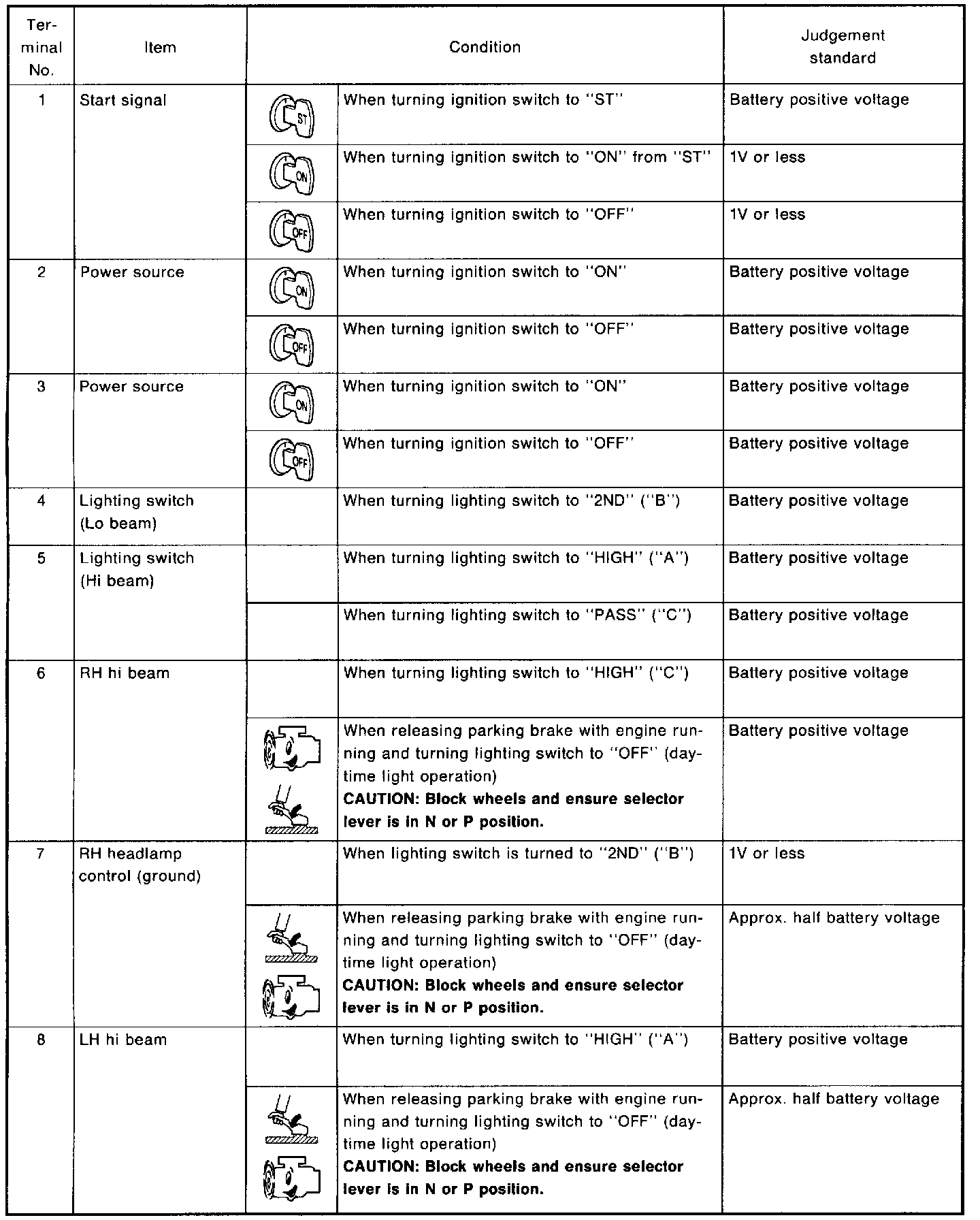

Daytime Light Control Unit Inspection Table (Part 1 Of 2):

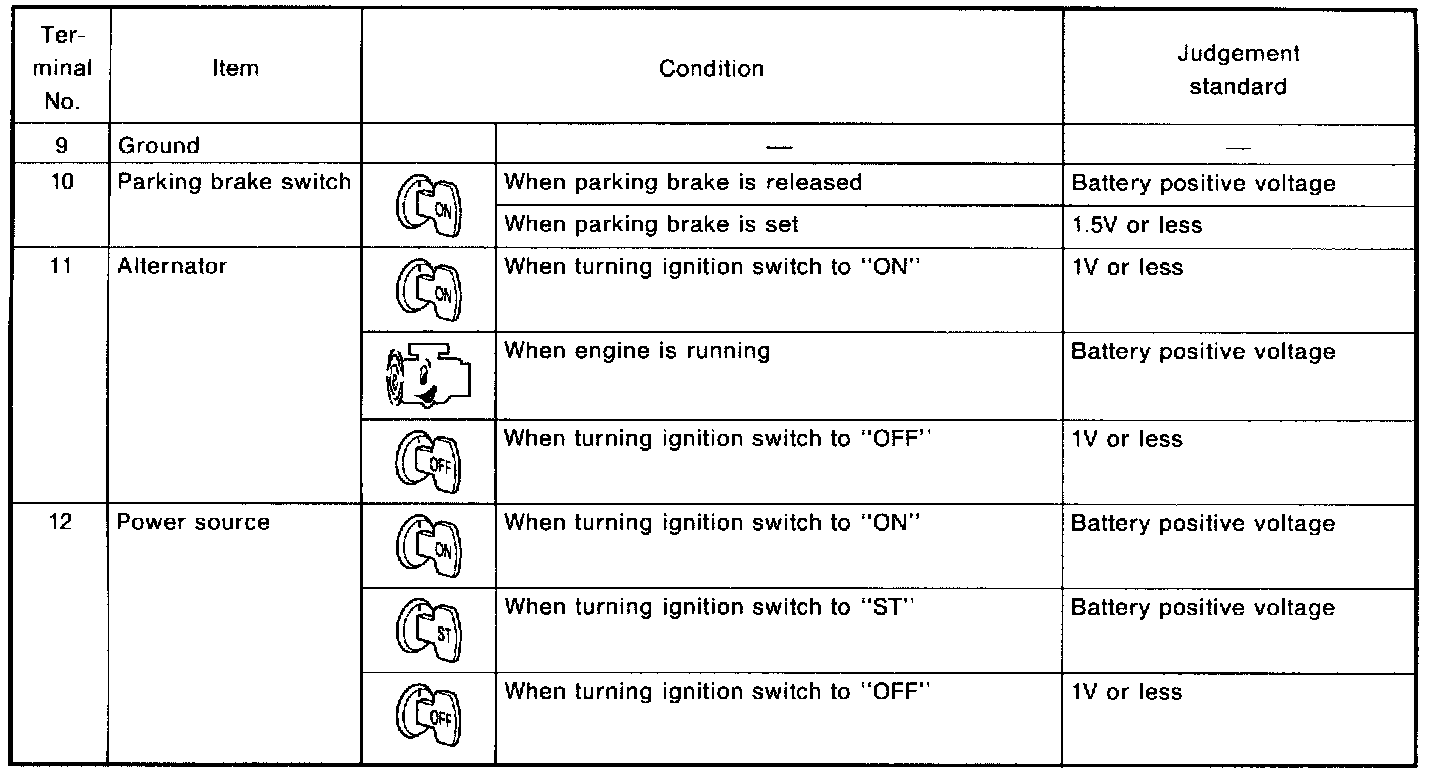

Daytime Light Control Unit Inspection Table (Part 2 Of 2):

Data are reference values.
