Scan Tool Testing and Procedures

NOTICE:
1. The CONSULT electrically displays shift timing and look-up timing (that is, operation timing of each solenoid).
Check for time difference between actual shift timing and the CONSULT display. If the difference is noticeable, mechanical parts (except solenoids, sensors, etc.) may be malfunctioning. Check mechanical parts using applicable diagnostic procedures.
2. Shift schedule (which implies gear position) displayed on CONSULT and that indicated in Service Manual may differ slightly. This occurs because of the following reasons:
- Actual shift schedule has more or less tolerance or allowance,
- Shift schedule indicated in Service Manual reters to the point where shifts start, and
- Gear position displayed on CONSULT indicates the point where shifts are completed.
3. Shift solenoid valve "A" or "B" is displayed on CONSULT at the start of shifting. Gear position is displayed upon completion of shifting (which is computed by A/T control unit).
4. Additional CONSULT information can be found in the Operation Manual supplied with the CONSULT unit.

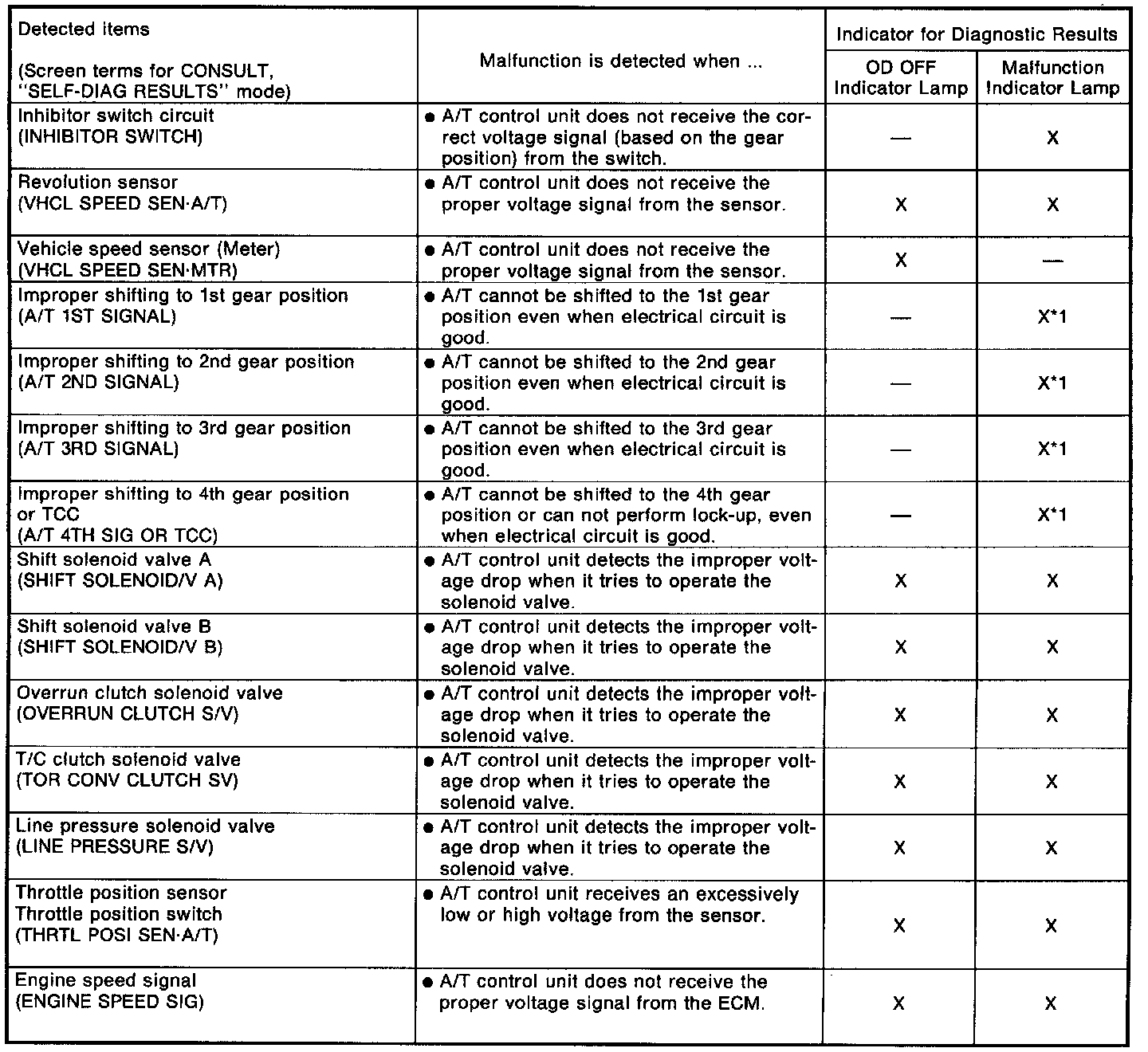

SELF-DIAGNOSTIC RESULT TEST MODE

X : Applicable
- : Not applicable
*1 : Malfunctions will not be detected unless self-diagnostic results indicated by OD OFF indicator lamp are in No Failure condition.







DATA MONITOR DIAGNOSTIC TEST MODE







DATA ANALYSIS
