Removal

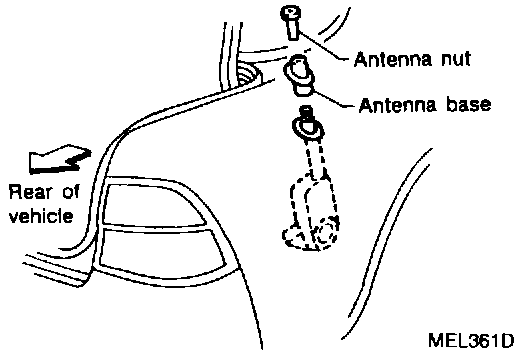

Antenna Rod Removal:

1. Remove antenna nut and antenna base.

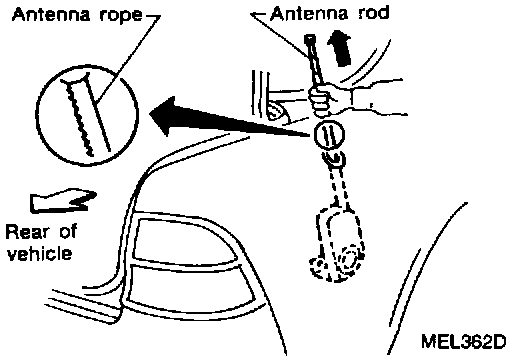

Antenna Rod Removal:

2. Withdraw antenna rod while raising it by operating antenna motor.
