CONSULT-II Inspection Procedure

1. Turn ignition switch "OFF".
2. Connect "CONSULT" to the data link connector.

3. Turn ignition switch "ON".
4. turn ON ASCD main switch.
5. Touch "START" (on CONSULT display)

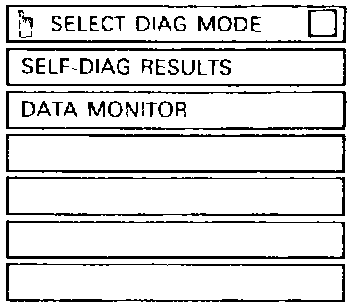

6 Touch ASCD.

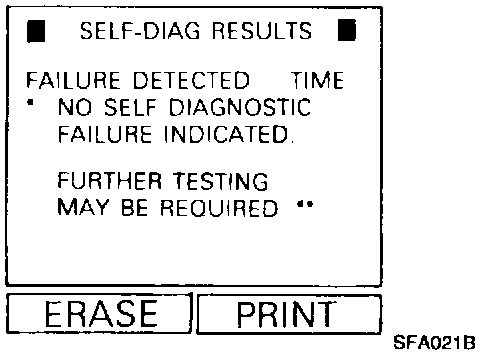

7 Touch SELF-DIAG RESULTS.

^ Self diagnostic results are shown on display.

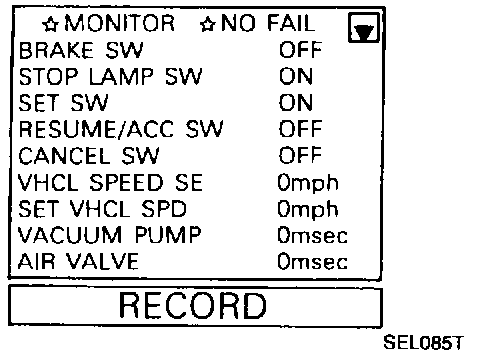

8. Touch DATA MONITOR

^ Touch START.
^ Data monitor results are shown on display.
