EL-AUDIO
EL-AUDIO
EL-AUDIO-01 Audio (Part 1 Of 3):

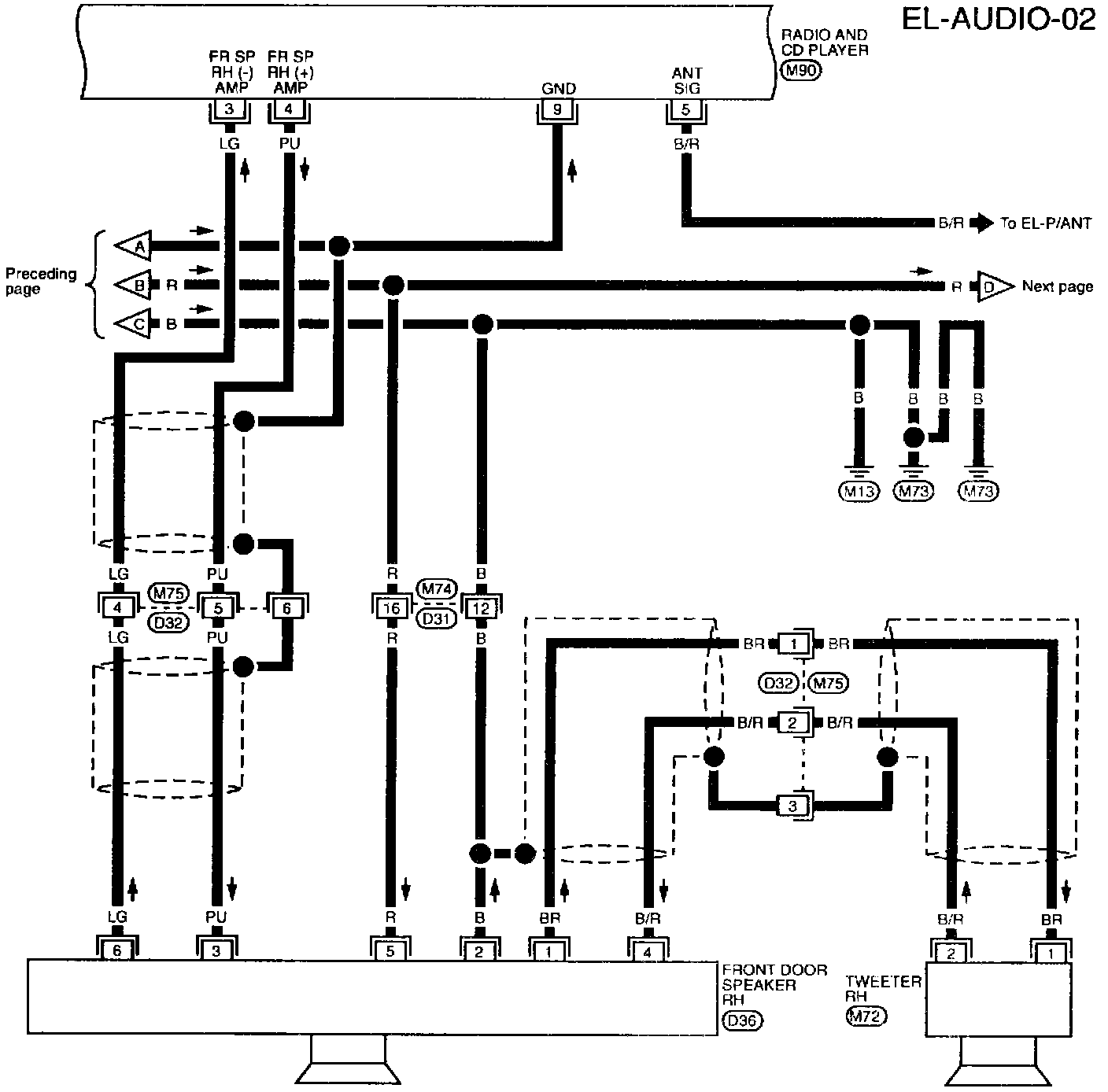

EL-AUDIO-02 Audio (Part 2 Of 3):
EL-AUDIO-03 Audio (Part 3 Of 3):
