EL-DTRL (For Canada)
EL-DTRL (For Canada)

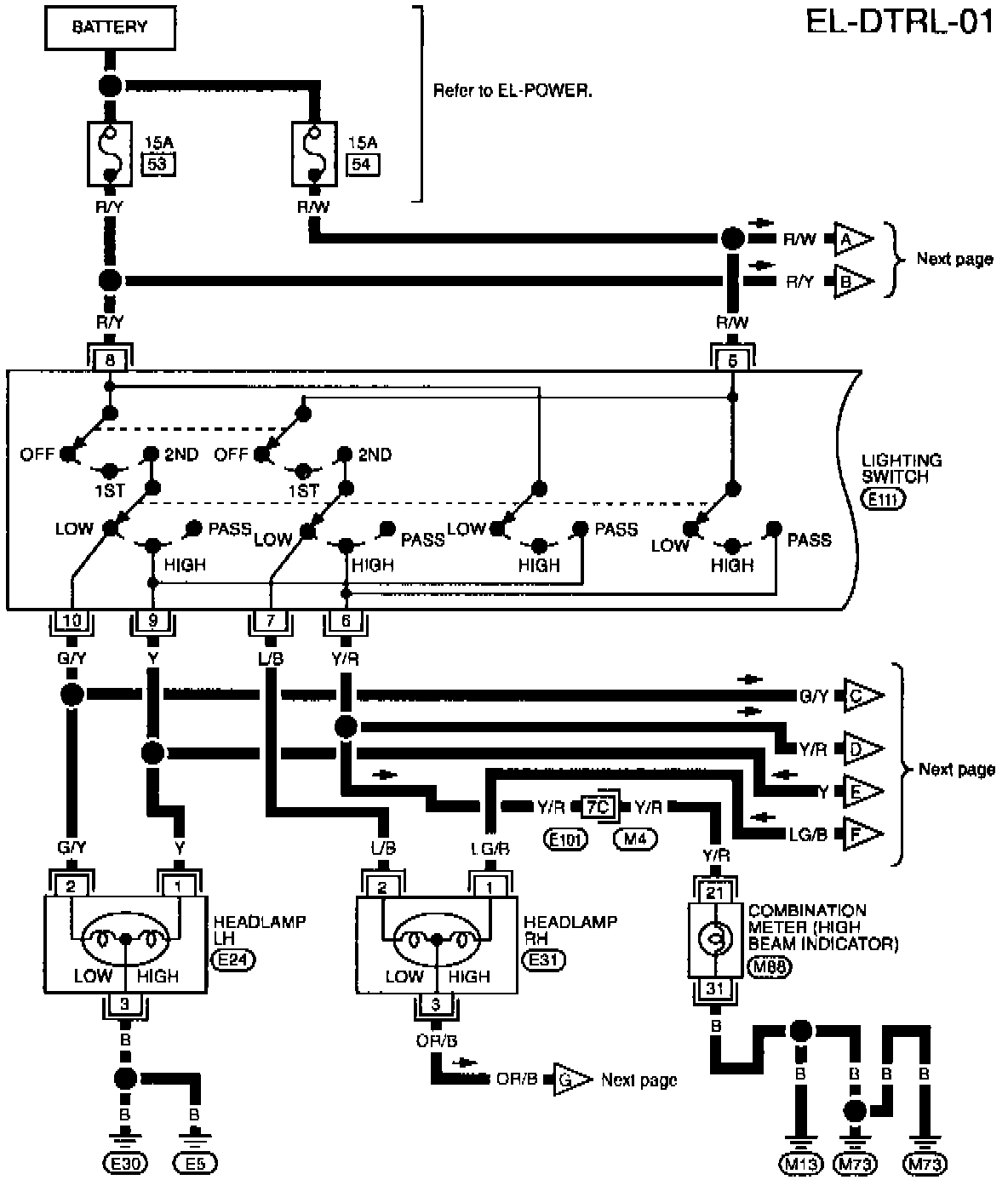

EL-DTRL-01 Daytime Running Light System (Part 1 Of 3):

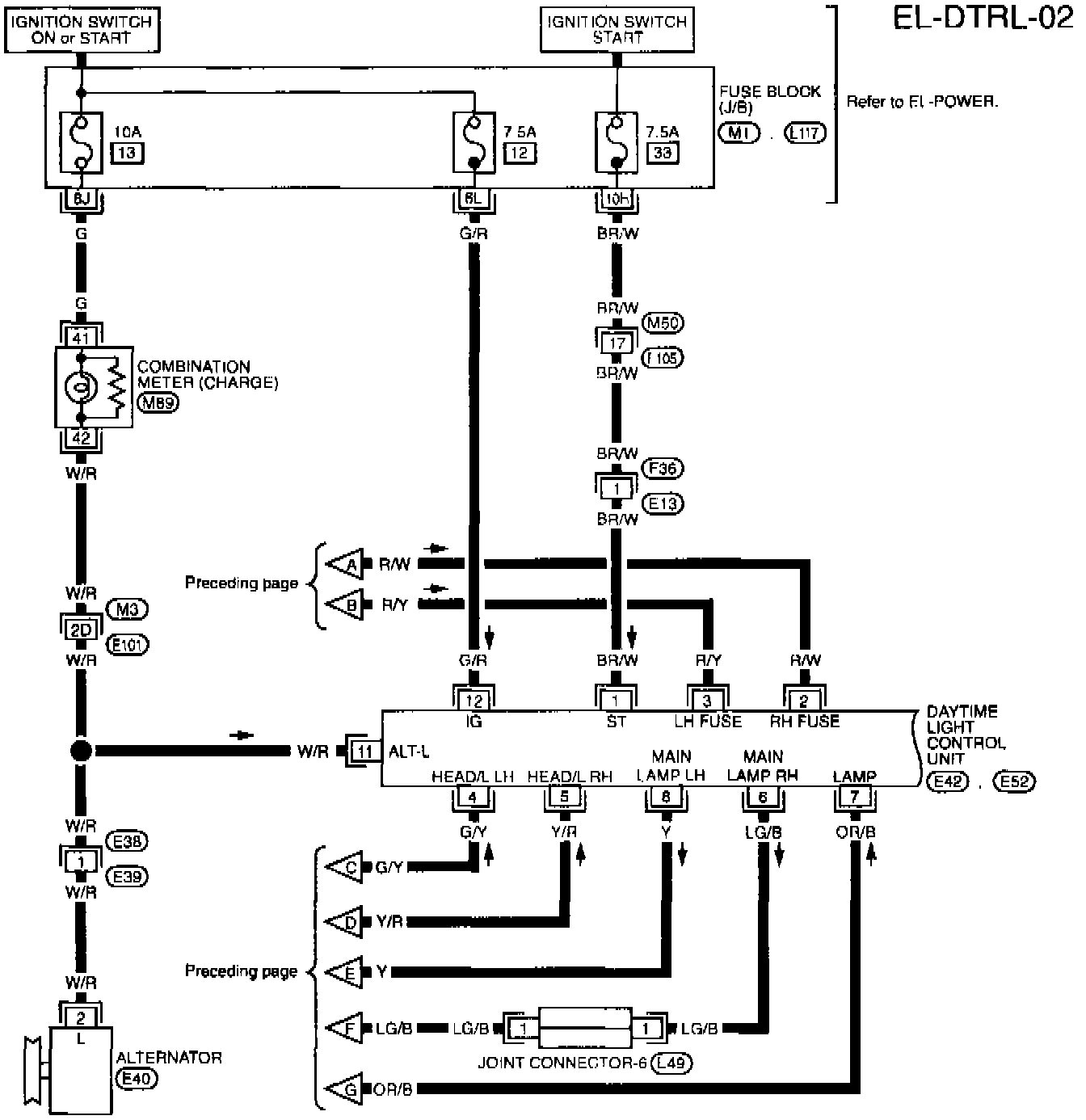

EL-DTRL-02 Daytime Running Light System (Part 2 Of 3):

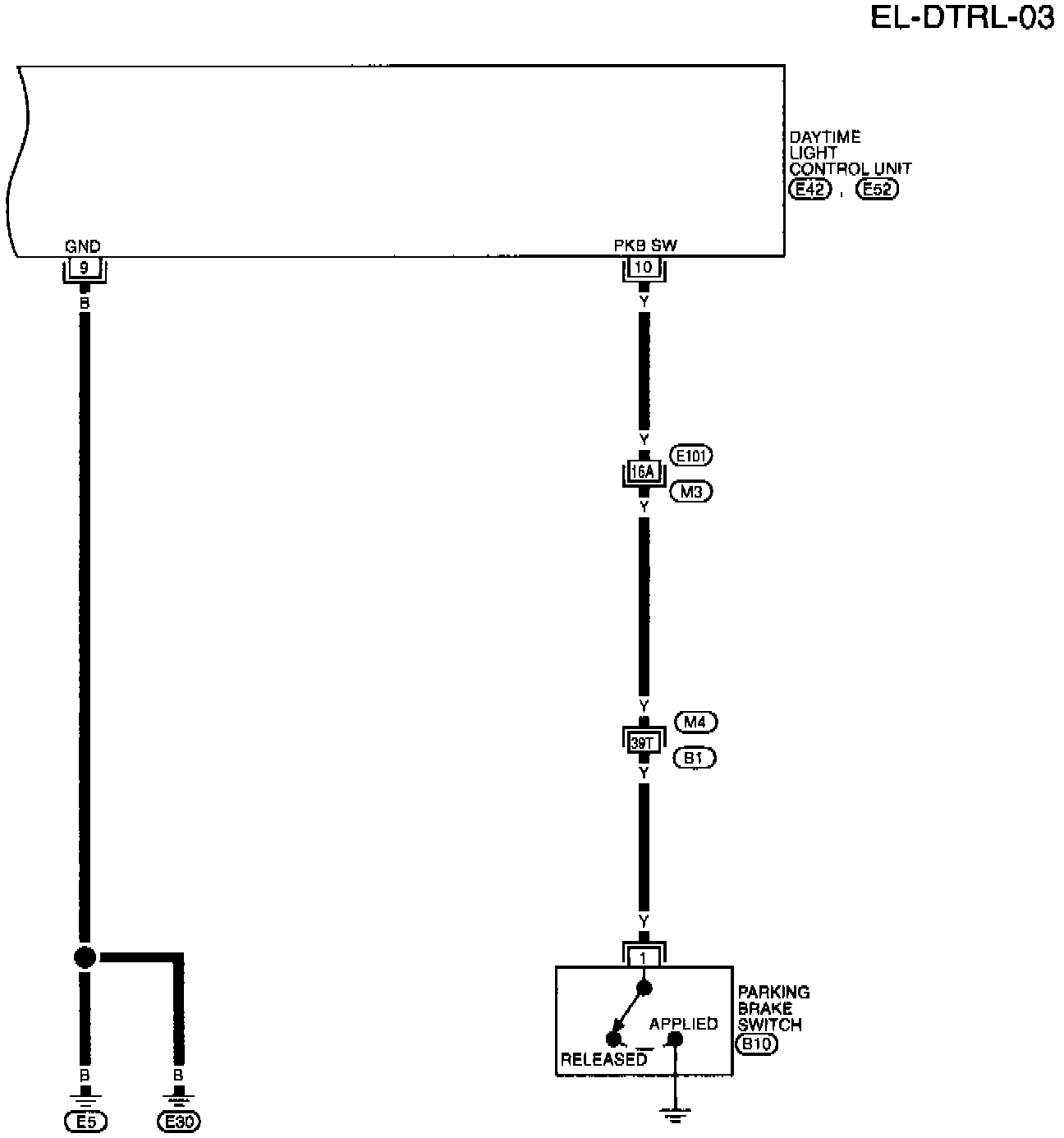

EL-DTRL-03 Daytime Running Light System (Part 3 Of 3):
